Pentair INTELLIPOOL AUTOMATION Montage- Und Bedienungsanleitung Seite 13

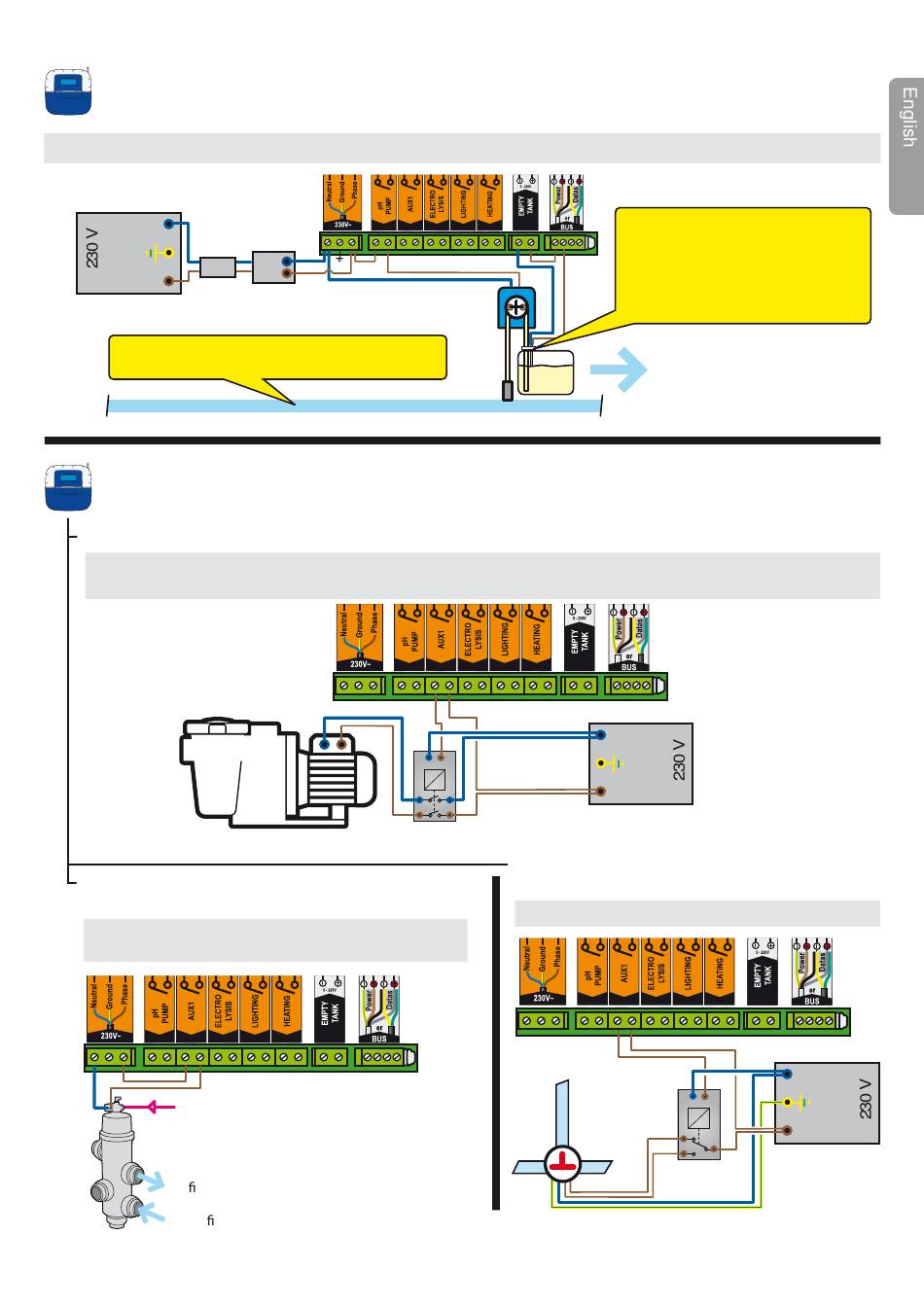

pH pump connection on Control center
1 - Connect the pH pump and the pH corrector level sensor as desbrided below.
NEUTRAL (N)
GROUND
30 mA
PHASE (L)
The injection of pH correction occurs after the filtration, after disinfec-
tion, after heating and after Probes unit.
AUX1 connection (fountain, swim-jet, water fall, garden lighting...)
Accessory water pump connection on Control center
1 - Connect the second water pump as desbrided bellow on AUX1 output. Usable for a fountain, a swim jet, water fall...
Pneumatic push/pull valve (for automatic back wash)
connection on Control center
1 - Connect the air push/pull valve as desbrided bellow on AUX1 output.
3 bar mini
To lter
From lter
10 A
A1
pH -
pH+
NEUTRAL (N)
A2
PHASE (L)
3 way valve (for animation)
connection on Control center
1 - Connect the 3 way valve as desbrided bellow on AUX1 output.
Liquid level switch need to be a normaly open model.
(switch closed = tank empty).
If the installation comport a chlorine pump and a pH
pump, it is necessary to connect the two tank level
sensor in series.
EARTH
NEUTRAL (N)
A1 A2
PHASE (L)
EARTH
11
