screen or metal housing must be provided. The
running of wiring parallel to the mains supply
should be avoided.
•
Contactor coils must be linked with spark sup-
pression.
Power supply:
24 VDC -20% ... +20%
Power consumption: < 3 Watt
4.1 Connection type (cable length max. 100m)
12 pole plug pin:
Pin
Designation
A
SSI Data-
B
SSI Data+
C
SSI Cycle-
D
SSI Cycle+
E
+24VDC
F
sinus
G
RS485 DÜA
H
RS485 DÜB
J
GND
K
N.C.
L
zero-setting entry
M
cosinus

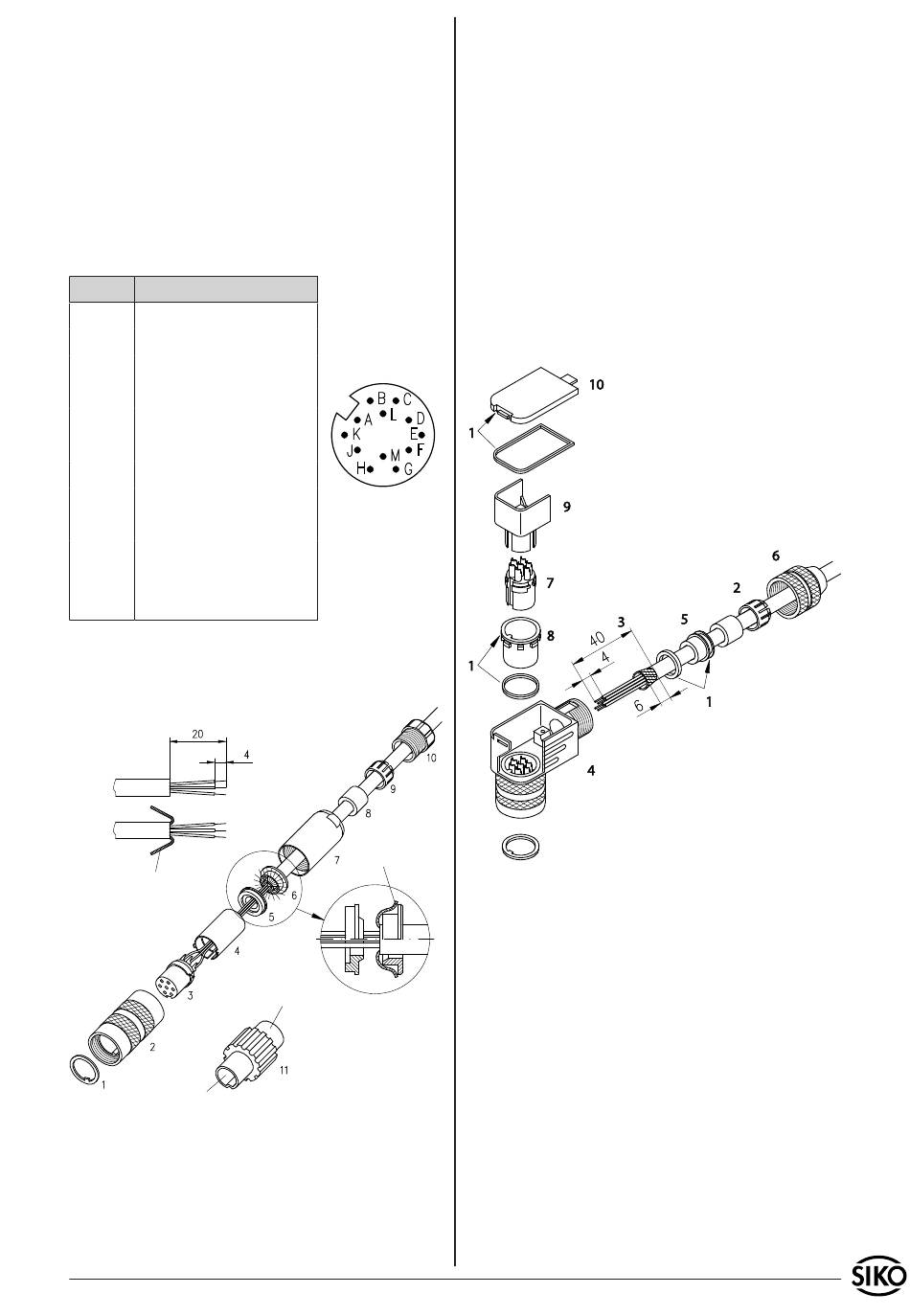

4.2 Connector
12-pole mating connector straight
Available from SIKO as accessory art. no. 76572.
screening
pin
1.
Slip parts 6 to 10 over outer cable.
2.
Strip cable.
3.
Turn down screening.
4.
Push part 5 onto ferrules.
5.
Solder stranded wires at part 3 (follow connec-
tion diagram).
MSA511+MBA511
Datum 15.02.2010
viewing side =
plug-in side
screening
socket
6.
Open spacer (part 4) and put it over ferrules,
squeeze and push it onto part 3. Slot and keyway
of parts 3 and 4 must align.
7.
Press parts 6 and 5 together; cut prodruding
screening.
8.
Push parts 2 and 7 together and screw
9.
part 11 using appropriate tool.
10.
Push part 8 into part 9 and slide both parts
into part 7.
11.
Screw parts 10 and 7 together.
12.
Push part 1 into part 2.
12-pole mating connector angle
Available from SIKO as accessory art. no. 79666.
Please proceed as follows:
1.
Mount seals (3x).
2.
Stringing cable parts.
3.
Dismantle cable and shield.
4.
Thread-up wires through the housing.
5.
Mount shielding ring and pinch ring.
6.
Turn on the pressing screw very slightly.
7.
Solder wires on insert.
8.
Adjust the turnable shell inside the connector to
the required angular position (ensure position of
the stud) in steps of 90° (see chapter "Changing
the angle position").
9.
Set in insert and distance sleeve.
10.
Mount cover.
11.
Fix pressing screw (approx. 10-20 Nm).
Art.Nr. 81105
Änd. Stand 48/10
9
