13.

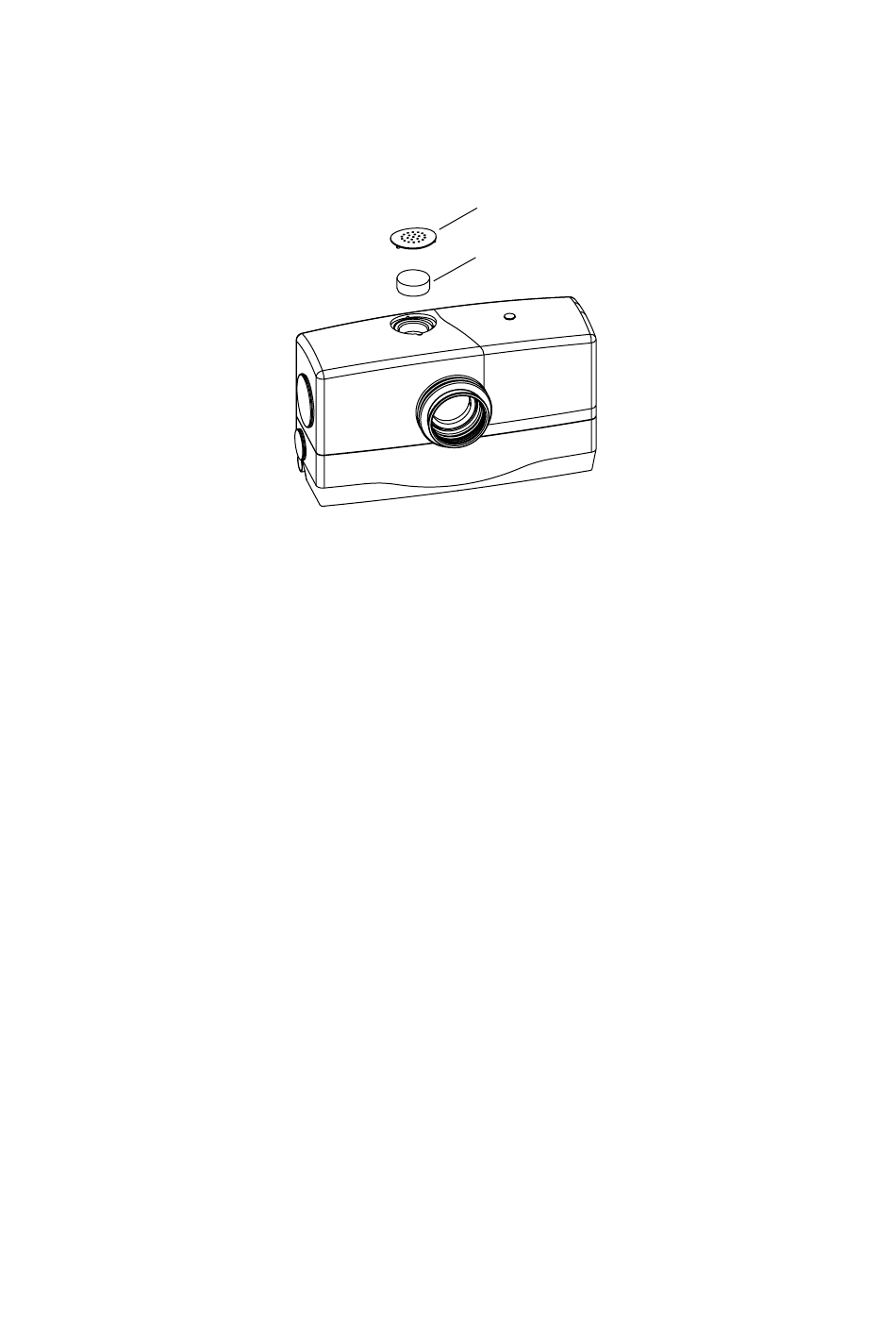

Changing the carbon filter

/
Prise up the filter cover (1) with a screwdriver and remove from tank.
/
Lift out carbon filter (2) and replace.
/
Refit filter cover by pressing into place
14.

ABS front wall installation kit

This kit is required for installation of the lifting system behind a front wall if ventilation via the roof
through an independent vent line is not possible/economical. It contains all required parts to install the
breather and vent with active charcoal filter on the front wall.
KBN: ABSVIS
NOTE:
The seal for the connection of the vent line to the tank is supplied as standard with the lifting unit (see
chapter 3).
1
2
Figure 10
1
43
