Exploded View - Conel FLOW CUT BOX Montage- Und Betriebsanleitung

42
12.

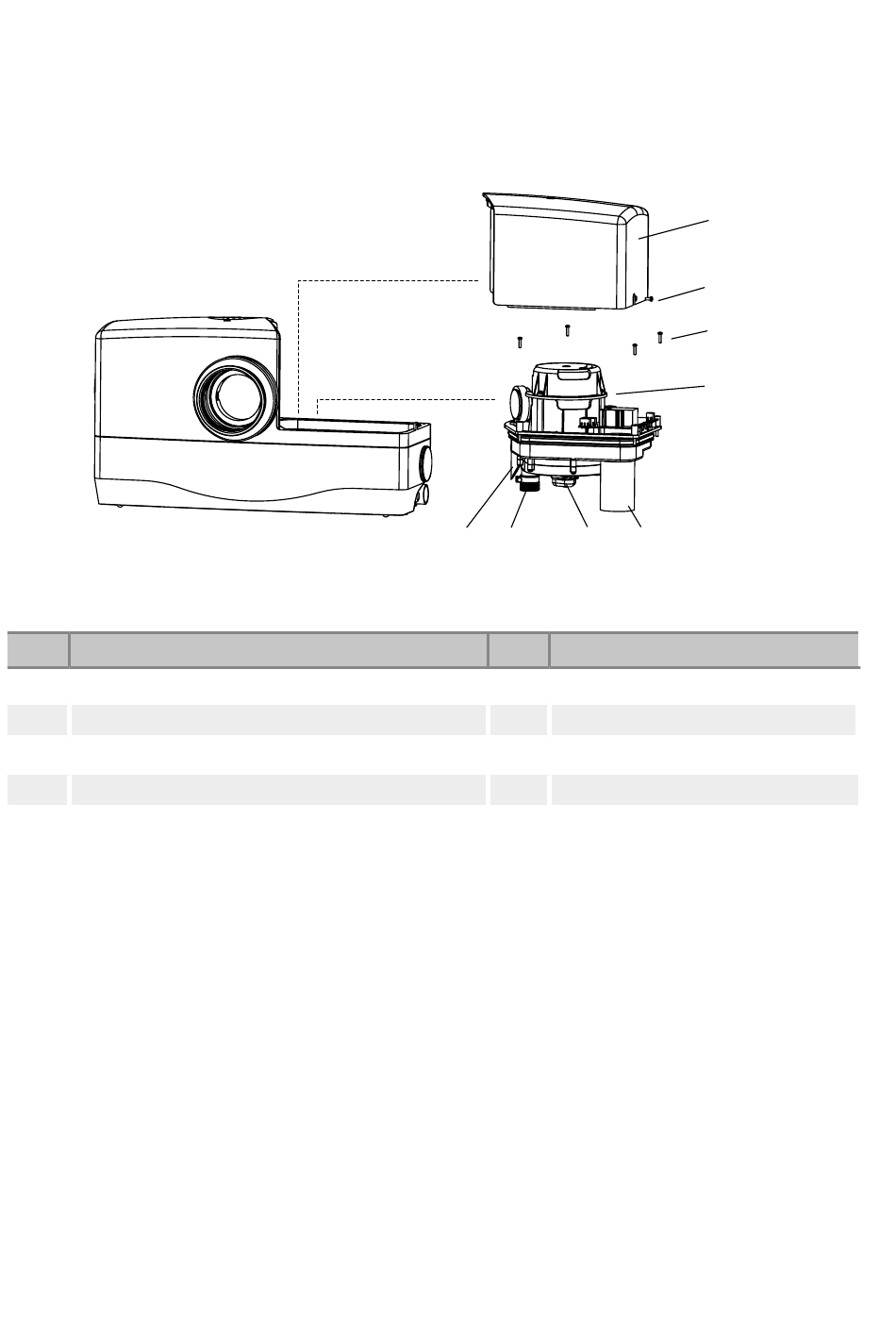

Exploded view

Pos Description
1
Cover
2
Cover securing screw
3
Motor/pumping unit securing screws
4
Motor/pumping unit
/
To take out the pumping unit for service, remove securing screw (2) and lift off cover (1).
/
Remove securing screws (3) and lift pumping unit (4) from tank (see fig. 9).
ATTENTION!
Never operate the lifting unit without the protective cover (1) securely fitted.
5 6
Figure 9
Pos Description
5
Level sensor
6
Discharge pipe
7 Shredding system
8 Capacitor housing
1
2
3
4
7 8
