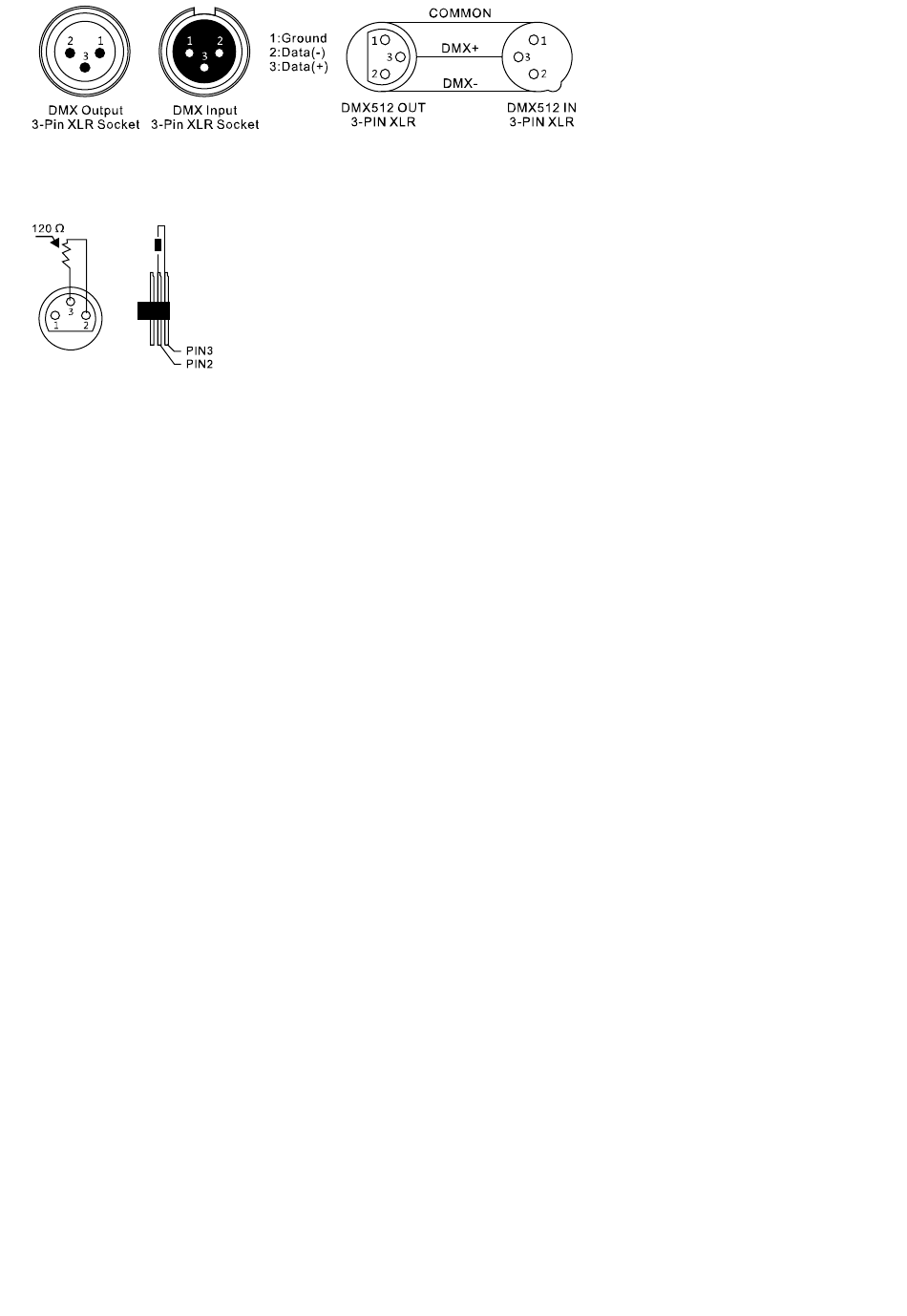

For installations with very long DMX cable paths or high electrical interference, such as in a discotheque, it is
recommended to use a DMX terminator. The DMX terminator is connected in an XLR connector as a 120 Ω
resistor between pins 2 and 3, which is plugged into the last output socket of the DMX line.

3.5 Connections in "Master / Slave" mode:

When you configure a group of devices in the "Master / Slave" mode, the first device controls the others and
allows an automatic or music-controlled and synchronized show. This feature is especially useful for starting a
show without great programming. Connect the DMX output of the master device to the DMX input of the first slave
device. Then, connect the DMX output of the first slave device to the DMX input of the second slave device, and
so on.

3.6 Stand-alone operation:

The "LEDarray58" can also be used in stand-alone mode without a DMX controller. Disconnect the "LEDarray58"
from the controller and call the preprogrammed program.
