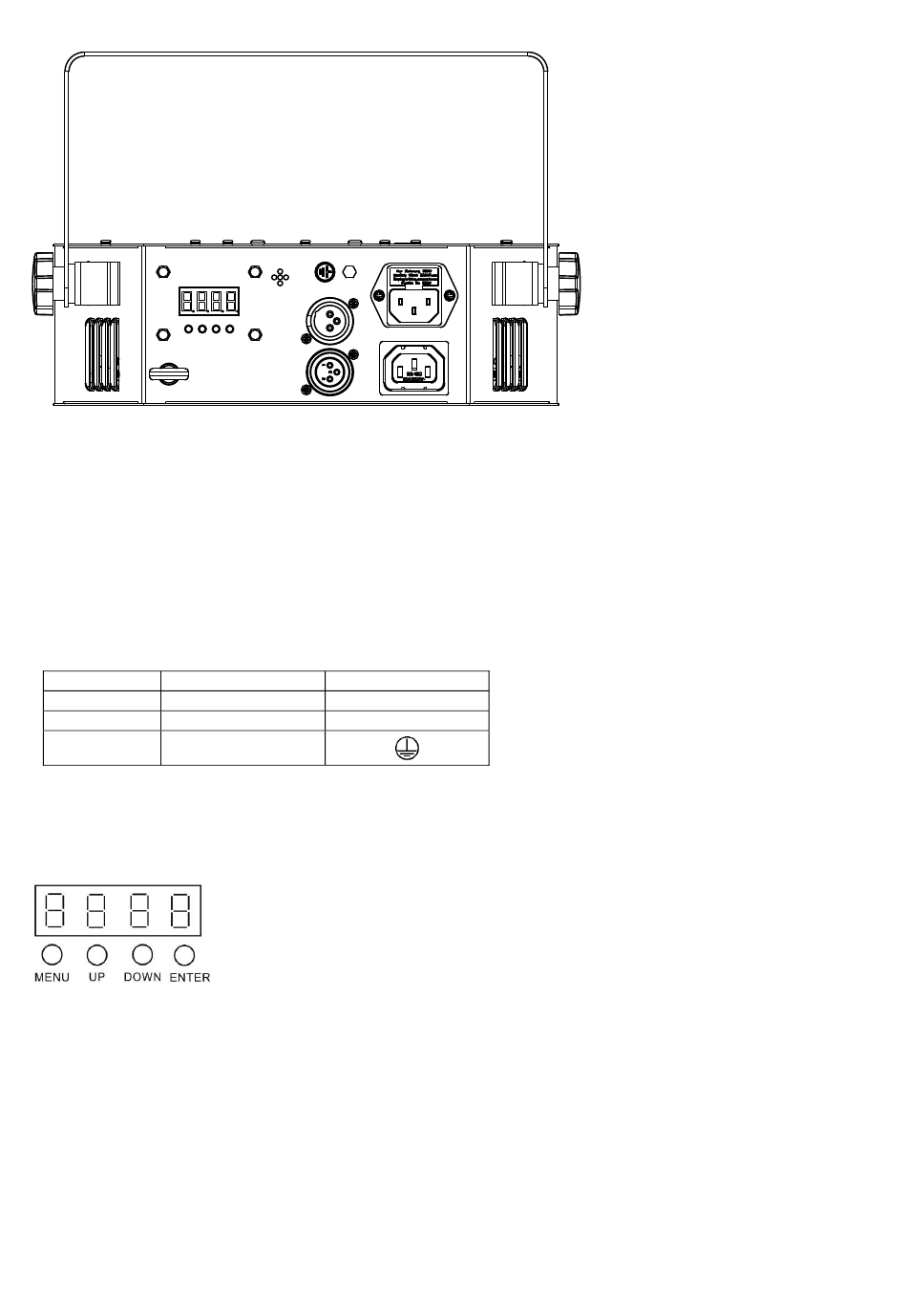

Picture. 1 (Backside):
6.
1. DMX Out: 3-pin female XLR connector for forwarding the DMX control signal.
2. DMX IN: 3-pin male XLR connector for connecting a DMX control unit (for example a DMX mixer).
3. POWER Out: IEC mains output socket.
4. POWER IN: IEC mains power input socket with fuse holder for F1A 250V fuse.
5. Built-in microphone: The built-in microphone is used to synchronize the show with the rhythm of the music.
7. On-Board Menu: Displays the operating mode and the value of individual functions.
8. Safety-eye: The device is to be secured with a suitable safety cable against dropping.
The assignment of the connection leads is as follows:
Line
Brown Outer conductor
Blue Neutral conductor
Yellow/Green
The protective conductor must be connected!

3.2 Operating modes and setting of the on-board menu:

MENU - To select the operating mode.
ENTER - Activates the setting process of a menu point or saves a setting.
UP - Increases the setting value.
DOWN - Decreases the setting value.
The "LEDArray58" has various operating modes, all of them can be set via the on-board menu (see fig.1
housing back). Always press "Menu" until the function to be set is reached. With "Enter" you get to the
individual, adjustable values. Then use "Up" and "Down" to set the desired values. These can be
confirmed with "Enter". Familiarize yourself with these settings in order to be able to operate the unit
optimally. You can set the following modes and functions:
5.
2.
7. 1.
Pin International
Protector
4.
3.
L
N
