COMPACT 1.4
EN

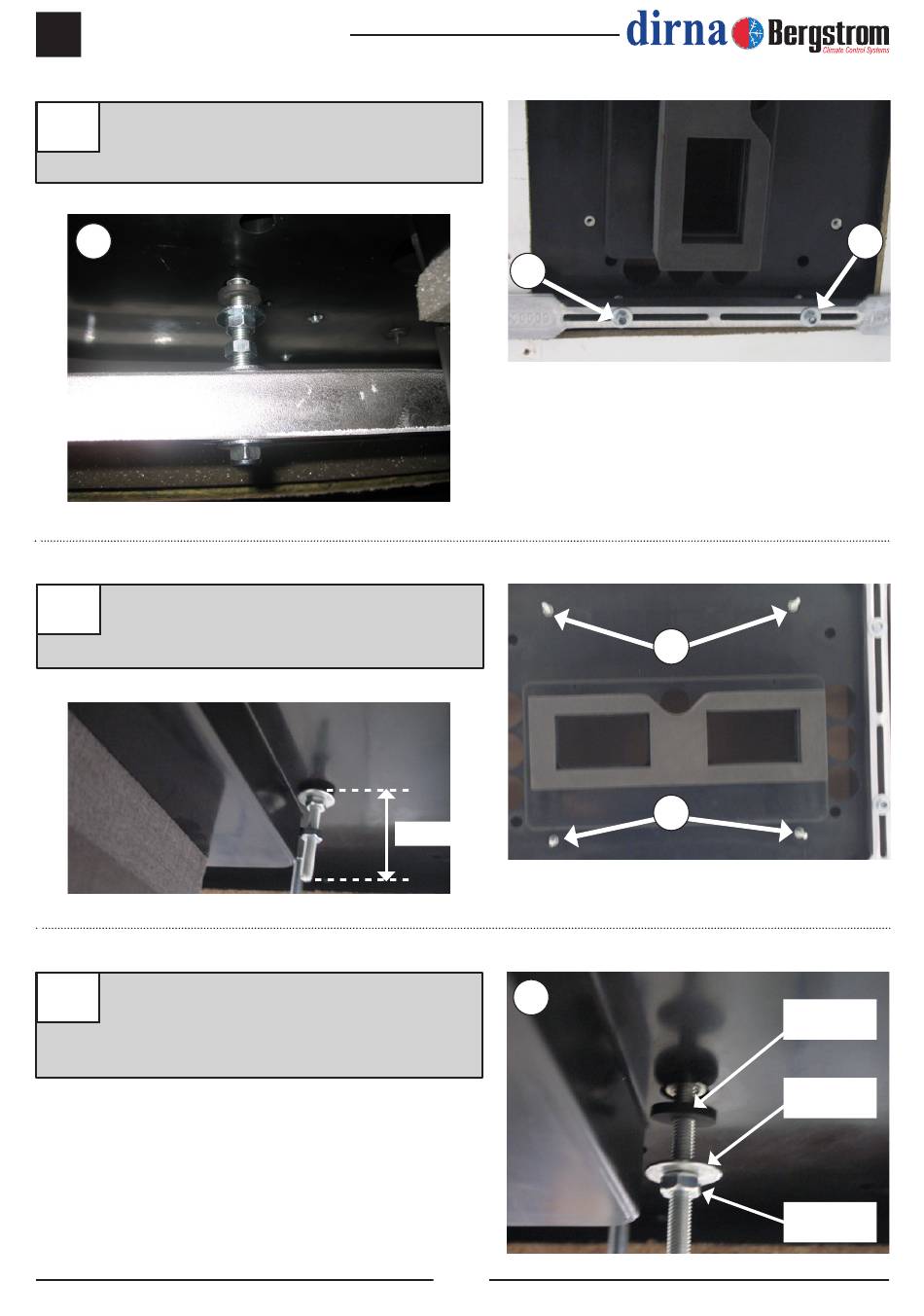

Place (2) fastening supports, with (1) washer
8a
and (1) M8 self-blocking nut, without
tightening.
8a
Screw 10 mm deep (4) M6 x 55 or 80 studs,
9
where indicated distance (D) in figure point
16.
Position (1) Ø6 rubber washer, (1) Ø6 wide-
10
rimmed flat washer and (1) M6 nut on each
one of the M6 studs. Then tighten the nut
until the rubber washer is pressed slightly.
8a
(D) mm
10
18
Air conditioning for vehicles
9
9
plane wide
8a
plane
washer
wing
nut M6
