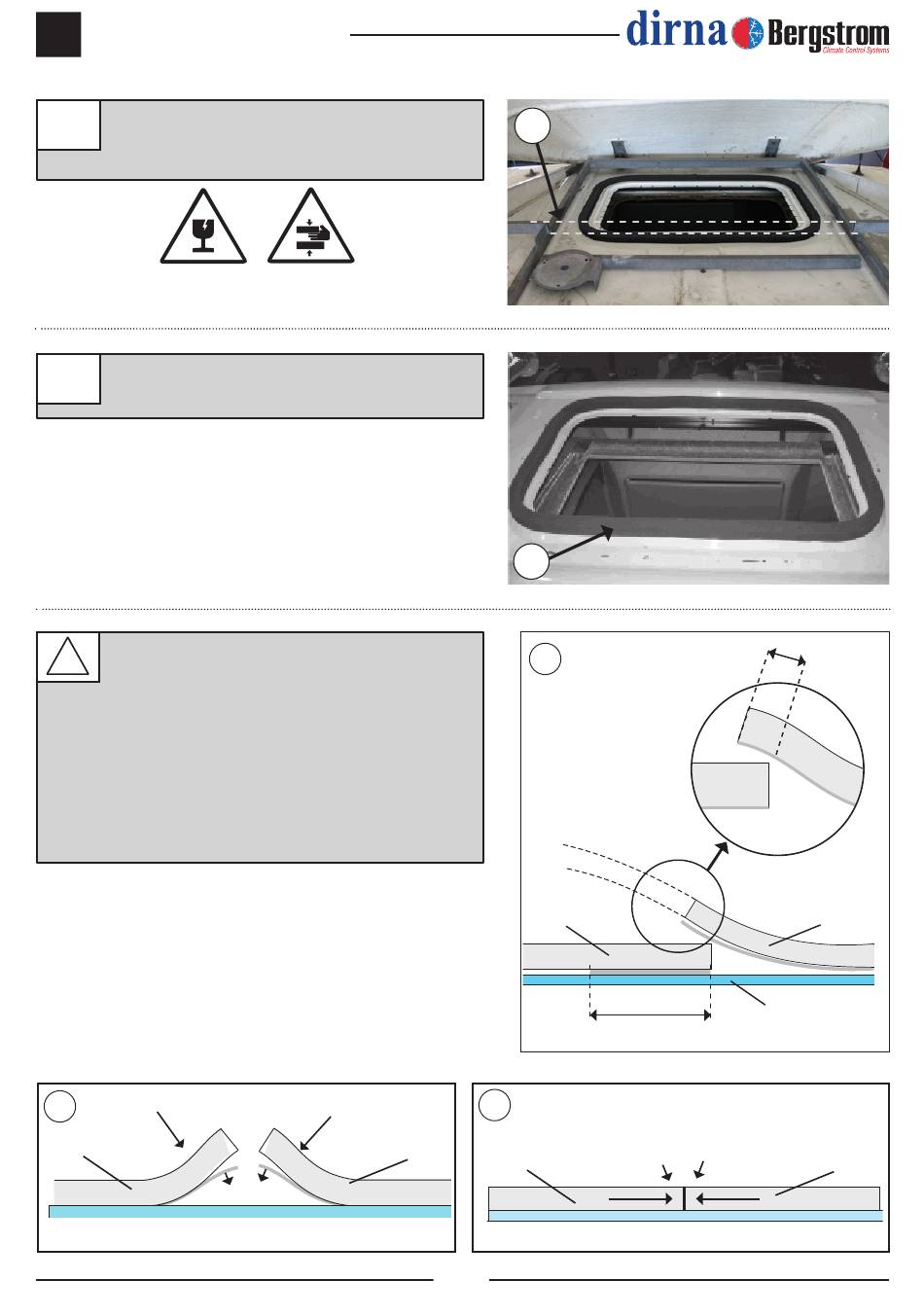

In case vehicle has a spoiler with central bar,
4
cut the bar shown by dot lines in order to
install equipment.
Glue EPDM gasket around hatch hole (see
4a
detail for cutting end join edges).
HOW TO CUT EPDM GASKET TO AVOID
!
WATER FILTRATION INTO THE CABIN
A- Glue gasket, keeping 100 mm of
protection paper at each side.
B- Remove the two pieces of paper.
C- Glue by pressing both ends.
B
Gasket
Gasket
Remove
4
4a
A
Gasket
100 mm Aprox. (papel protector)
C
Gasket
