Create a log settings file in ModbusManager
First install the software ModbusManager on your
computer. The software can be downloaded from
www.nibe.se/kommunikation.
1
18
3
4
2

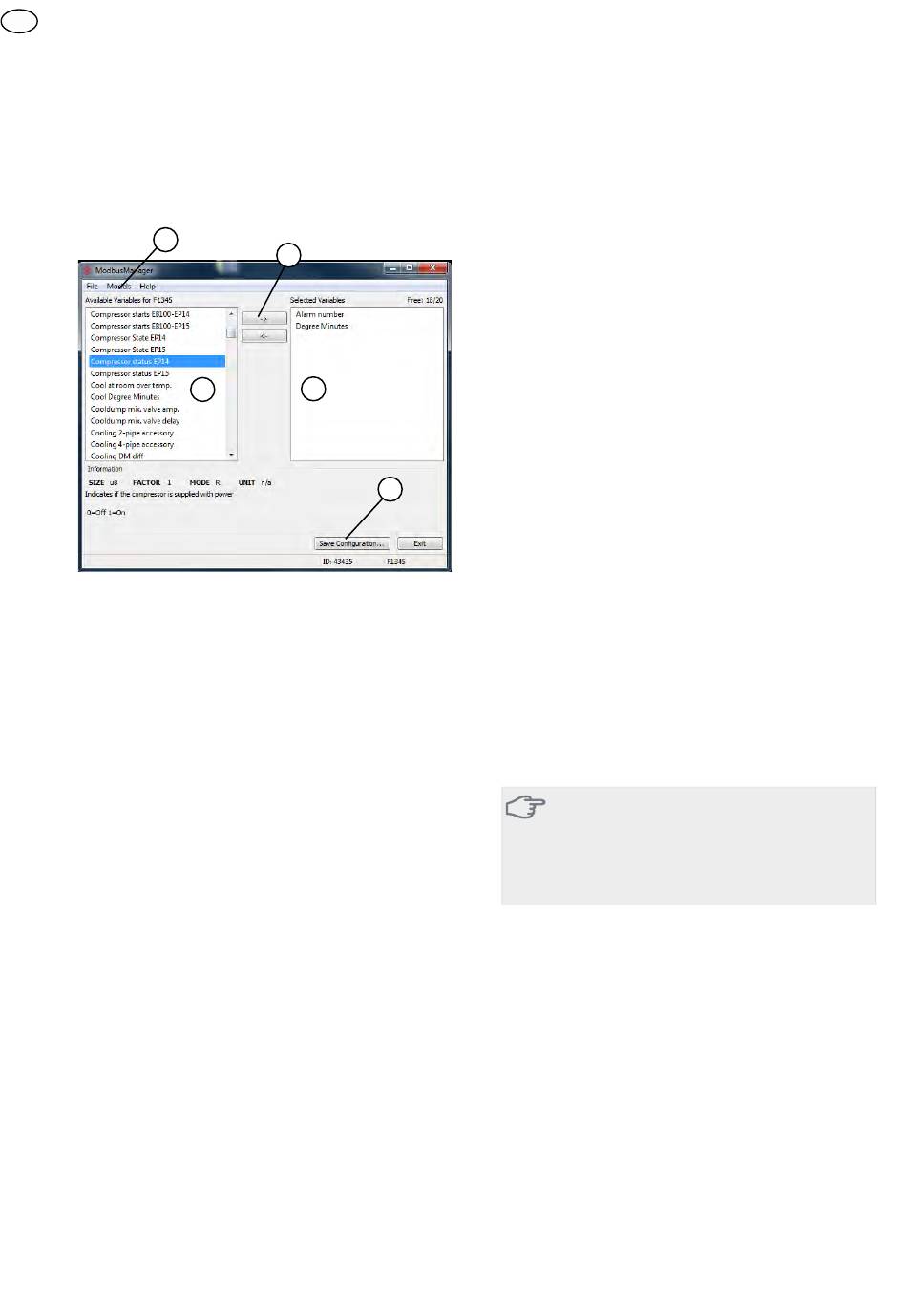

1. First select heat pump/indoor module model under
menu "Models".
2. You can scroll between the available parameters
for the selected heat pump/indoor module in the
left-hand column.
Information about the selected parameter is dis-
played in the box under the list.
The list of parameters can be filtered by optional
key words by selecting "File" - "Apply Filter".
Make sure to order the list logically. For example:
EB 100 EP14 BT10 Brine in 40015
EB 100 EP14 BT11 Brine in 40016
EB 100 EP15 BT10 Brine in 40100
EB 100 EP15 BT11 Brine in 40085
Check which value you are reading when using the
list.
3. Mark a parameter and click on the right-hand ar-
5
row to transfer it to the right-hand column.
4. The right-hand column shows which parameters
will be logged.
Transfer all parameters you want to log. Use the
left arrow to change selection.
5. When you are satisfied with the list, click "Save
configuration...".
A dialogue box appears that asks where you want
to save your log settings file.
Save the file on the computer or directly on a USB
memory.
Select "Export to file" under the menu "File" if you
want to save all heat pump parameters in a docu-
ment that can be opened in any calculation pro-
gram.
Caution
The file name must be LOG.SET for the heat
pump/indoor module to read the file.
Find more information about LOG.SET files at
www.nibe.se/kommunikation.
