Max travel X-axis
Max travel Y-axis
Table size
T-slots 3
Overall 550 x 450 x 630mm
Net weight
Mains 230V ~1L/N/PE 50Hz
Output power 150W (0,2 HP) S1
Reference current
Extension cord (H07RN-F) 3x1,5mm²
Installation fuse protection
4.2 Noise emission
Acoustic pressure level
(according to EN ISO 11202):
Idling at maximum speed
LpA 79,4 dB (A)
The specified values are emission
levels and are not necessarily to be
seen as safe operating levels.
As workplace conditions vary, this
information is intended to allow the
user to make a better estimation of the
hazards and risks involved only.
4.3 Content of delivery
10mm drill chuck with arbour MT2
Draw bar M10
Drilling and milling guard
Operating tools
Operating manual
Spare parts list.

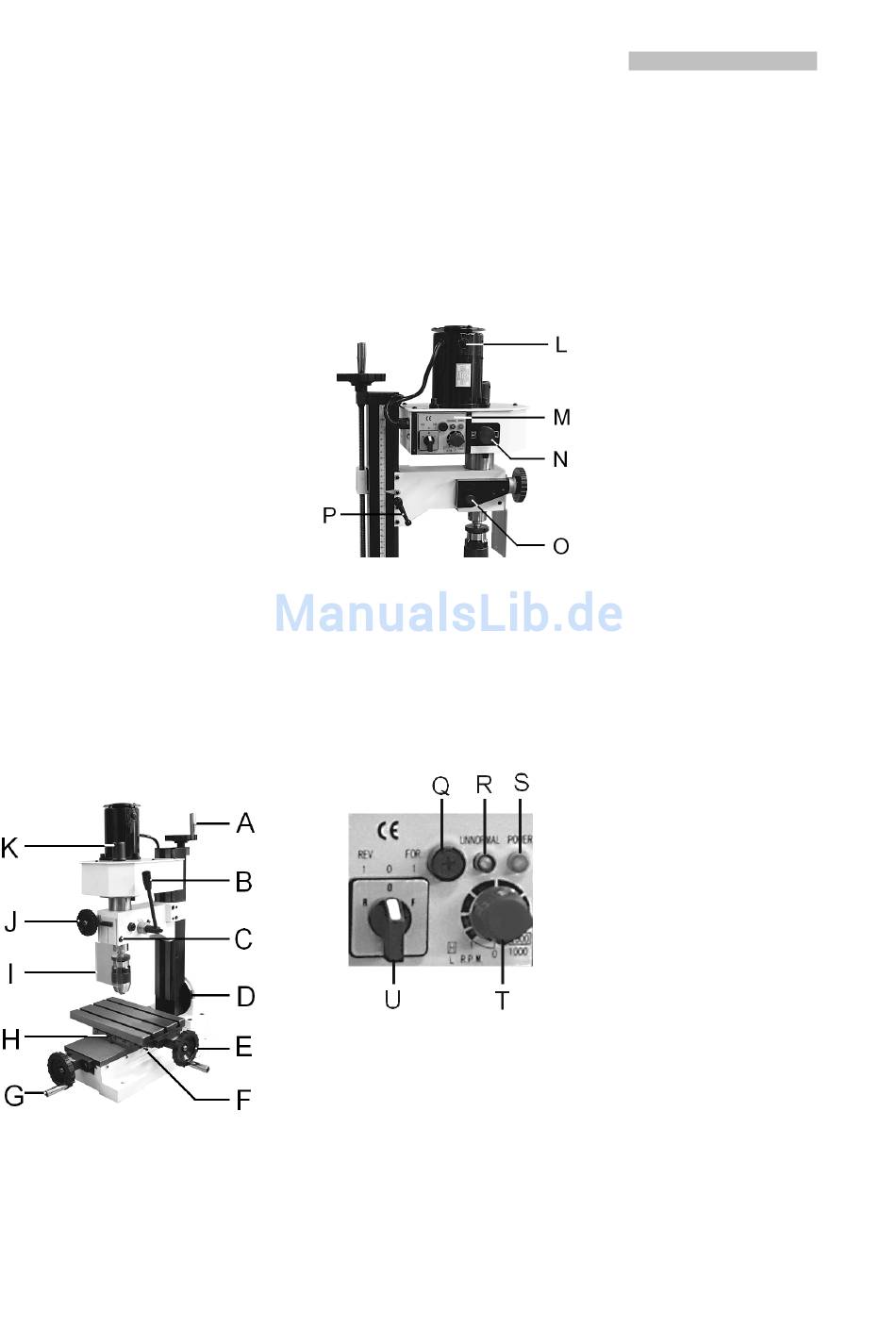

4.4 Machine Description
Fig 1
A....Z-axis hand wheel
B....Down feed handle
C.....Quill lock handle
190mm D.....Column tilt
100mm
E.....X-axis hand wheel
145 x 240mm
8mm
F....Y-axis slide lock
G....Y- axis hand wheel
40 kg
H....X- axis slide lock
I......Drill chuck guard
1 A
J..... Fine feed hand wheel
K..... Draw bar cover
10A
L....Motor brush
M....Spindle control panel
N....Gear select knob
O....Fine feed ON/OFF knob
P....Z-axis slide lock
Q....Fuse
R....Overload and Not-ready lamp
S....Power indication lamp
T....Reset-Off / speed control knob
U....Rev / Power-OFF/ Fwd switch
Fig 2
Fig 3
5
5. Transport and start up
5.1 Transport and installation
The machine is designed to operate in
closed rooms and must be bolted to
the cabinet stand or a solid work
bench.
Make sure the machine cannot tip!
For packing reasons the machine is
not completely assembled.
5.2 Assembly
If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
petroleum, diesel oil or a mild solvent.
Attach the crank handles to the hand
wheels (A, E, G Fig 1).
5.3 Mains connection
Mains connection and any extension
cords used must comply with
applicable regulations.
The mains voltage must comply with
the information on the machine
licence plate.
The mains connection must have a
10 A surge-proof fuse.
Only use power cords marked
H07RN-F.
Connections and repairs to the
electrical equipment may only be
carried out by qualified electricians.
Make sure the Rev / Power-OFF/ Fwd
switch (U, Fig 3) is in OFF position
before you connect the machine to the
power supply.
5.4 Initial lubrication
The machine must be serviced at all
lubrication points before it is placed
into service!
(see chapter 8 for lubrication)
5.5 Starting operation
Before starting the machine check
the proper chucking.
