MICO 40-50-ST
MiCO 50

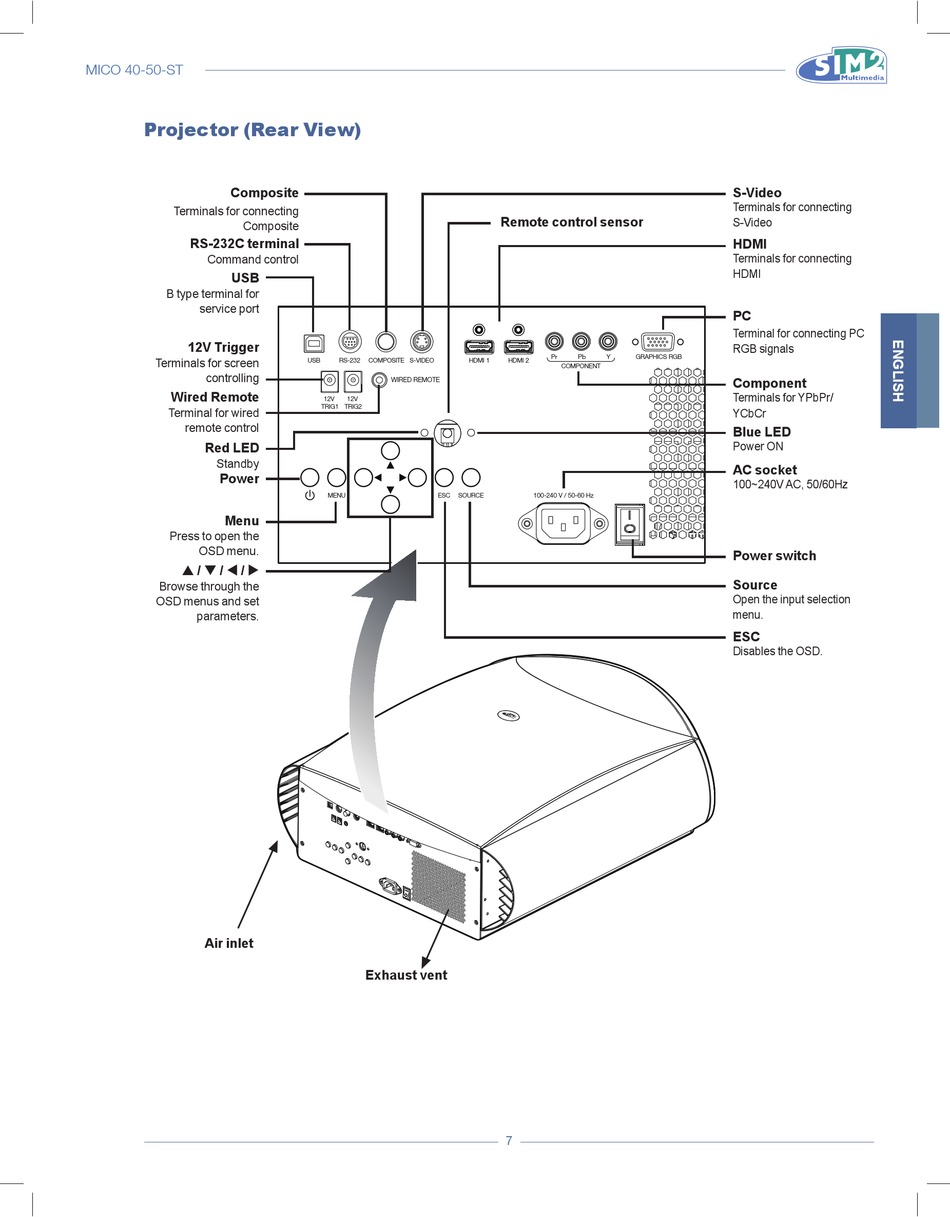

Projector (Rear View)

Composite
Terminals for connecting
Composite
Rs-232C terminal
Command control
UsB
B type terminal for
service port
12V Trigger
Terminals for screen
controlling
Wired Remote
Terminal for wired
remote control
Red lED
Standby
Power
Menu
Press to open the
OSD menu.
p / q / t / u
Browse through the
OSD menus and set
parameters.
Air inlet
USB
RS-232
COMPOSITE
S-VIDEO
HDMI 1
WIRED REMOTE
12V
12V
TRIG1
TRIG2
MENU
ESC
SOURCE
Exhaust vent
Remote control sensor
Pr
Pb
Y
GRAPHICS RGB
HDMI 2
COMPONENT
100-240 V / 50-60 Hz
7
s-Video
Terminals for connecting
S-Video
hDMi
Terminals for connecting
HDMI
PC
Terminal for connecting PC
RGB signals
Component
Terminals for YPbPr/
YCbCr
Blue lED
Power ON
AC socket
100~240V AC, 50/60Hz
Power switch
source
Open the input selection
menu.
EsC
Disables the OSD.
