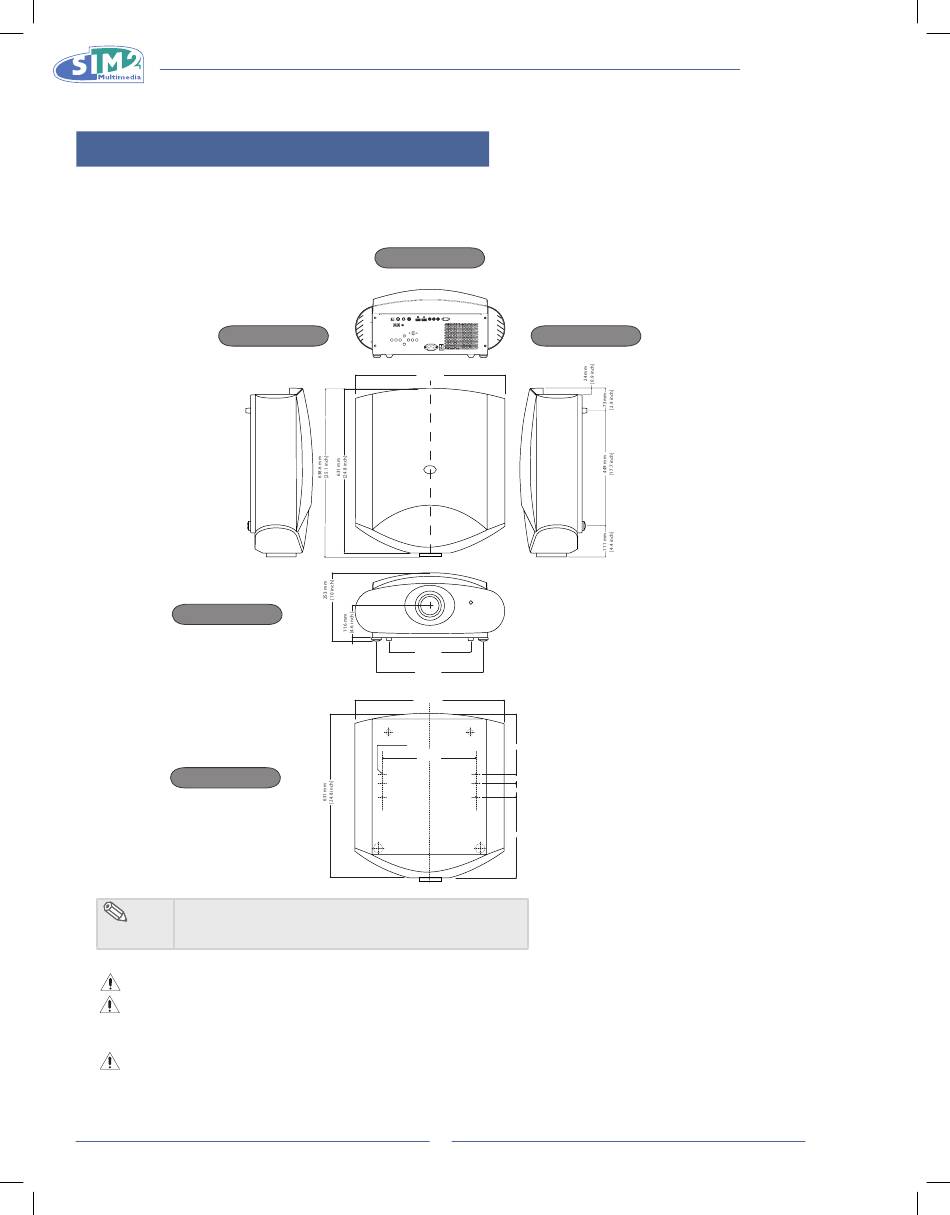

long Throw lens Dimension

Unit: mm (inch)
side View
Front View
Bottom View
note
•
Your projector comes with 6 screws in the bottom.
•
Don't remove screws if you do not use ceiling mount.
Authorized technician should perform the installation only.
When using the ceiling mount bracket, the safety instructions provided with the bracket must be strictly
observed. Placed the projector at the desired distance from the screen: the size of the projected image
depends upon the distance between the lens and the screen and the zoom setting.
For ceiling/wall installation, by means of suspension bracket, carefully follow the instructions and
safety instructions recommended by the manufacturer in the bracket's literature.
Rear View
540 mm
[21.3 inch]
296 mm
18 mm
[11.7 inch]
[0.7 inch]
370 mm
[14.6 inch]
540 mm
[21.3 inch]
n˚ 6 scr e ws M6
197 mm [7.8 inch]
339 mm
[13.3 inch]
34 mm [1.3 inch]
53 mm [2.1 inch]
252 mm [9.9 inch]
34
side View
MICO 40-50-ST
MiCO 50
