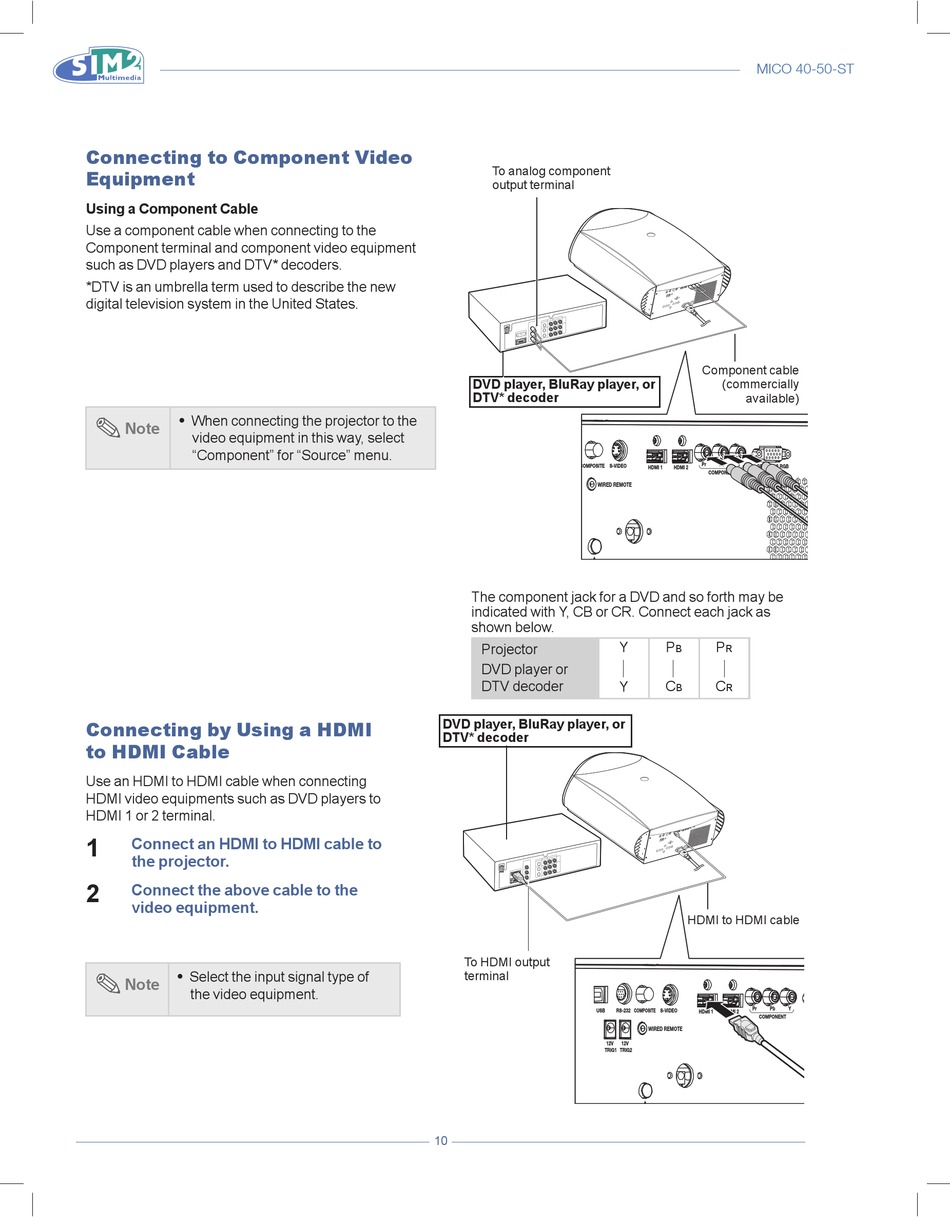

Connecting to Component Video
Equipment
Using a Component Cable
Use a component cable when connecting to the
Component terminal and component video equipment
such as DVD players and DTV* decoders.
*DTV is an umbrella term used to describe the new
digital television system in the United States.
•
When connecting the projector to the
note
video equipment in this way, select
"Component" for "Source" menu.
Connecting by Using a HDMI
to HDMI Cable
Use an HDMI to HDMI cable when connecting
HDMI video equipments such as DVD players to
HDMI 1 or 2 terminal.
1
Connect an hDMi to hDMi cable to
the projector.
2
Connect the above cable to the
video equipment.
•
Select the input signal type of
note
the video equipment.
To analog component
output terminal
DVD player, BluRay player, or
DTV* decoder
COMPOSITE S-VIDEO
WIRED REMOTE
The component jack for a DVD and so forth may be
indicated with Y, CB or CR. Connect each jack as
shown below.
