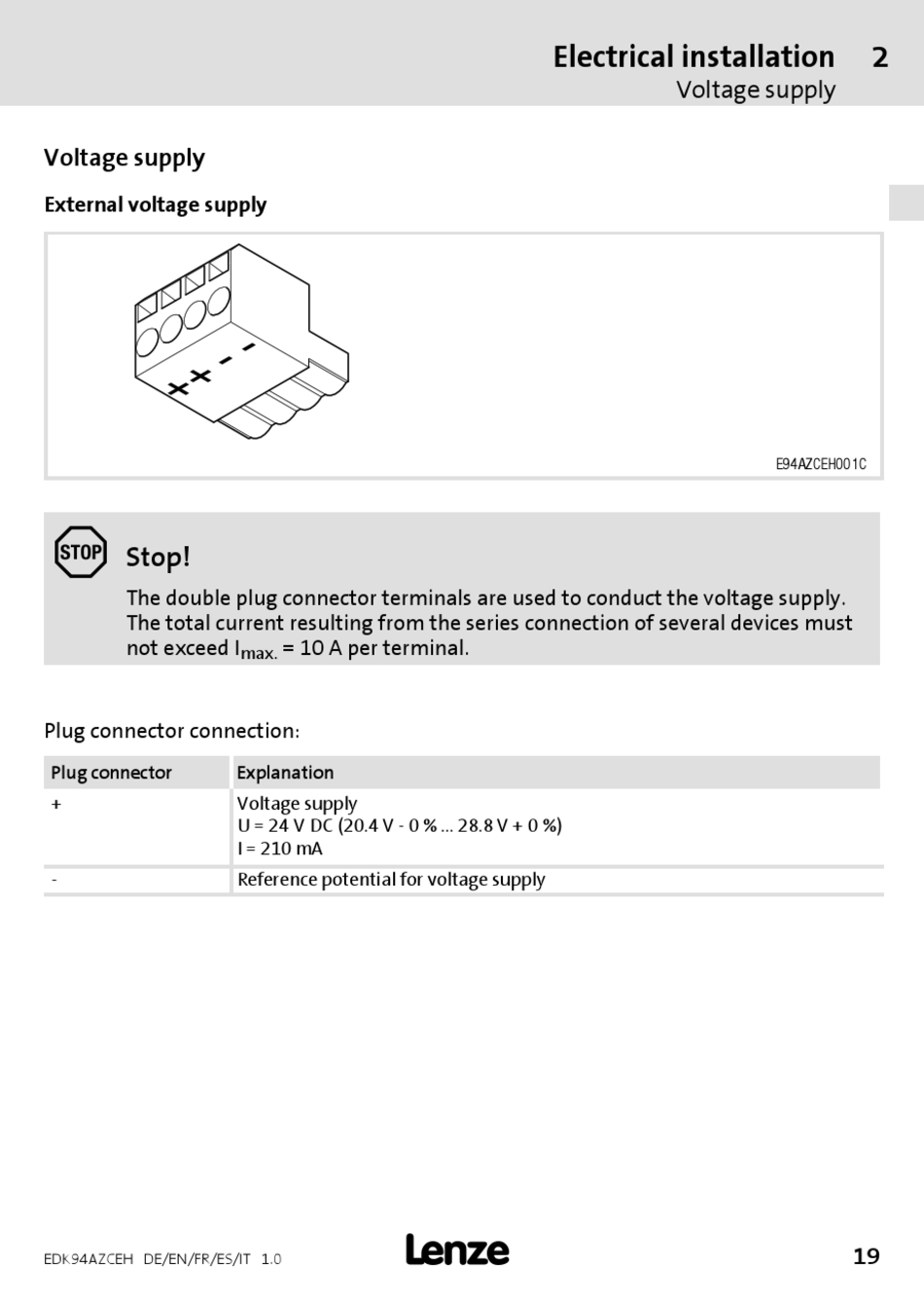

Electrical installation

Voltage supply

External voltage supply

Stop!
The double plug connector terminals are used to conduct the voltage supply.
The total current resulting from the series connection of several devices must
not exceed I
Plug connector connection:
Plug connector
+
-
EDK94AZCEH DE/EN/FR/ES/IT 1.0
= 10 A per terminal.
max.
Explanation
Voltage supply
U = 24 V DC (20.4 V - 0 % ... 28.8 V + 0 %)
I = 210 mA
Reference potential for voltage supply

Electrical installation
Voltage supply
2
E94AZCEH001C
