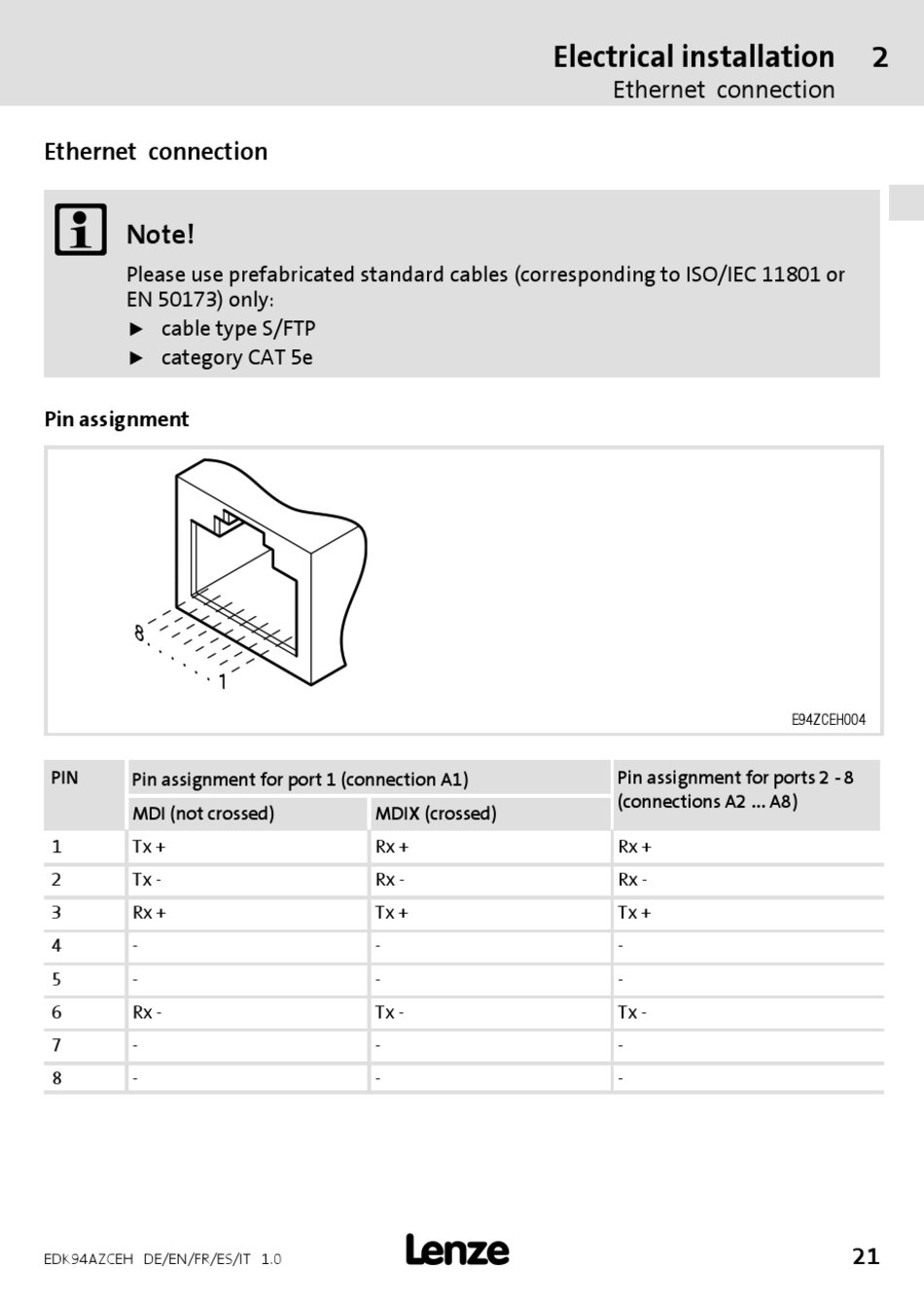

Ethernet connection


Note!
Please use prefabricated standard cables (corresponding to ISO/IEC 11801 or
EN 50173) only:
cable type S/FTP
ƒ
category CAT 5e
ƒ
Pin assignment
PIN
Pin assignment for port 1 (connection A1)
MDI (not crossed)
1 Tx +
2 Tx -
3 Rx +
4 -
5 -
6 Rx -
7 -
8 -
EDK94AZCEH DE/EN/FR/ES/IT 1.0
MDIX (crossed)
Rx +
Rx -
Tx +
-
-
Tx -
-
-

Electrical installation
Ethernet connection
Pin assignment for ports 2 - 8
(connections A2 ... A8)
Rx +
Rx -
Tx +
-
-
Tx -
-
-
2
E94ZCEH004
21
