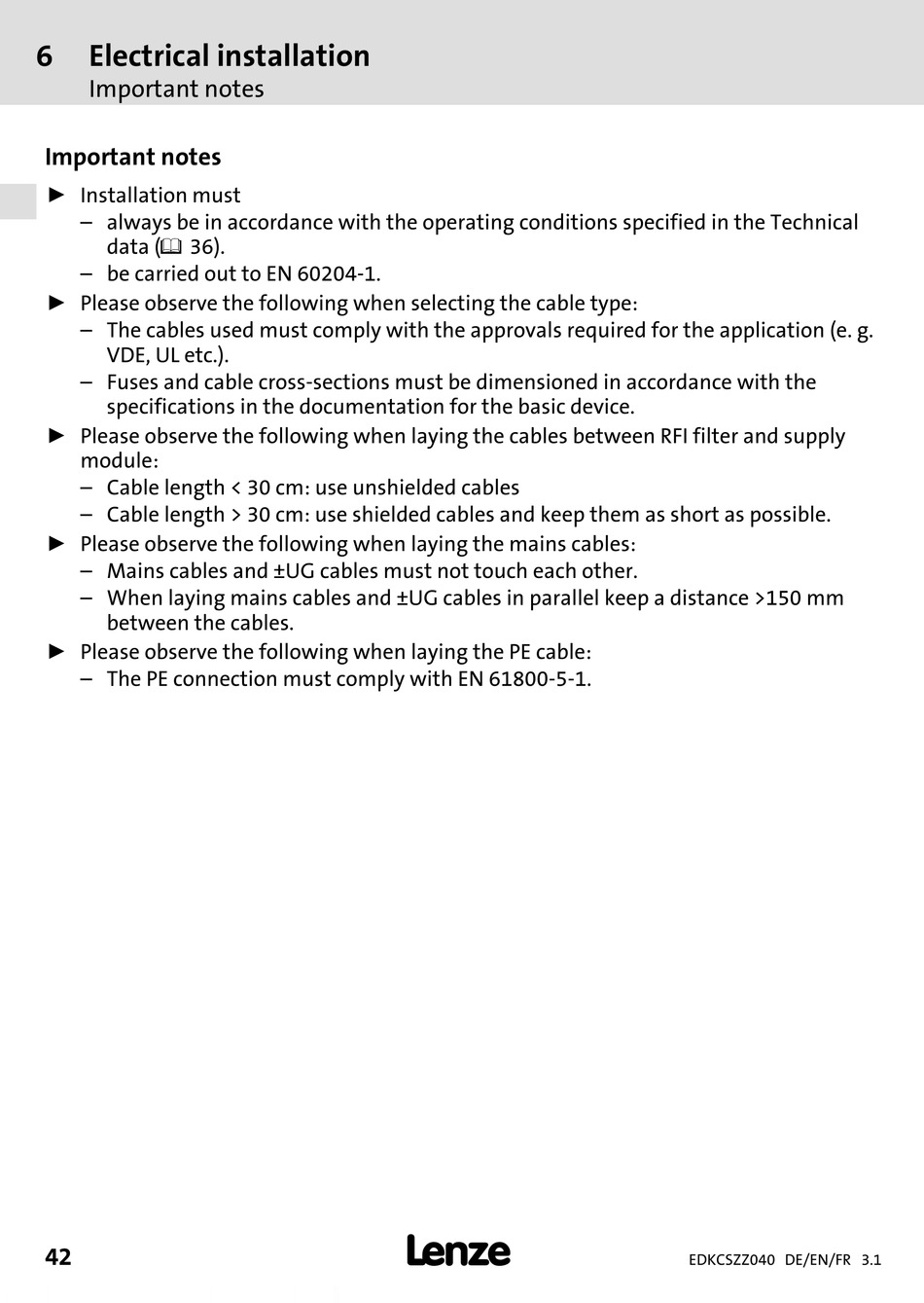

Electrical installation

Important notes

6 Electrical installation
Important notes
ƒ Installation must
– always be in accordance with the operating conditions specified in the Technical
data (^ 36).
– be carried out to EN 60204−1.
ƒ Please observe the following when selecting the cable type:
– The cables used must comply with the approvals required for the application (e. g.
VDE, UL etc.).
– Fuses and cable cross−sections must be dimensioned in accordance with the
specifications in the documentation for the basic device.
ƒ Please observe the following when laying the cables between RFI filter and supply
module:
– Cable length < 30 cm: use unshielded cables
– Cable length > 30 cm: use shielded cables and keep them as short as possible.
ƒ Please observe the following when laying the mains cables:
– Mains cables and ±UG cables must not touch each other.
– When laying mains cables and ±UG cables in parallel keep a distance >150 mm
between the cables.
ƒ Please observe the following when laying the PE cable:
– The PE connection must comply with EN 61800−5−1.
