2 Electrical installation

Cascading

Cascading

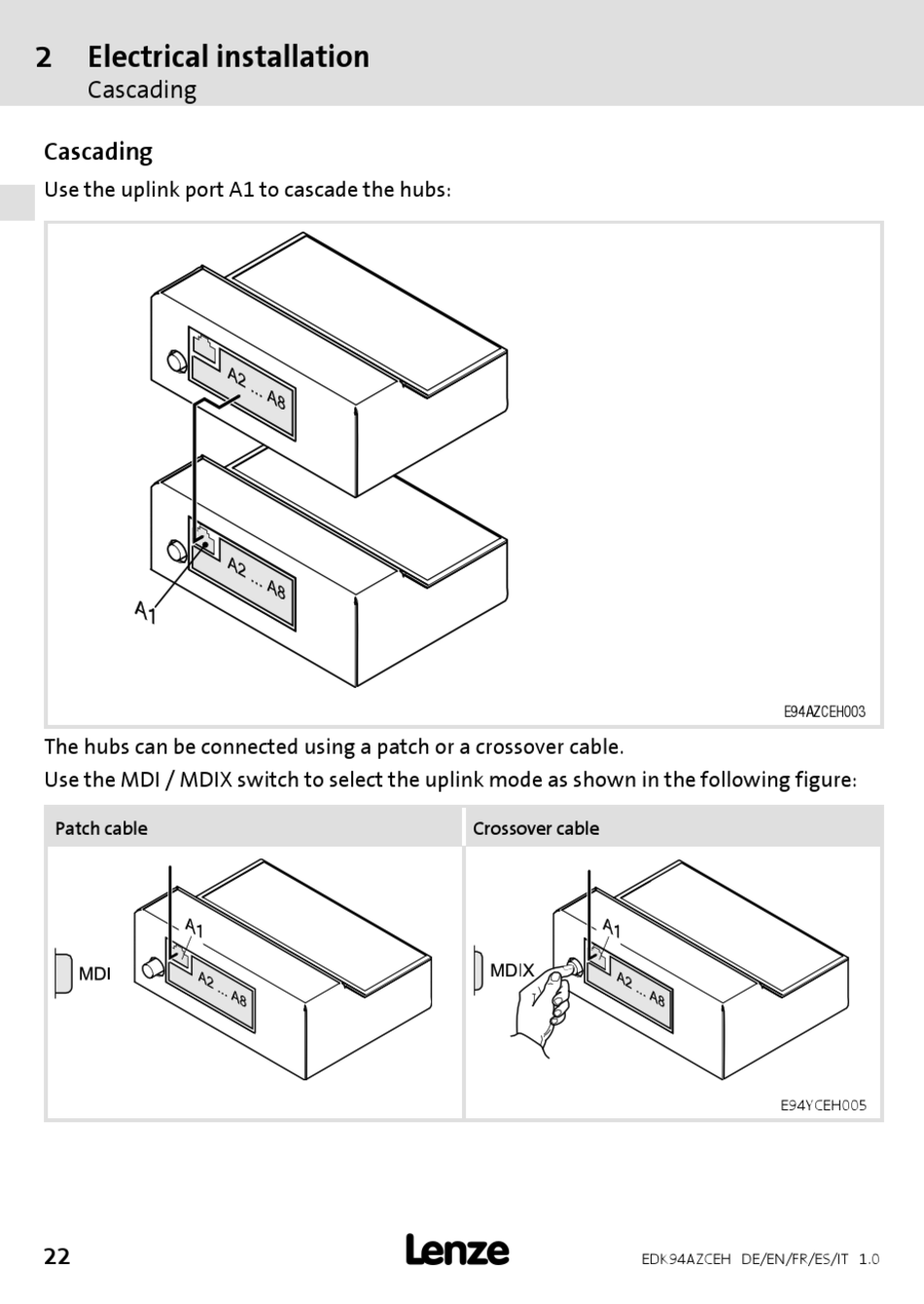

Use the uplink port A1 to cascade the hubs:
The hubs can be connected using a patch or a crossover cable.
Use the MDI / MDIX switch to select the uplink mode as shown in the following figure:
Patch cable
22
Crossover cable

E94AZCEH003
E94YCEH005
