3. Installation

3.2 Communication ports

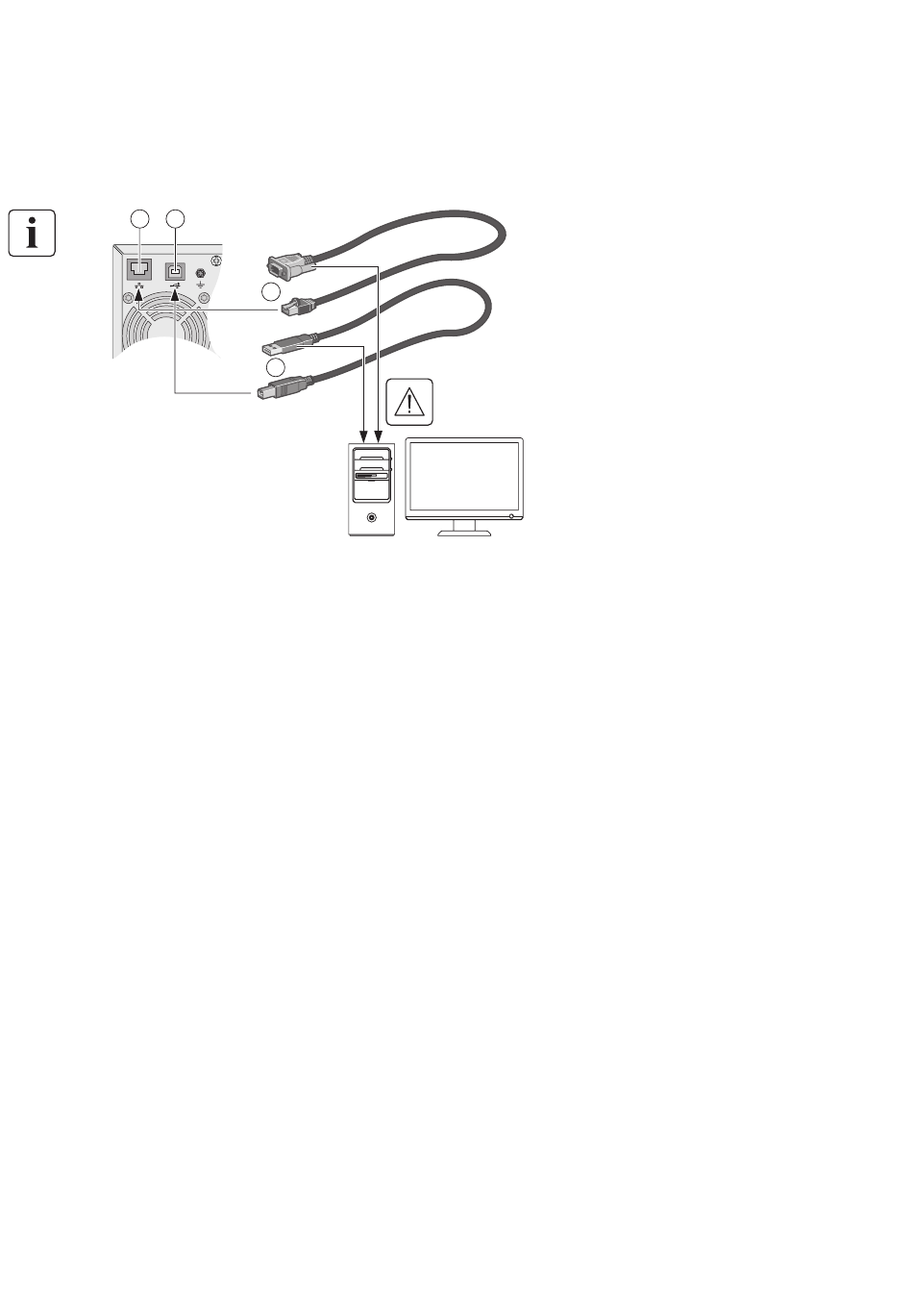

Connection of RS232 or USB communication port
The RS232 and USB communication ports cannot operate simultaneously.
2
1
Page 8
5
6
1. Connect the RS232 (5) or USB
(6) communication cable to
the serial or USB port on the
computer equipment.
2. Connect the other end of the
communication cable (5) or
(6) to the USB (1) or RS232 (2)
communication port on
the UPS.
The UPS can now communicate
with EATON power management
software.
