RCS AUDIO-SYSTEMS VLA-601 A Bedienungsanleitung Seite 5

10-zone/20-zone vario-line
Inhaltsverzeichnis

Werbung

VLA-601A/602A
4in(10cm)MIN
IMPORTANT:Be sure rear of amplifier
is securely mounted to rack.
AIR FLOW
RACK MOUNT SPACE
MOUNTING
Amplifier racking size for VLA-601A/602A are designed for
standard 19˝ rack mounting with additional left, right bracket.
Please pay close attention to the cooling requirements.

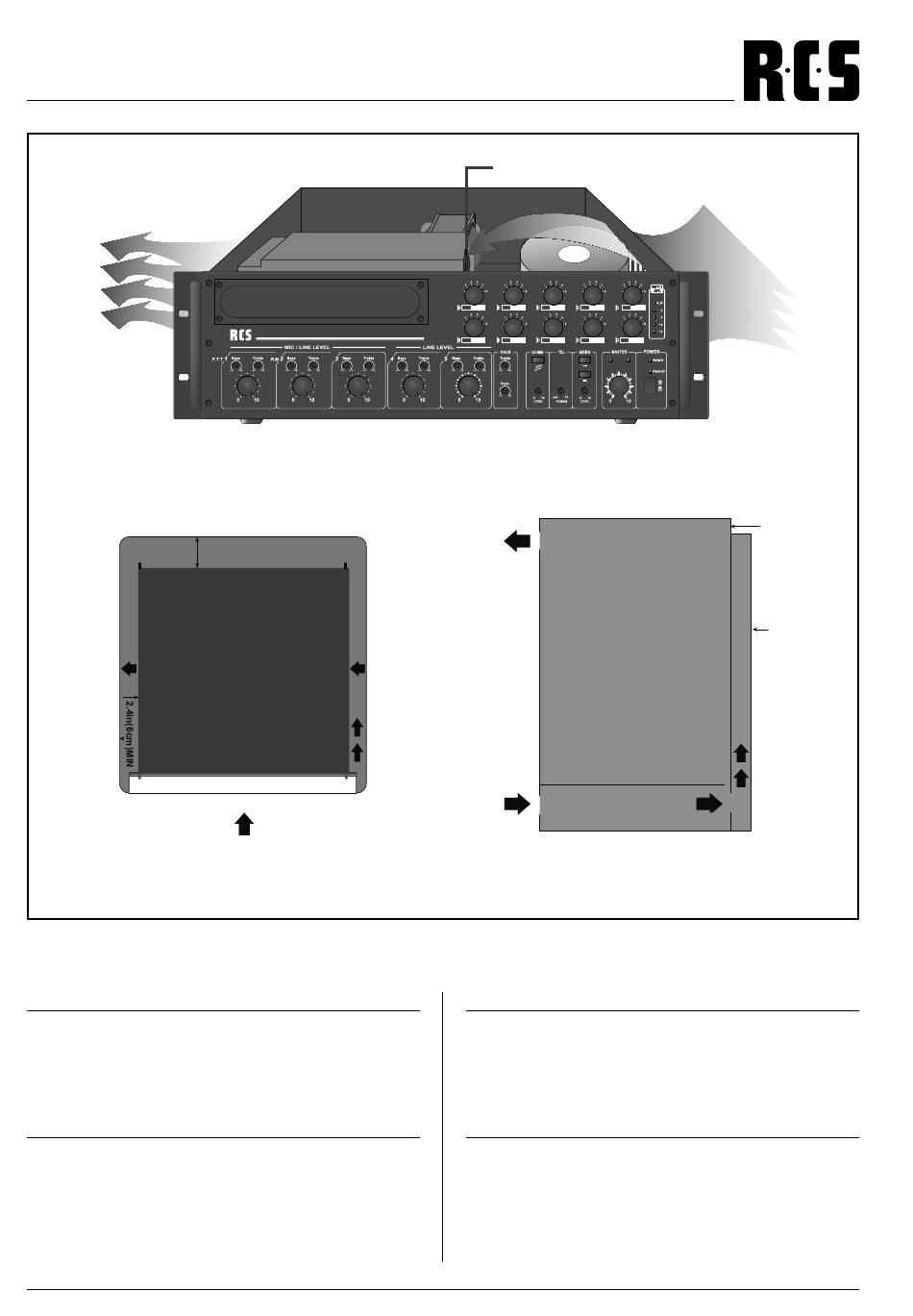

COOLING
Never block the air vents in the sides makes enough space
line 44 mm of the amplifier the following is figure of air-flow.
Check inside temperature of rack system so as not to be
more than 40°C for the stable operating in any case, we re-
commend you to install cooling fan additionally on the rear
panel of rack cabinet.
MOUNTING & COOLING
VLA-601 A
10 ZONE MIXING AMPLIFIER
INSIDE AIR FLOW
AMPLIFIER
(TOP VIEW)
RACK
CABINET
AUTOMATIC VARIABLE SPEED FAN
OFF
OFF
OFF
OFF
OFF
Z 1
Z 2
Z 3
Z 4
Z 5
OFF
OFF
OFF
OFF
OFF
Z 6
Z 7
Z 8
Z 9
Z 10
PROTECT
PROTECT
FAULT
FAULT
AIR
BLOWER
FLOW
EQUIPMENT
RACK
(SIDE VIEW)
AIR
F LOW
AIR FLOW IN RACK CABINET
MONTAGE
Die Verstärker VLA-601A/602A sind mit seitlichen Befesti-
gungwinkeln für den Einbau in 19˝ Gestelle geeignet. Achten
sie aber darauf die Kühlungsöffnungen nicht zu verdecken.
KÜHLUNG
Blockieren sie nie die Luftöffnungen an den Seiten (min. 44
mm Raum), um einen optimalen Kühlluftfluß zu gewährlei-
sten. Falls sie die Verstärker in ein 19"-Rack einbauen und
immer mit höchster Leistung arbeiten, sollte gegebenenfalls
in das Rack ebenfalls ein entsprechender Lüfter eingebaut
werden.
FRONT
OF RACK
DOOR
BLOWER
5
