Maintenance

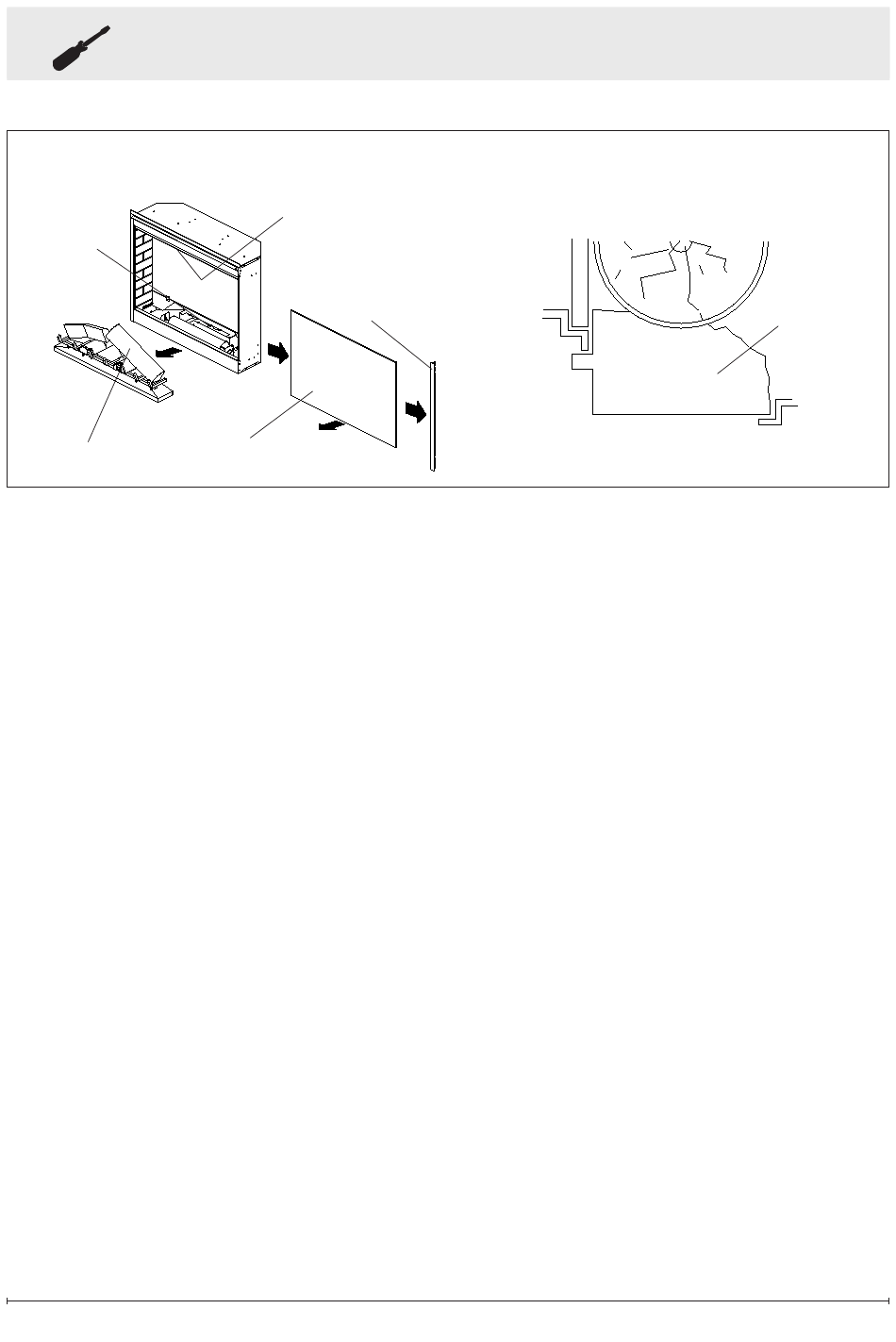

Figure 6
Lower
Bulbs
Log Set
fireplace to remove (Figure
6).
6. Pull the front edge of the plas-
tic ember bed or plastic grate
up and forward until the rear
tab releases from the ledge
located at the bottom of the
mirror (Figure 7).
7. Remove flicker rod by slid-
ing flicker rod to the left away
from the flicker motor and
lifting out.
8. Remove light bracket for
easier access to light bulbs.
!
IMPORTANT: Only handle the
log set by the ember bed.
!
NOTE: Log set fits tightly into
firebox, some force may be nec-
essary to remove.
9. Set log set in front of fire-
place.
12
Upper
Bulbs
Front
Glass
Figure 7
Back
Ledge
Trim
Rear
Tab
10. Unscrew bulbs counter clock-
wise.
11. Insert new bulbs.
12. Replace the log set by insert-
ing the front edge of the
fireplace and push down on
the rear edge of the ember
bed until it snaps into place
(Figure 7).
13. Lay unit on it's back and slide
front glass back into position
and attach trim.
!
NOTE: Ensure the log set is
installed tightly under the back
ledge to prevent light leakage.
Upper Light Bulb Requirements
Quantity of two (2) clear chande-
lier or candelabra bulbs with an
E-14 (small socket base, 25 Watt
rating. Do not exceed 25 Watts
per bulb
Side Section
www.dimplex.com
Log
Ember
Bed
Front
Edge
