GB T5 AUTO
S.A.S. au capital de 5 000 000

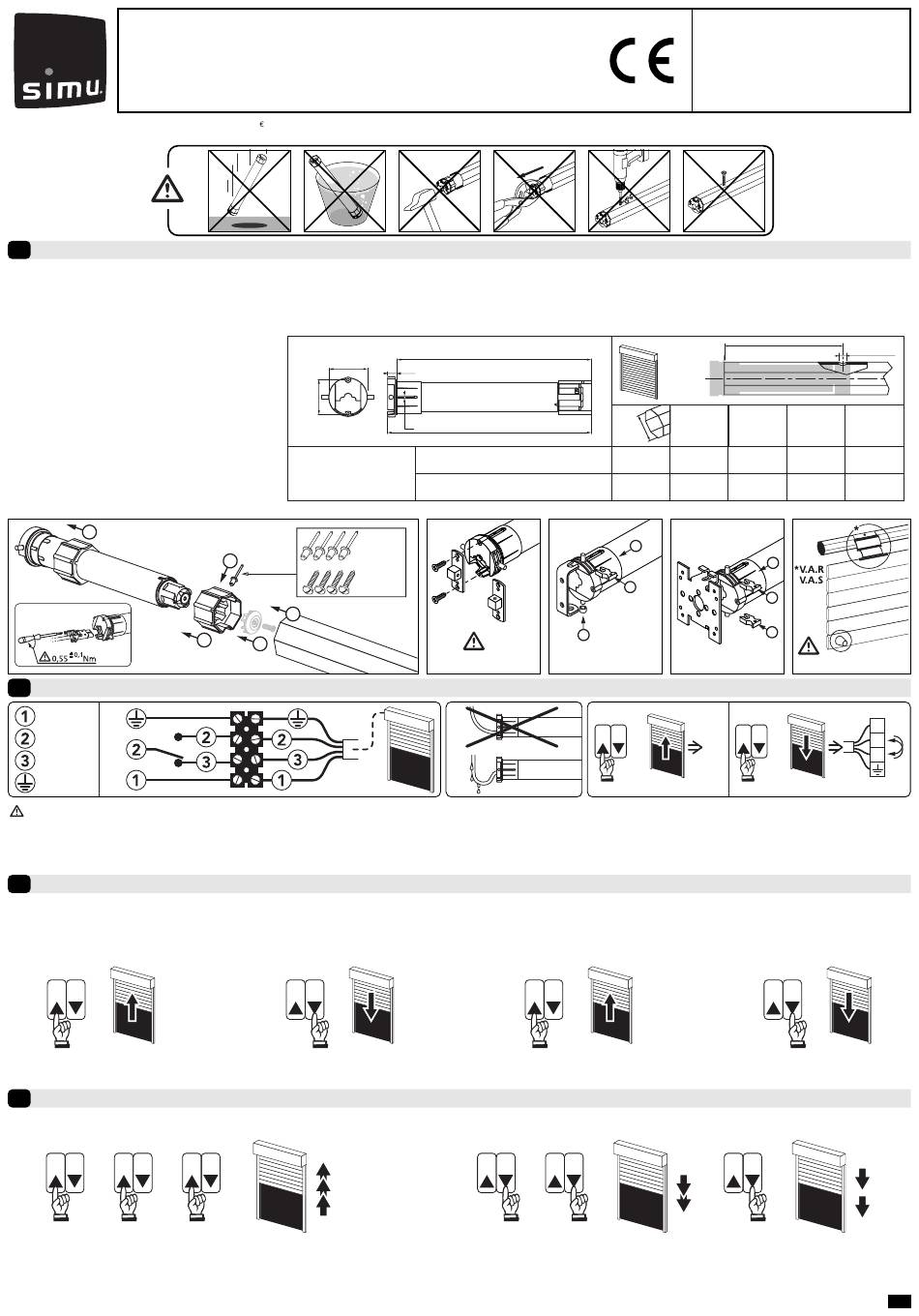

Installation

1
- Recommendations:
- The motor torque must be selected depending of the shutter's characteristics. Do not oversize the operator.
- The use of automatic locking devices (VAR or VAS) and stops on the final slat is mandatory in to ensure proper working of the operator.
- Drilling of the tube:
- Assembly :
1
Câblage
2
PE
Blue
Brown
L
Black
N
Yellow/Green
- 3 operators (max.) can be wired in parallel one one switch.
- The wiring has to be realized by trained personal
- The engine does not allow connection an emergency power supply of the type regulated power supply or power generating unit.
- The connector is to be assembled without damaging the contacts. The continuity of the earth connection must be ensured.
Startup of the operator
3
After the first two consecutive opening and closing of the shutter :
- The operator memorize automatically the end limits ( up and down) positions
- The "stop on obstacle" function is activated.
>>
It is advised to carry out these two opening/closing cycles as soon the product is installed.
Cancelling the automatic settings
4
- In the case of a new installation with this operator, it is advised to reset the motor according to the following procedure:
>> >>
0,5 s 0,5 s
- Press 3 consecutive times, for 0,5s each time, on the UP key. the motor runs briefly at each press.
- Press 3 consecutive times on the DOWN key. The first two press for 0,5s (the motor runs briefly at each press) and the third press for 2s. The motor runs twice in
the same direction.
- Z.I. Les Giranaux - BP71 - 70103 Arc-Les-Gray CEDEX - RCS GRAY B 425 650 090 - SIRET 425 650 090 00011 - n° T.V.A CEE FR 87 425 650 090
55
48*
* :35Nm max.
T5 AUTO
230V-50Hz
Ø4,8 x 10
5
ACIER-STEEL-STAHL-ACERO-ACCIAIO
4
2
3
>>
>>
0,5 s
L1
20
4
L2
6 -10
15 - 20
Ø5 x 10
9910013
9910014
25Nm max.
>>
0,5 s
Read carefully these instructions
A
T
(mm)
min.
47 491
47 511
2
3
1
>> OK
>>
>> >>
0,5 s
5052442A
before any use.
4xØB /90
A
ØB L1 L2
(mm) (mm) (mm)
5 506 521
5 526 541
1
2
2
MANDATORY
1
2
>>
3
>>
>>
2 s
