9 Data output RS232

You can print out weighing data via the RS 232C interface.
The following conditions must be met to provide successful communication between
the weighing balance and the printer.
• Use a suitable cable to connect the weighing balance to the interface of
the printer. Faultless operation requires an adequate KERN interface
cable.
• Communication parameters (baud rate, bits and parity) of balance and
printer must match.

9.1 Technical data

Connection 9 pin d-subminiature bushing
Baud rate 9600
Parity 8 bits, no parity

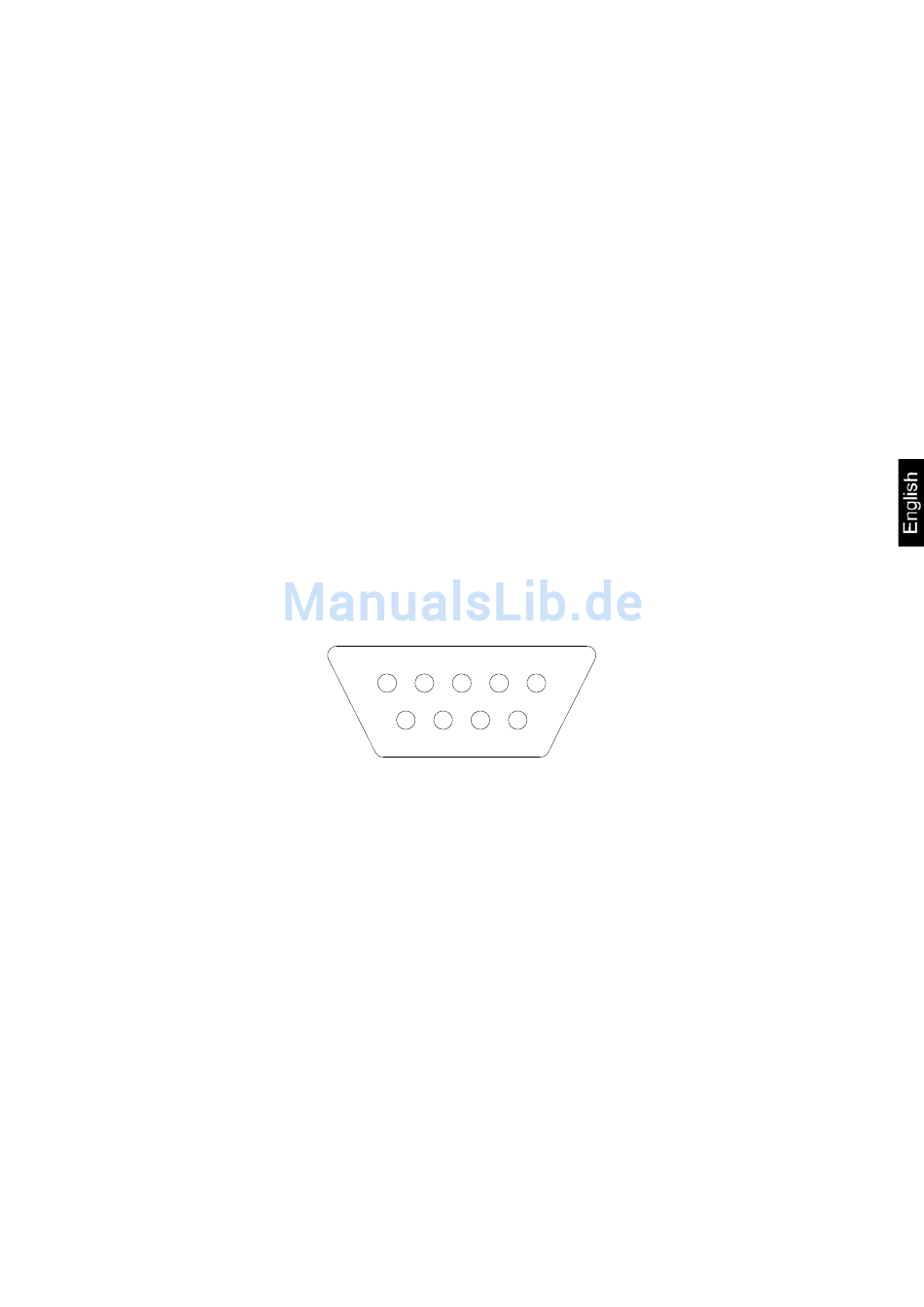

9.2 Pin allocation of balance output bushing:

PFB-BA-e-1630
5 1
9 6
Pin 2 input
Pin 3 output
Pin 5 signal earth
