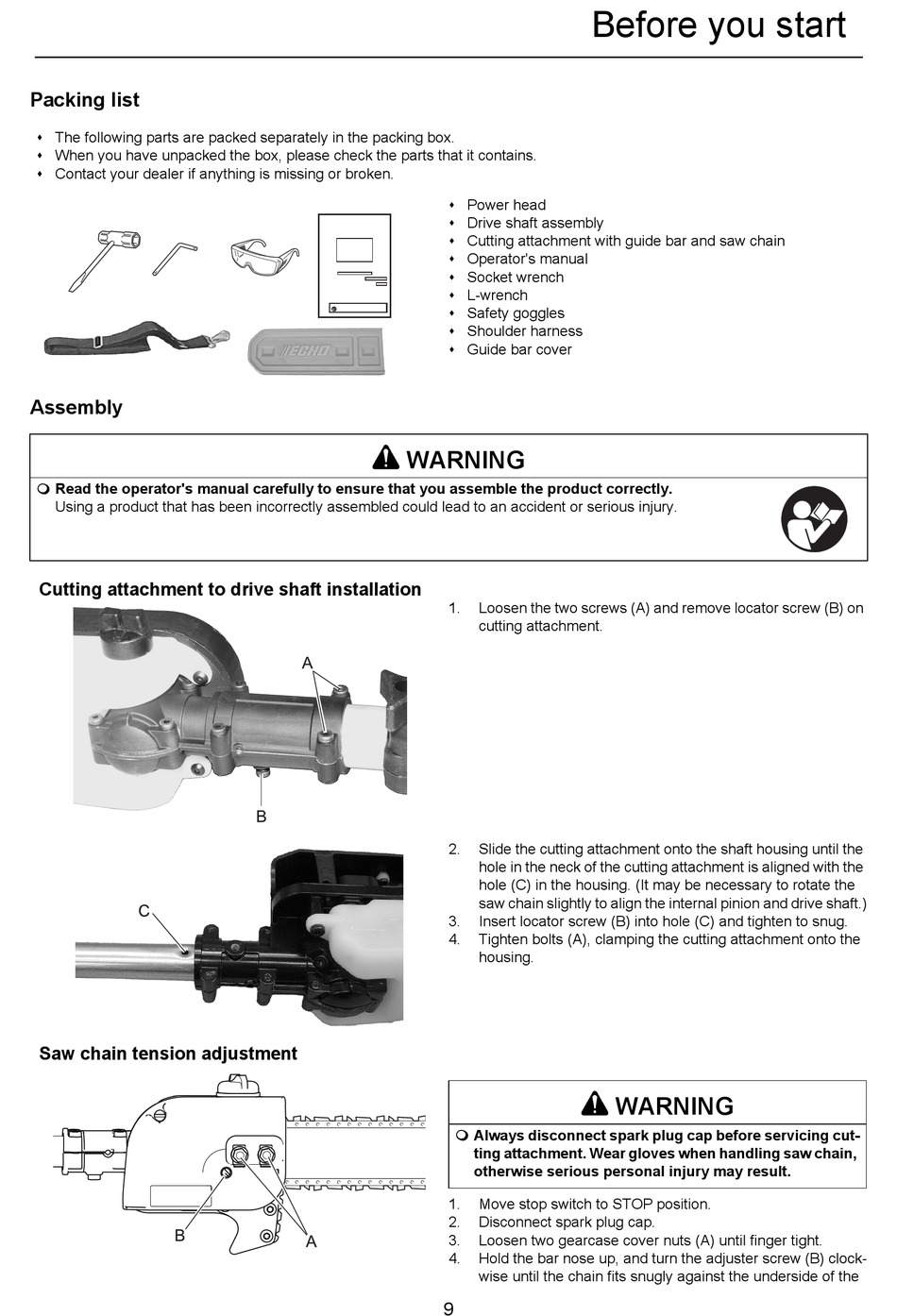

Before You Start; Packing List; Assembly - Echo PPF-236ES Bedienungsanleitung

Packing list

 The following parts are packed separately in the packing box.
 When you have unpacked the box, please check the parts that it contains.
 Contact your dealer if anything is missing or broken.

Assembly

 Read the operator's manual carefully to ensure that you assemble the product correctly.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
Cutting attachment to drive shaft installation
Saw chain tension adjustment

Before you start

 Power head
 Drive shaft assembly
 Cutting attachment with guide bar and saw chain
 Operator's manual
 Socket wrench
 L-wrench
 Safety goggles
 Shoulder harness
 Guide bar cover
WARNING
1. Loosen the two screws (A) and remove locator screw (B) on
cutting attachment.
2. Slide the cutting attachment onto the shaft housing until the
hole in the neck of the cutting attachment is aligned with the
hole (C) in the housing. (It may be necessary to rotate the
saw chain slightly to align the internal pinion and drive shaft.)
3. Insert locator screw (B) into hole (C) and tighten to snug.
4. Tighten bolts (A), clamping the cutting attachment onto the
housing.
 Always disconnect spark plug cap before servicing cut-
ting attachment. Wear gloves when handling saw chain,
otherwise serious personal injury may result.
1. Move stop switch to STOP position.
2. Disconnect spark plug cap.
3. Loosen two gearcase cover nuts (A) until finger tight.
4. Hold the bar nose up, and turn the adjuster screw (B) clock-
wise until the chain fits snugly against the underside of the
9
Before you start
WARNING
