Dimensioning

dimensioning
7.

7.1. Flush and on-wall mounting

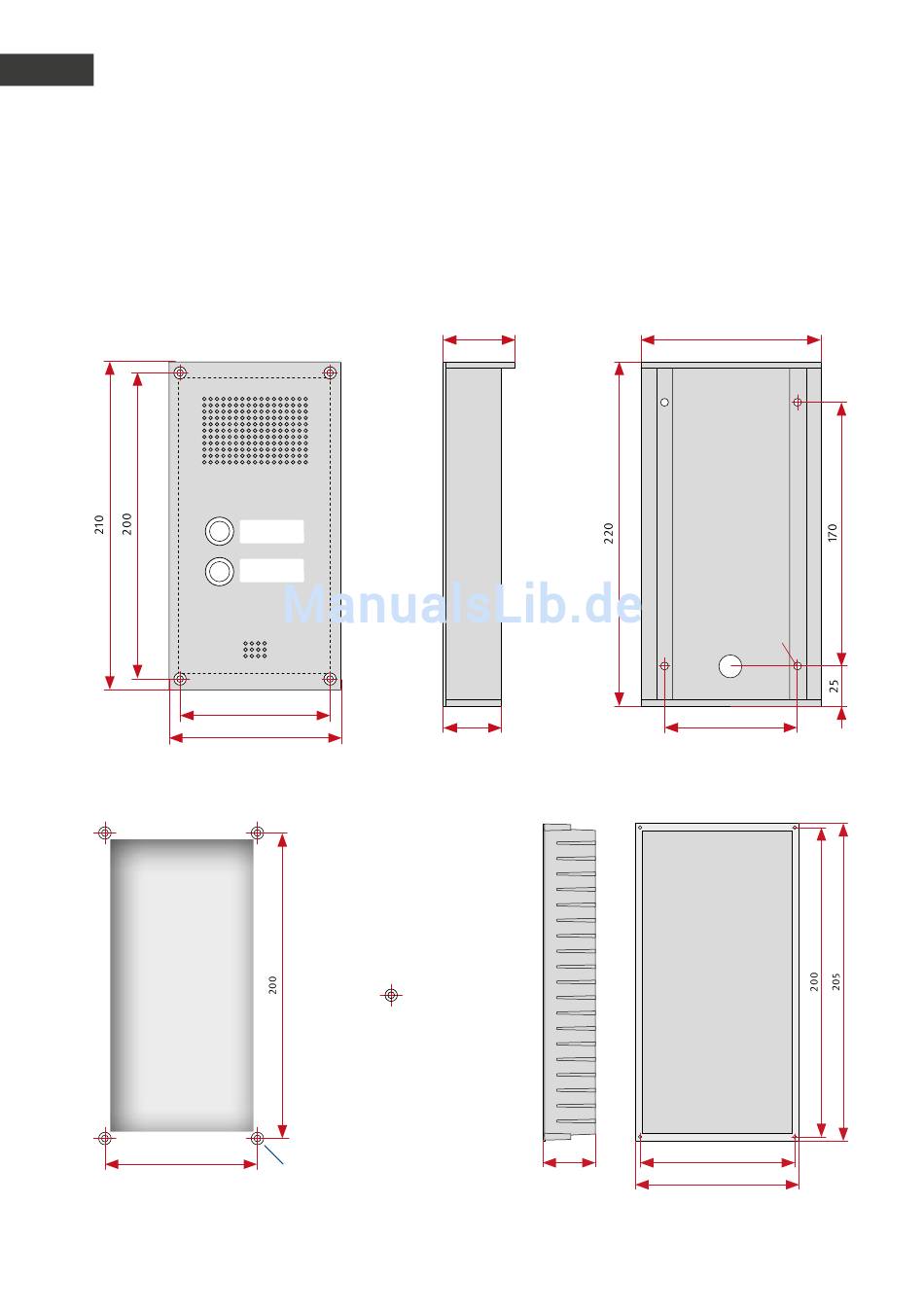

Front view
Mounting (without housing)
hollow
width 95 mm
height 190 mm
100
64
100
110
▸
Depth with electronic:
ca. 30 mm
▸
We suggest a cavity of
43-53 mm deep (incl.
space for wiring)
▸
Drilling with M3 screw
thread=
M3
On-wall housing
45
Side
39
In-wall housing
34
115
Back
Ø 4 mm
85
100
106
