Quick Instruction Guide; Installation - Behnke-Telecom 5 Anleitung

Instructions series 5
GB GB

Quick instruction guide

QuiCk instruCtion guide
1.

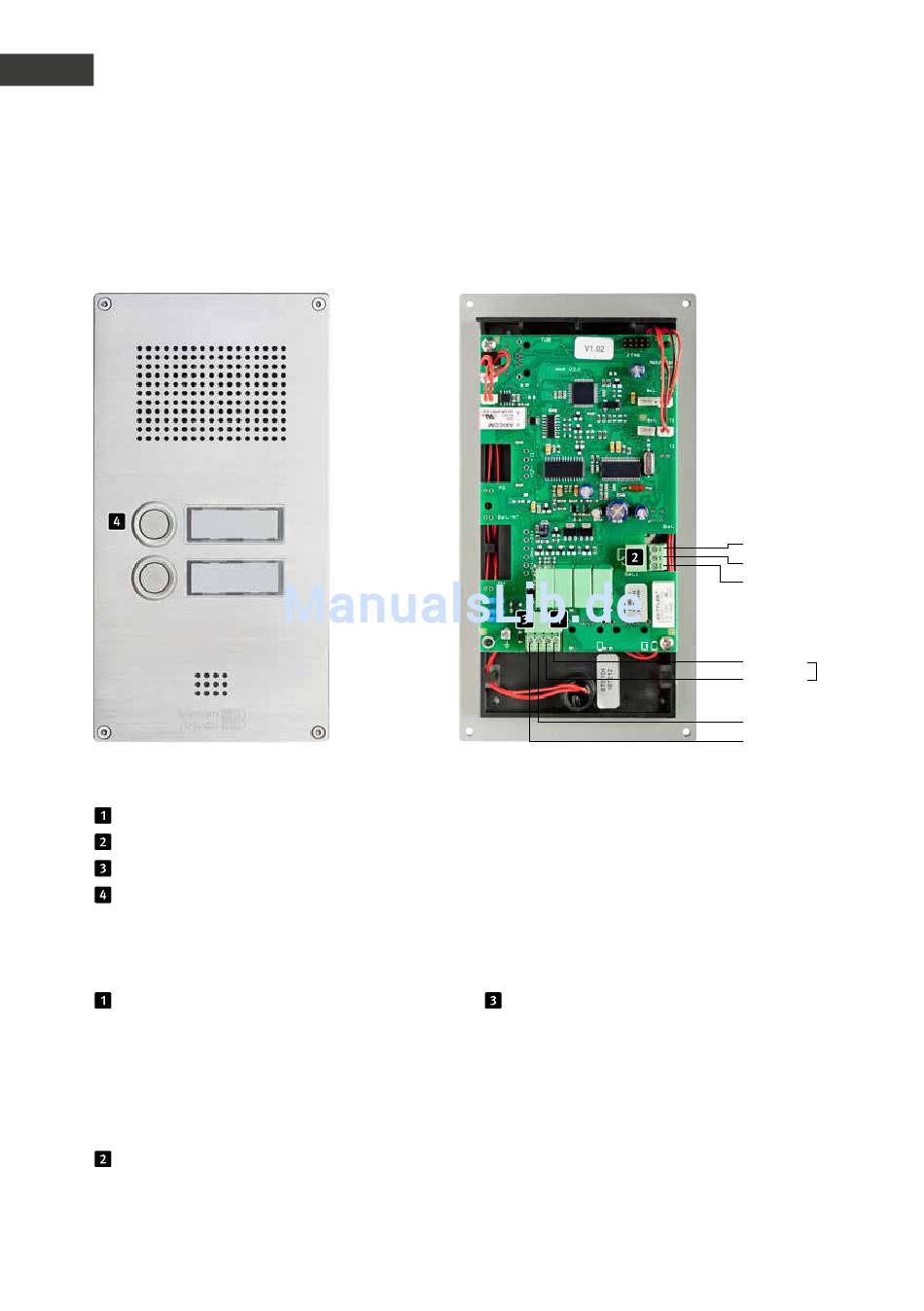

1.1. Installation

Telephone line, analogue main line or extension of a telephone system
Relay, relay switch power: max. 60 VA/24 W: 0,5 A, 120 V~/1 A, 24 V=
Additional power supply; potential-free tension, e.g. from a Behnke power supply unit
Direct call buttons 1 and 2
Connect the telephone line to the screw
terminals marked "Tel.". After connecting
the telephone line, the device will be set-up
automatically. During this process, the device
will produce a high-pitched tone for several
seconds.
Wire the relay to hold the open door function.
38
Connect the additional 15 V power supply if
necessary. An additional power supply is not
necessary to use the basic functions; only extra
features (e.g. illuminated labels, additional
amplifiers or recorded messages) require an
additional power supply.
Control contact
Rest contact
Operating contact
a-wire
Tel.
b-wire
-
15 V=
+
