TANGO

Remote Control Option

One of the options available for the TANGO is the ability to remotely use the Crossfade/Playback
section START/GO button and the Effect section START/STEP button.
There operation is identical to that button on the desk itself, and is detailed in the relevant
section of the manual. Neither button has preference over the other.

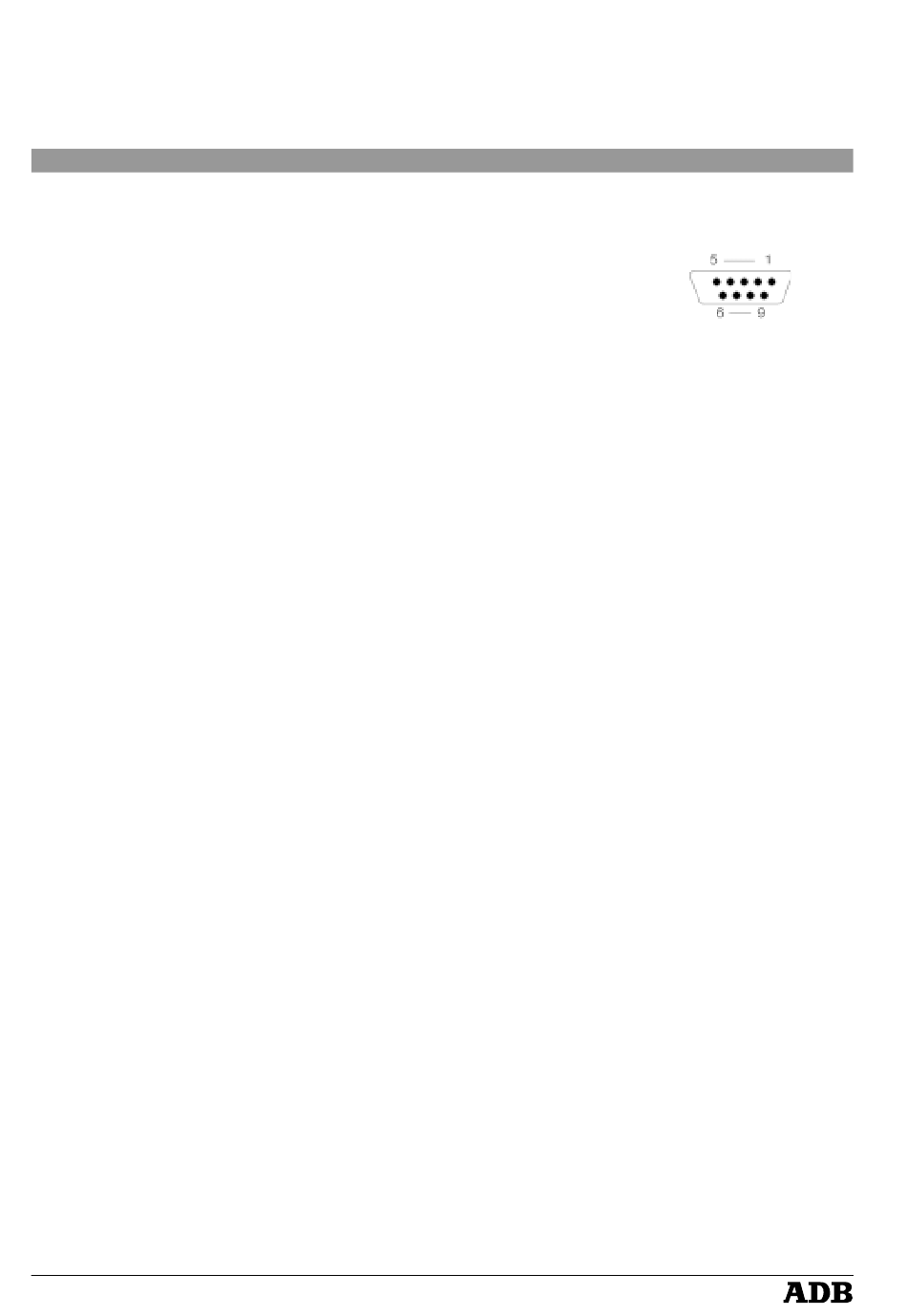

The remote control is plugged into the REMOTE socket (DE09) on the back panel.
The remote GO button will short pins 1 and 3 of the connector, when operated.
The remote START/STEP button will short pins 1 and 2 when used.
If either of the START/GO buttons (desk or remote) are pressed and held the operation of the
other button is not impaired, as it is the initial press that initiates the action. This is also true of
the START/STEP buttons.
Page 24
Revision : 004
1 = 0 V
2 = STEP/START
3 = GO
4-9 = 0 V
