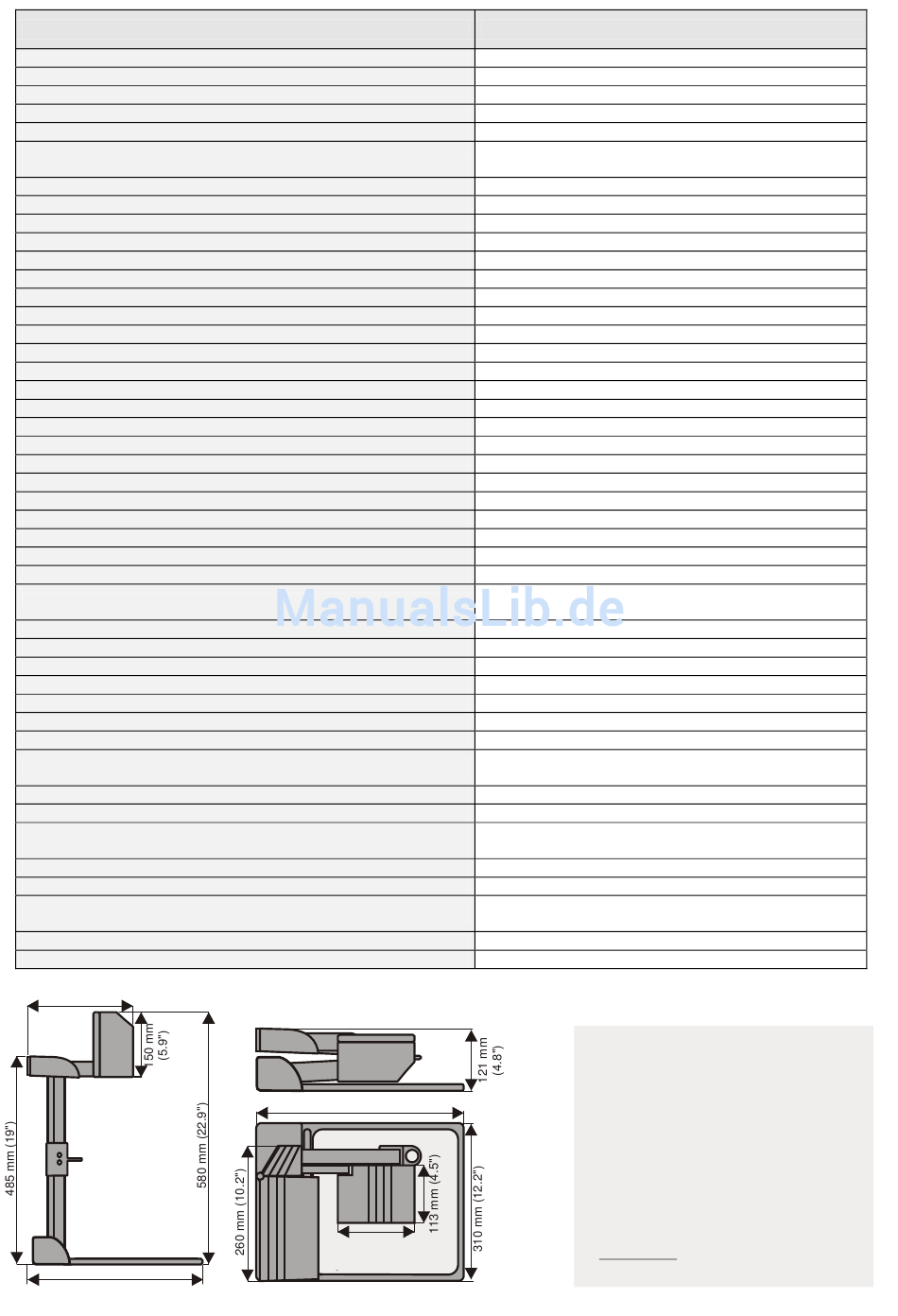

Technical Data
Camera
Output signals
Pictures per second (as picked up by the camera)
Horizontal resolution (Progressive Scan)
Vertical resolution (Progressive Scan)
Effective pixel
(=pixels which are actually used for the image information)
Total pixels of CCD
Color reproduction
Vertical image-frequency
Horizontal image-frequency
Signal format
Iris
White balance adjustment
Fokus
On screen menu with menu-reset function
Upgradeable firmware
Lens / zoom
Max object height on working surface
Max. pick-up area on working surface
Min. pick-up area on working surface (without digital Zoom)
Min. pick-up area on working surface (with digital Zoom)
Max object height outside of the working surface
Depth of focus (Depth of field) small Objects (42 x 33mm)
Depth of focus (Depth of field) large Objects (360 x 270mm)
Disturbing stray light
Blinding of audience or speaker
Reflection free area
Light source
USB-Software
Time for still image capture through USB software
Quick recordings outside of the working surface possible
Intelligent folding system
User programmable presets
Special working plate for transparencies
Image memory
Alternative image display
Inputs
Progressive scan outputs
USB-Port
RS232-Port
(serial protocol with position setting and status report)
Weight / Portability
Power (external power supply)
Supplied accessories
Optional accessories
Made in
235mm (9.2")
405 mm (15.9")
VZ-8light
1/3" 1-CCD progressive Scan
XGA (1024x768 Pixel), USB
20
640 lines
640 lines
810.000
840.000
very good colors
progressive Scan: 75 Hz or 60 Hz (switch able)
progressive Scan: 60,2 - 80 kHz
Non-Interlaced (progressive Scan)
automatic or manual
automatic or manual
automatic or manual
yes
yes (updates downloadable from www.wolfvision.com)
24 x Zoom (12x optical + 2x digital)
150mm in Tele position and 370mm in Wide position
length: 276mm, width: 370mm
33mm x 25mm
17mm x 13mm
unlimited
10mm
260mm
Almost none
none
284 x 230mm
high frequency fluorescent lamp (9W)
included on CD-ROM (for Windows 98/ME/2000/XP,
Updates available on www.wolfvision.com)
2 seconds
yes
yes - pneumatic arm
3 (plus 8 fixed) presets trough RS232
yes
1 image (Freeze-function)
negative, negative/blue, black/white
RGBHV (15-pin D-Sub-plug) for PCs
(the computer signal looped through)
RGBHV (15-pin D-Sub-plug)
yes (USB1.1)
9-pin D-Sub plug
(for external control and software updates)
4,5 kg, portable
Multi Range 100-240 V, Weight: 0.3kg
power cord, power supply, Instructions, XGA-cable,
carrying case
lightbox LB-7K, lightbox LB-38
Austria (EC)
405 mm (15.9")
150mm (5.9")
7
Specifications and availability subject to change !
Changing the lamp of the
Visualizer:
1. Remove the power cord of
the Visualizer.
2. Remove lamp housing glass.
(1 Screw)
3. Remove the safety clip
4. Change the lamp.
CAUTION: Hot when used!
Lamp type: Osram Dulux S/E
9W/21 or equivalent
