9
2 2
3
6
5
Connectors (3):
#11 External input for Computers (see page 3)
#13 USB-port (see page 3)
#15 Power connection 12V
Setting up
Power-on preset:
The power-on preset is automatically activated when switching on the unit. The settings are:
Zoom size approx. 20 x 15 cm (A5), Autofocus on, Autoiris on, top light on.
10
1 1
1 1
7
8
4

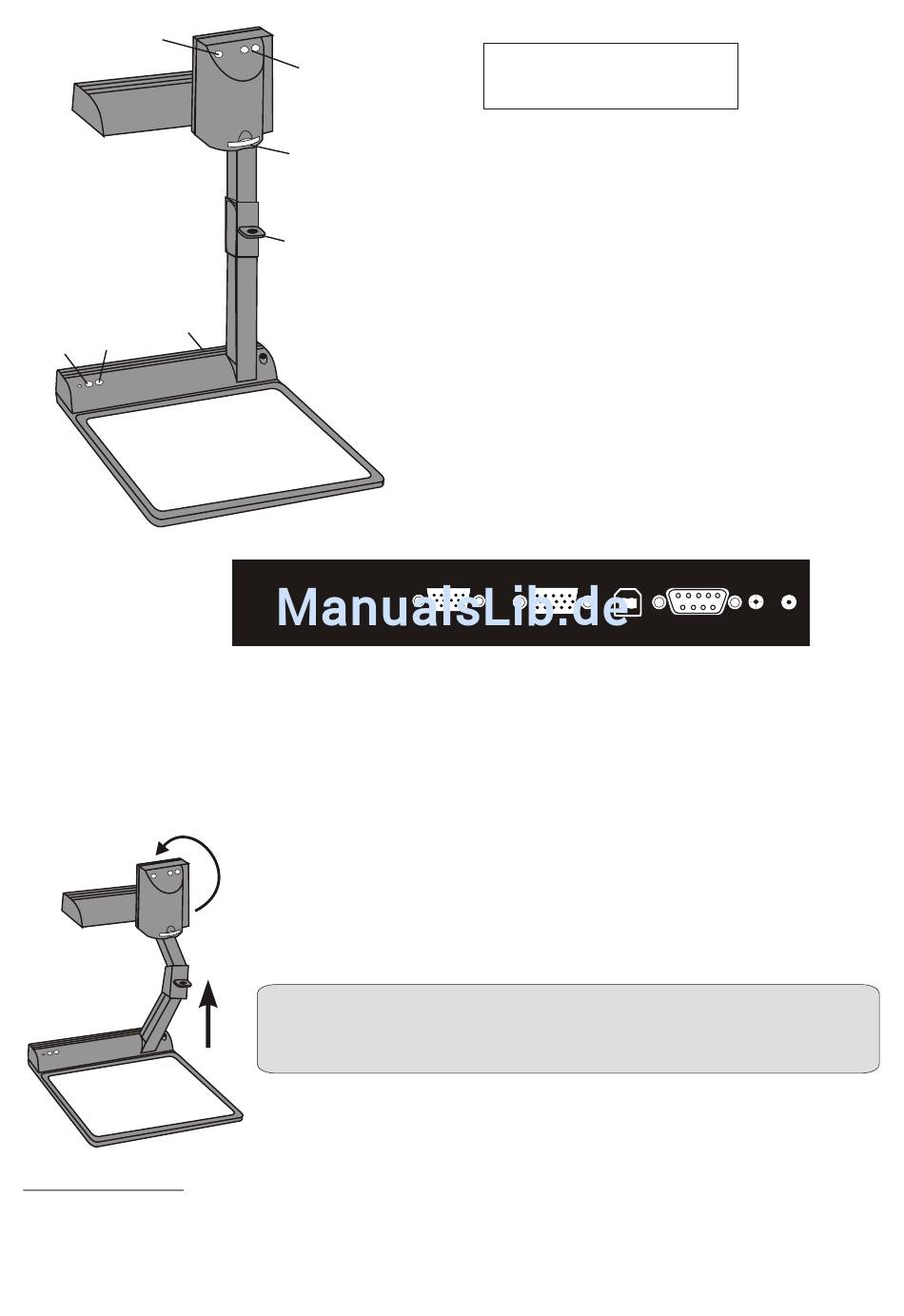

1. Pull the arm upwards using the special pull ring (#8)
2. Turn the camera head (#1) and point it at the working surface
3. Connect the power adaptor to the DC-input (#15).
4. Connect your output unit (projector, monitor, video conferencing
unit etc.) to the appropriate output of the Visualier (#12 or #13).
IMPORTANT:
For choosing the right output mode please read the detailled
description on page 3!
5. Switch on the Visualizer with the power switch (#5)
ENGLISH
#1 Camera head
#2 Light
#3 Connectors (on the back)
#4 Working surface
#5 Power on/off key
#6 Light key (also works as White
Balance key if pressed for 3
seconds - see page 5)
#7 Close up lens for camera
#8 Pull ring
#9 Auto focus on/off key
(a light above this key shows
that the auto focus is on)
#10 Zoom keys (if the Zoom keys
are pressed simultaneously with
the Auto fucus key (9) they work
as manual FOCUS keys.
XGA
EXTERN IN
11
12
#12
RGBHV output (switchable)
#14
Serial control input RS232 (see page 6)
#16
DC-output for lightbox (see page 3)
2
USB
RS 232
POWER
LB
13
14
15 16
