ENG man MITO-MINI 03
SOME SPECIAL FEATURES
Features of customised models may differ from those outlined in this manual. Any such particular features are described
in annexed documents like control layouts or wiring diagram of the receiver.

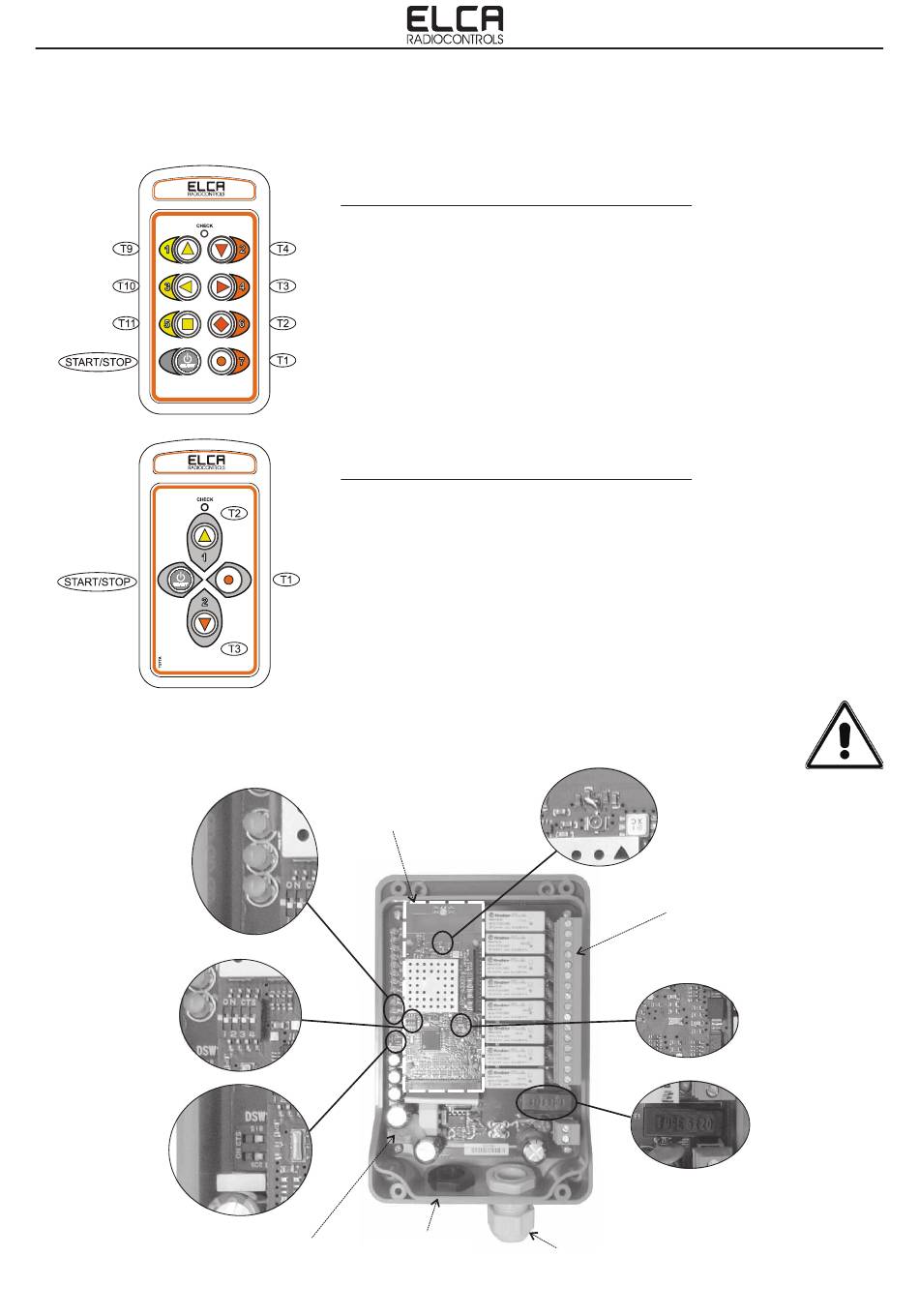

2.5 RECEIVING UNIT AR MITO-MINI

LEARN LIGHT
STATUS LIGHT
POWER LIGHT
DIP SWITCH
RADIO MUDULE
DIP SWITCH
MOTHER bOARD
START/STOP Option with 8 buttons configuration
Only in CONTINUOUS Transmission mode (CT).
START / STOP button activates the radio transmission upon the first pressure
and switches off on the next.
T1 operates just like any other command.
On the receiver, relay T12 is activated and remains held until the end of the
transmission.
START/STOP Option with 4 buttons configuration
Only in CONTINUOUS Transmission mode (CT).
START / STOP button activates the radio transmission upon the first pressure
and switches off on the next.
T1 operates just like any other command.
On the receiver, relay T12 is activated and remains held until the end of the
transmission.
RADIO MODULE
MOTHER bOARD
CAbLE GLAND
OPTION
M16
CAbLE GLAND
OPTION
- Page 6 -
Radio Remote Control System MITO-MINI
EXTERNAL
ANTENNA
CONNECTOR
TERMINAL bLOCK
RADIO MODULE
M20
CHECK LIGHT
FUSE ON
RELAY T1
