Mounting The Sensor - wtw SenTix FET-D Bedienungsanleitung

®

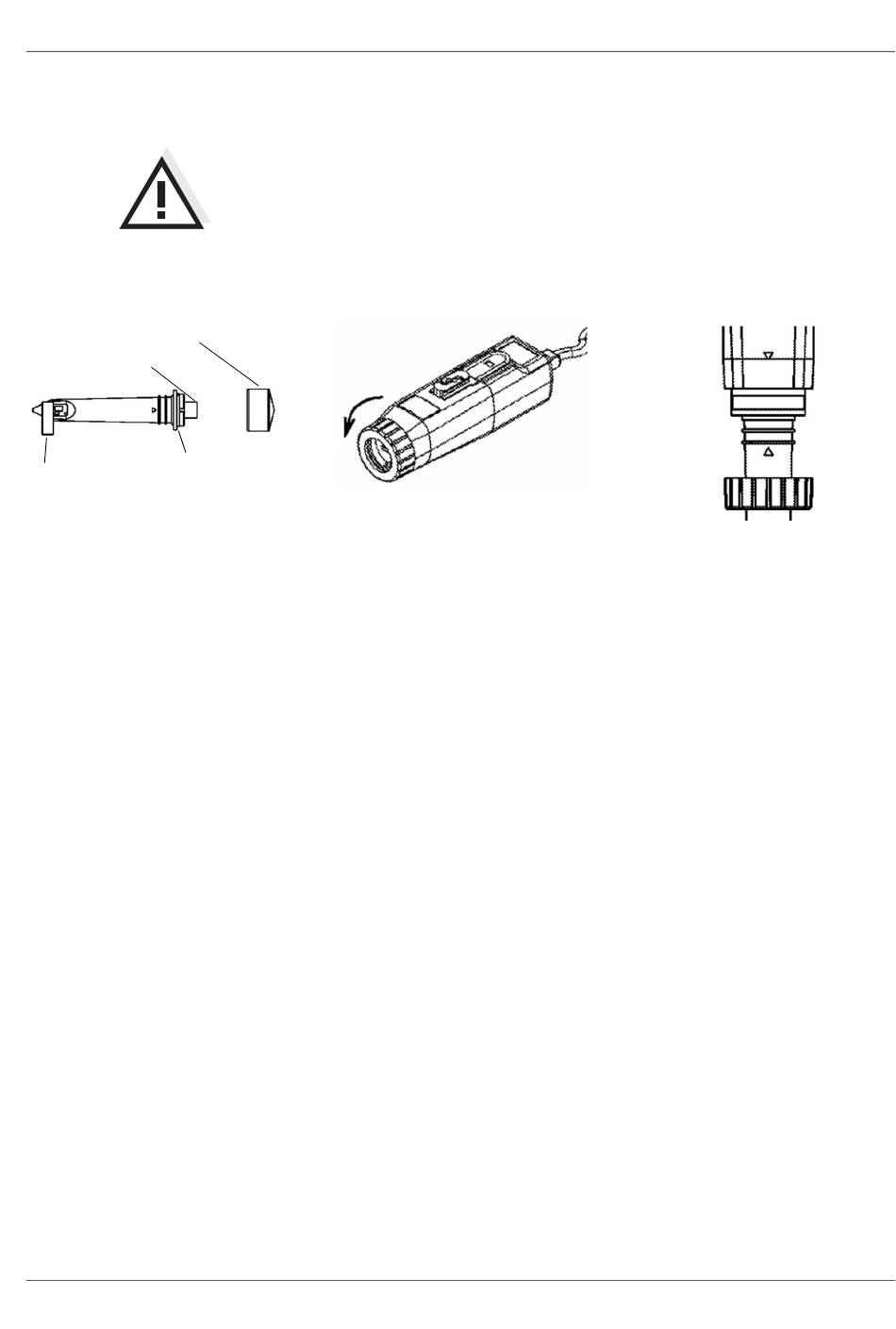

SenTix FET-D/B
Protection cap
Plug-in connector
O-ring
Junction seal
Pull of the junction seal;
remove the protection cap. Do
not touch the plug-in
connector when doing so.
Make sure the O-ring seats
without being twisted.
3.3

Mounting the sensor

Warning
Do not touch the plug-in connector of the measuring tip. Electrostatic
charge can cause damage.
Mount the measuring tip and converter as follows:
Unscrew and remove the cap
nut from the converter.
Commissioning
Carefully insert the measuring
tip with the plug-in connector
in the converter. When doing
so make sure the marks on
the converter and the
measuring tip point towards
each other. Put the cap nut on
the sensor again and screw it
tight.
