NOTE
When locking, the tightening torque must not be shunted through the
transducer.
When using a knuckle eye, the following mounting dimensions apply:
Rigid
force transfer

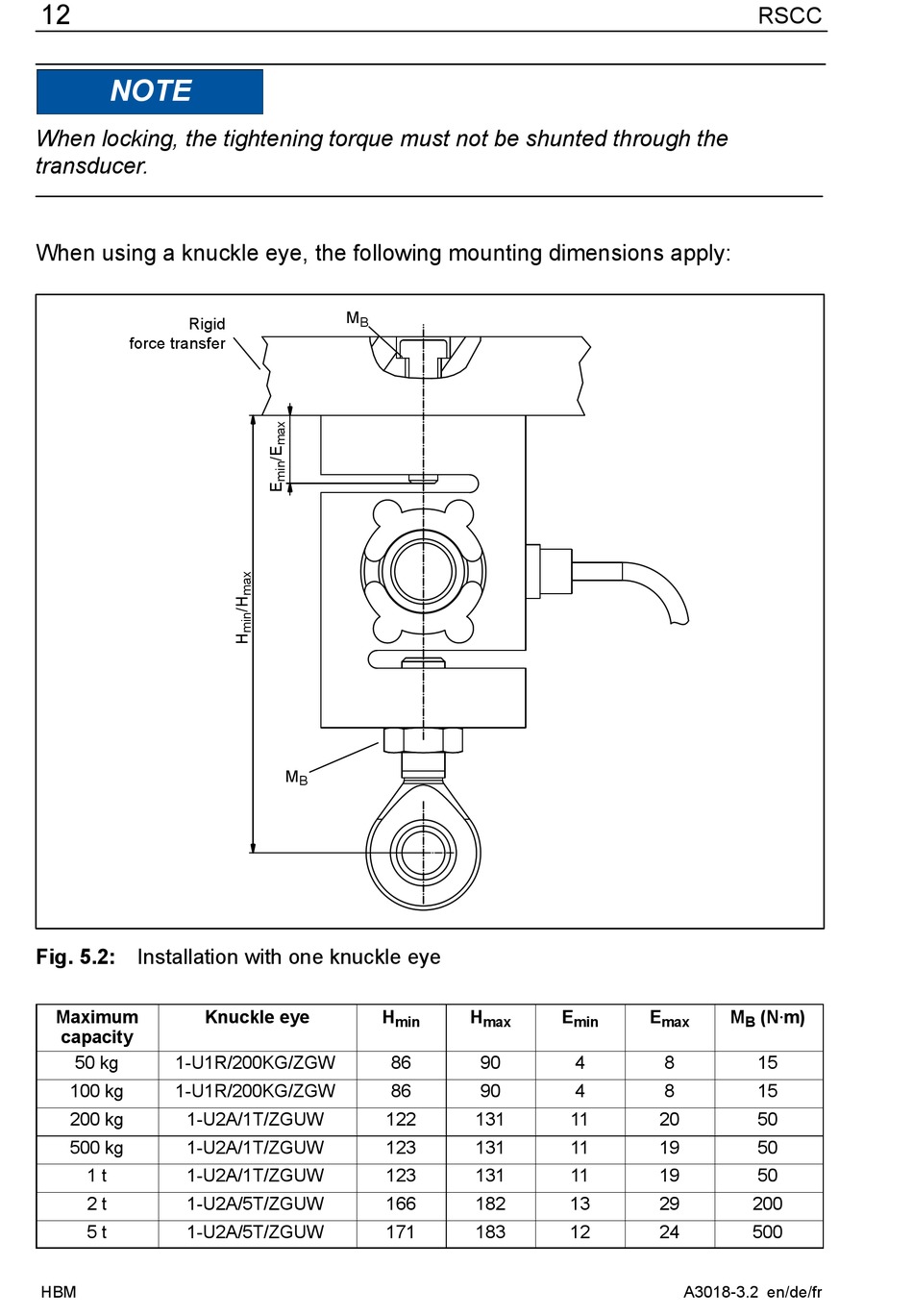

Fig. 5.2: Installation with one knuckle eye
Maximum Knuckle eye
capacity
50 kg 1-U1R/200KG/ZGW
100 kg 1-U1R/200KG/ZGW
200 kg 1-U2A/1T/ZGUW
500 kg 1-U2A/1T/ZGUW
1 t 1-U2A/1T/ZGUW
2 t 1-U2A/5T/ZGUW
5 t 1-U2A/5T/ZGUW
HBM
M
B
M
B
H
min
86
86
122
123
123
166
171
H E
max min
90 4
90 4
131 11
131 11
131 11
182 13
183 12
RSCC
E M (NVm)
max B
8 15
8 15
20 50
19 50
19 50
29 200
24 500
