Acer WLAN-G-RU2 Benutzerhandbuch Seite 38

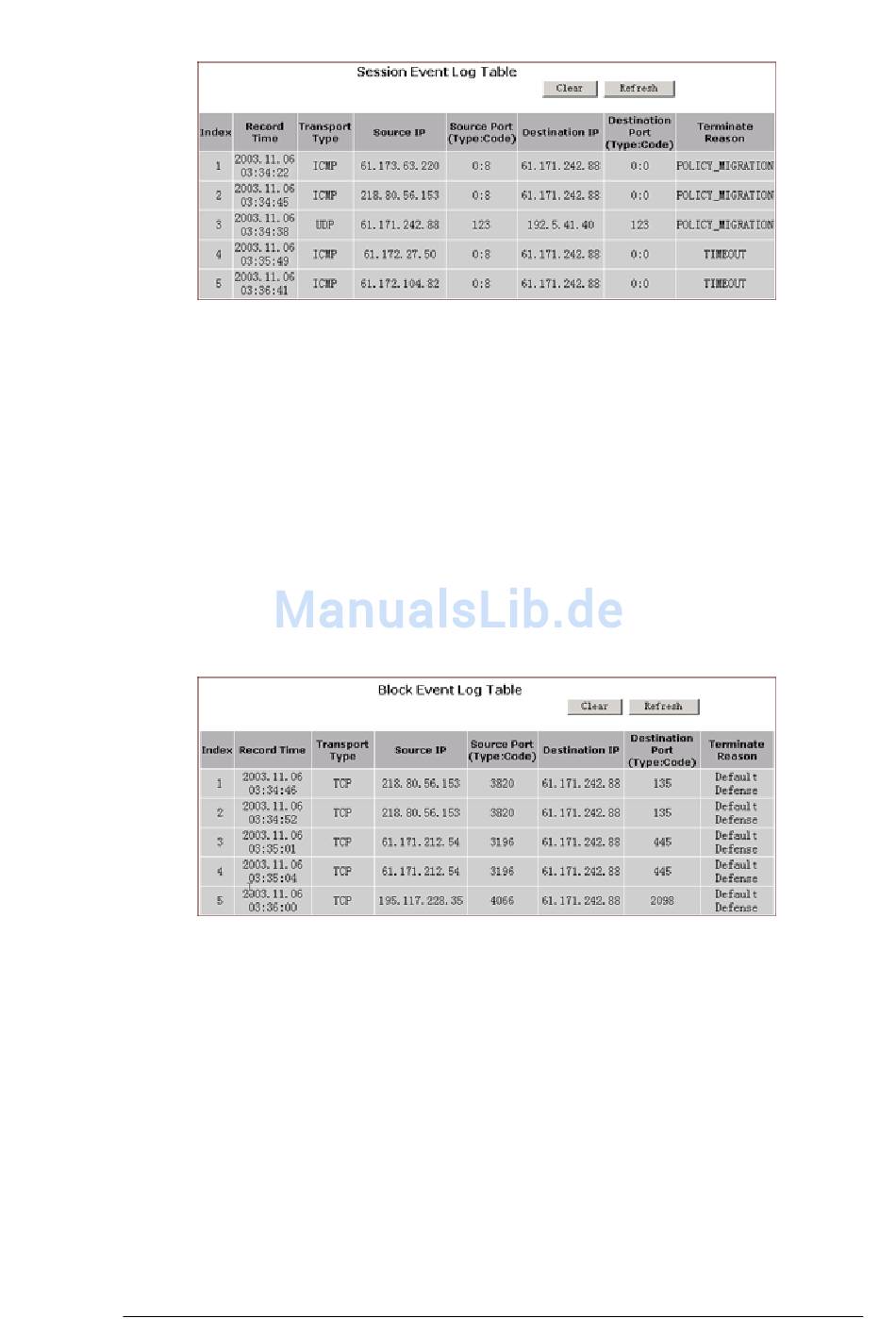

FIGURE 4-21: Session Event Log Table
4.8.2.2. Optional. Click Refresh to obtain the most current data.
4.8.2.3. Optional. Click Clear to delete all the log information.
4.8.3. To View Block Event Log:
4.8.3.1. Click Block Event Log on the Log page.
The Block Event Log Table appears, including each block event
entry information like Record Name, Transport type, Source IP and so
on, seen in FIGURE 4-22:
FIGURE 4-22: Block Event Log Table
4.8.3.2. Optional. Click Refresh to obtain the most current data.
4.8.3.3. Optional. Click Clear to delete all the log information.
4.8.4. To View Intrusion Event Log:
4.8.4.1. Click Intrusion Event Log on the Log page.
The Intrusion Event Log Table appears, including each intrusion
event entry's Record Name and Intrusion Type, seen in FIGURE 4-23:
33
