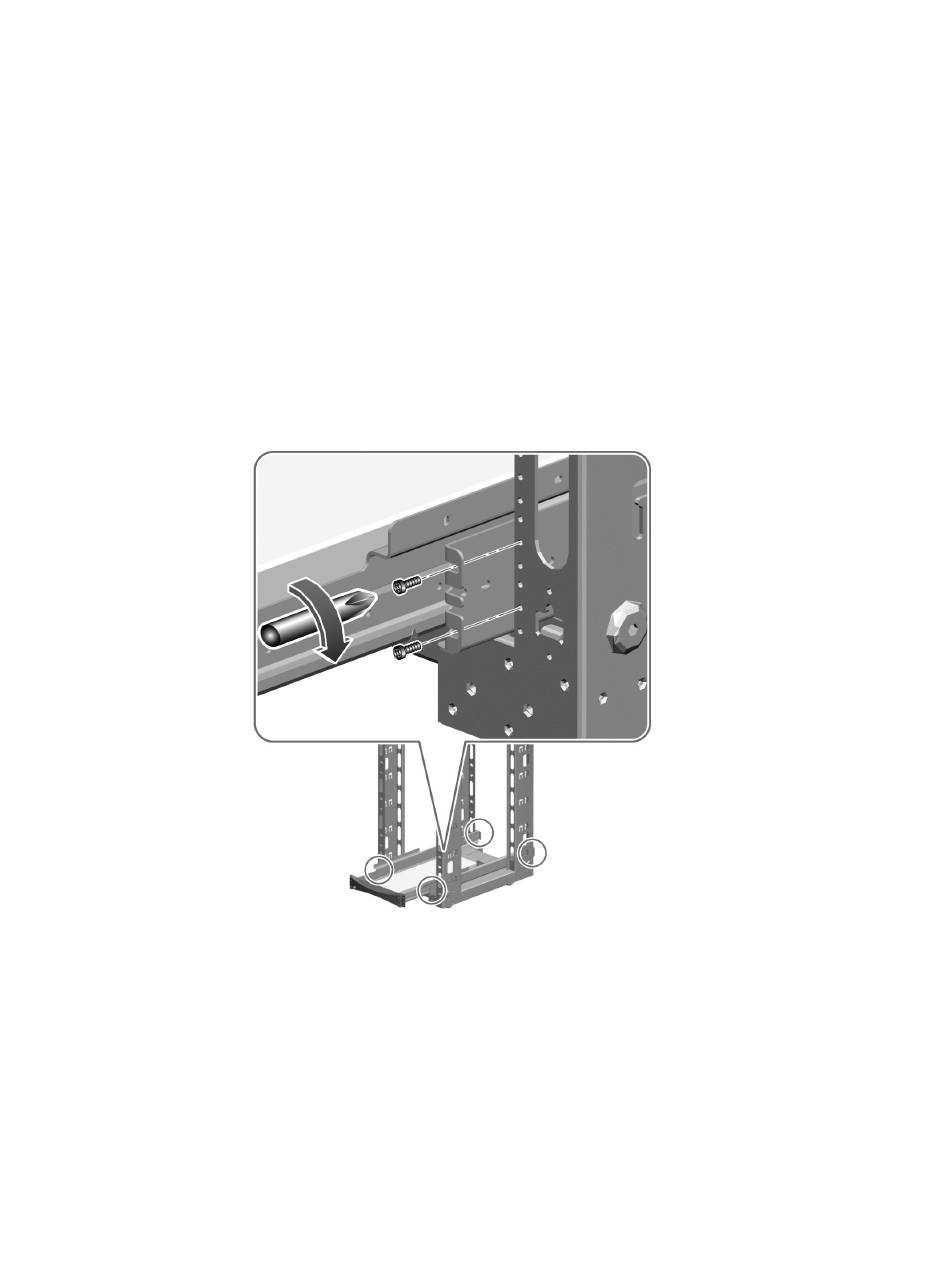

b. Attach the front brackets to the front rails of the cabinet using four 10-32
screws.
Align the lower hole of each front bracket with the front rail holes you marked in
"Determine the Vertical Position of the Server in the Cabinet" on page en-19.
Secure the front brackets using one 10-32 screw in the lower hole of each bracket.
Finger-tighten the screws.
Align the upper hole of each front bracket with the corresponding hole in the
cabinet rail. Secure the brackets to the rail using one 10-32 screw in each upper
hole. Finger-tighten the screws.
Do not tighten the screws completely until all the screws are in place and the tray
assembly is level.
Installing the Server Into the Cabinet en-21
