SOMFY animeo Gebrauchsanweisung Seite 3

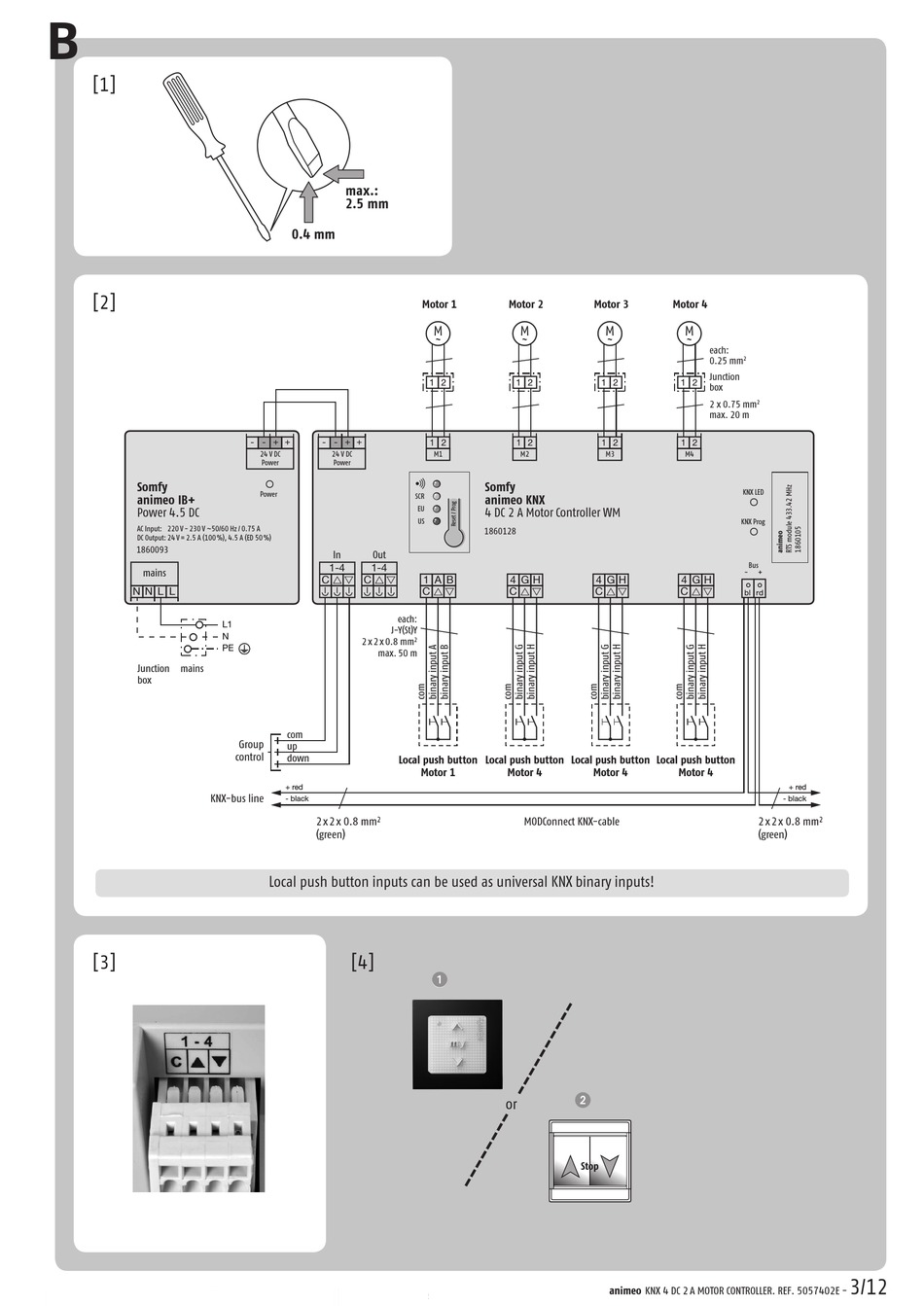

B
[1]
[2]
Somfy
animeo IB+
Power 4.5 DC
AC Input: 220 V - 230 V ~50/60 Hz / 0.75 A
DC Output: 24 V = 2.5 A (100 %), 4.5 A (ED 50 %)
1860093
mains
N N L L
Junction mains
box
KNX-bus line
[3]
max.:
2.5 mm
0.4 mm
- - + + - - + +
24 V DC 24 V DC
Power Power
Power
In Out
1-4 1-4
C C
L1
J-Y(St)Y
N
2 x 2 x 0.8 mm
PE
max. 50 m
com
Group
up
control
down
+ red
- black
2 x 2 x 0.8 mm
2
(green)
Local push button inputs can be used as universal KNX binary inputs!
[4]
Motor 1 Motor 2
M M
˜ ˜
1 2 1 2
1 2 1 2
M1 M2
Somfy
SCR
animeo KNX
EU
4 DC 2 A Motor Controller WM
US
1860128
1 A B 4 G H
C C
each:
2
Local push button Local push button Local push button
Motor 1 Motor 4
MODConnect KNX-cable
1
or
Motor 3 Motor 4
M M
˜ ˜
each:
0.25 mm 2
Junction
1 2 1 2
box
2 x 0.75 mm
max. 20 m
1 2 1 2
M3 M4
KNX LED
KNX Prog
Bus
-
4 G H 4 G H
C C
bl rd
Local push button
Motor 4 Motor 4
2
Stop
Stop
animeo KNX 4 DC 2 A MOTOR CONTROLLER. REF. 5057402E -
2
+
+ red
- black
2 x 2 x 0.8 mm
2
(green)
3/12
