Nominal voltage
Switched current
System of protection
Protection class
(In accordance with the assembly
specifications)
Permissible ambient temperature
Running time roller shutters
Running time Venetian blinds
Type of installation
Radio frequency
System of protection:
Permissible ambient temperature:
Type of installation:
Cable diameter:
Dimensions (B x H x D):

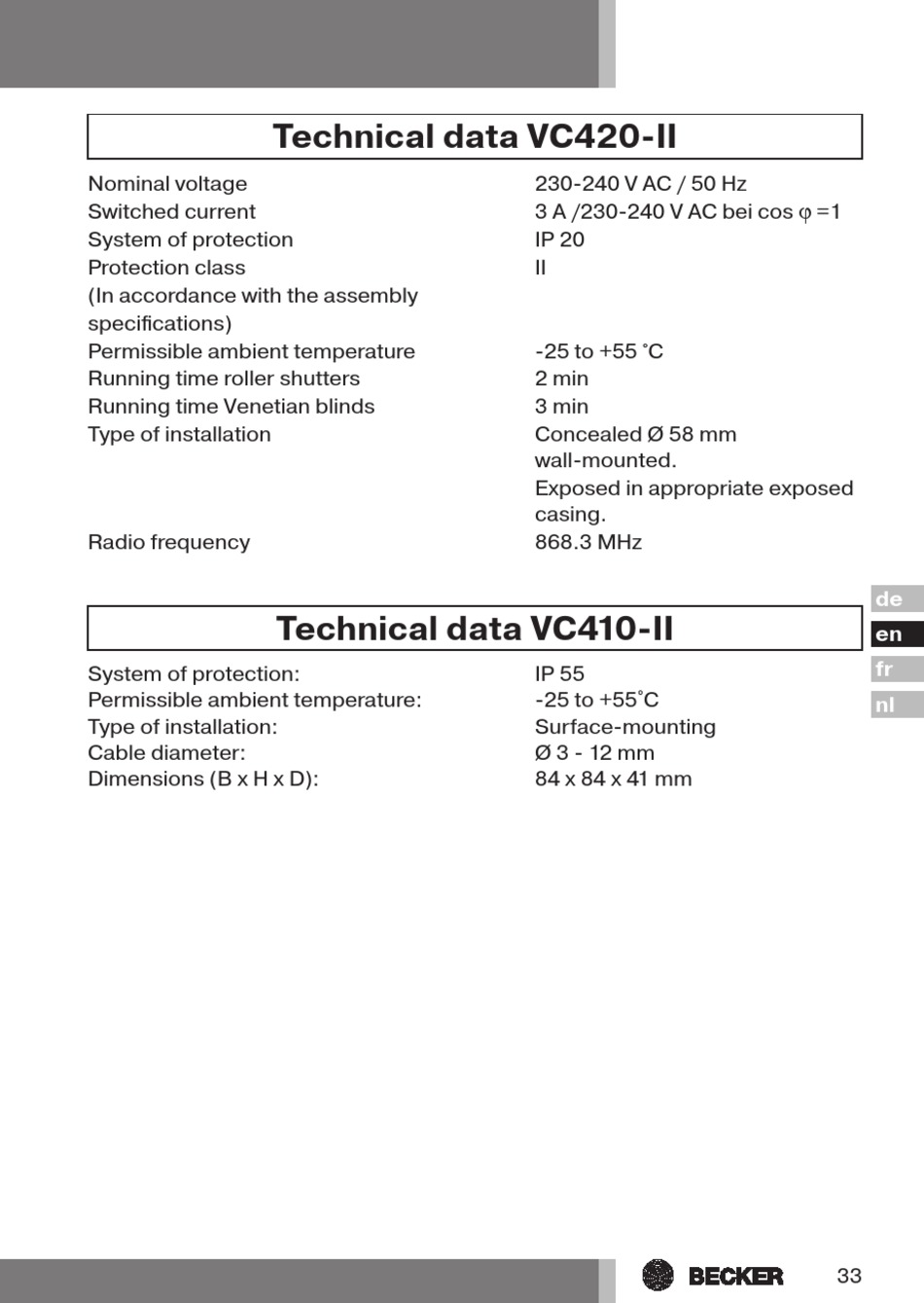

Technical data VC420-II

Technical data VC410-II

230240 V AC / 50 Hz
3 A /230240 V AC bei cos ϕ =1
IP 20
II
25 to +55 °C
2 min
3 min
Concealed Ø 58 mm
wallmounted.
Exposed in appropriate exposed
casing.
868.3 MHz
IP 55
25 to +55˚C
Surfacemounting
Ø 3  12 mm
84 x 84 x 41 mm
de
en
fr
nl
33
