17 Dimensions and connection drawings SPM 2000 LAN

1 Module slots
(left side module slot 1
right side module slot 10)
2 Display for programming
and connection for CopyKey
(Control panel removable)
The mains connection 230 V~ is located on the back of the base unit.

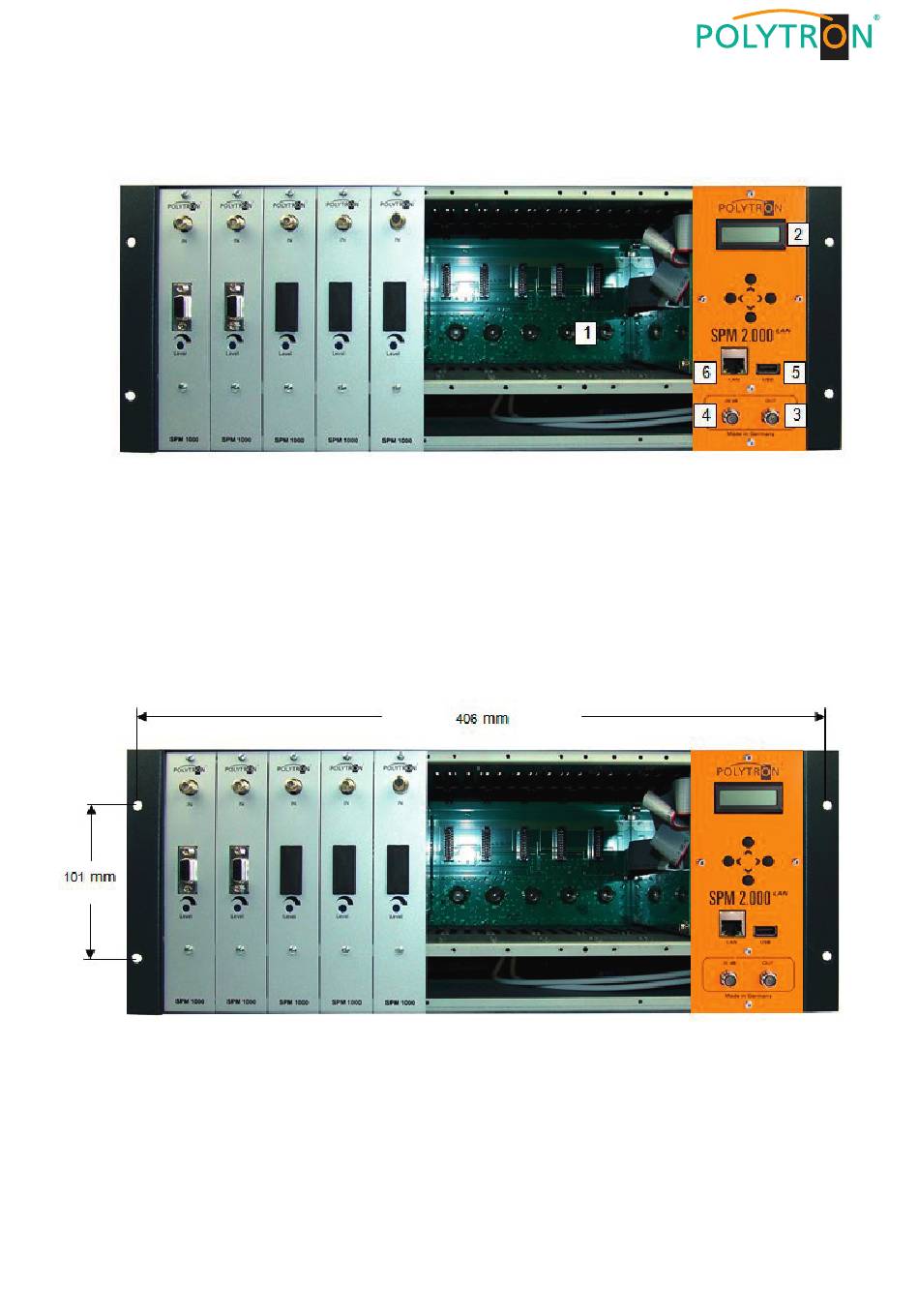

Figure 9 Control- and display elements, connections
Figure 10 Dimensions of the fixing brackets
3 Output
4 Test output (approx. -20 dB)
5 USB port
6 LAN port
25
