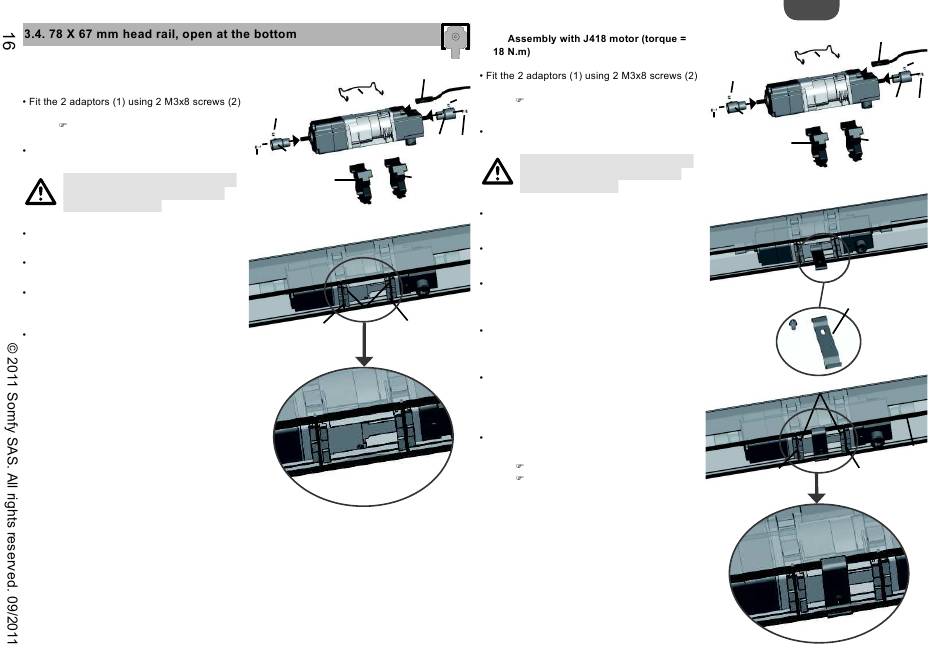

3.4.1. Assembly with J406/J410 motors (6 or
10 N.m torque)
on the motor shaft.
Tightening torque = 1.1 N.m
Connect the power supply cable (3) to the
motor.
Ensure that the cable does not hinder
the rotating part of the motor or the
Venetian mechanism.
Fit the two head rail adaptors (8) on the motor.
Insert the motor in the head rail (4).
Using the clip (5), fix the motor in the head
rail (4).
The shaft can be fixed in the adaptor using a
grub screw (7).
3
5
7
1
2
8
8
8
5
3.4.2.
on the motor shaft.
7
Tightening torque = 1.1 N.m
Connect the power supply cable (3) to the
1 2
motor.
Ensure that the cable does not hinder
the rotating part of the motor or the
Venetian mechanism.
Fit the two head rail adaptors (8) on the motor.
Insert the motor in the head rail (4).
Using the clip (5), fix the motor in the head
rail (4).
The shaft can be fixed in the adaptor using a
grub screw (7).
Fit the additional bracket (9) on the head
rail (4) + motor assembly, as shown on the
diagram.
Fix the bracket (9) on the motor with an M5 x
10 mm screw.
Tightening torque = 4 N.m aximum
The screw must be fully tightened
on the bracket (9).
EN
3
5
7
1
2
8
8
9
8
5
5
7
1 2
7
