2.5
Ensure that the distance from the spindle to the pivot point of the tonearm is exactly 222 mm.
Please use the supplied alignment gauge or for more accurate adjustment the professional cartridge
alignment gauge from Clearaudio (Art. No: AC005/IEC
After you have confirmed the correct position, re-tighten the arm base.
222 mm

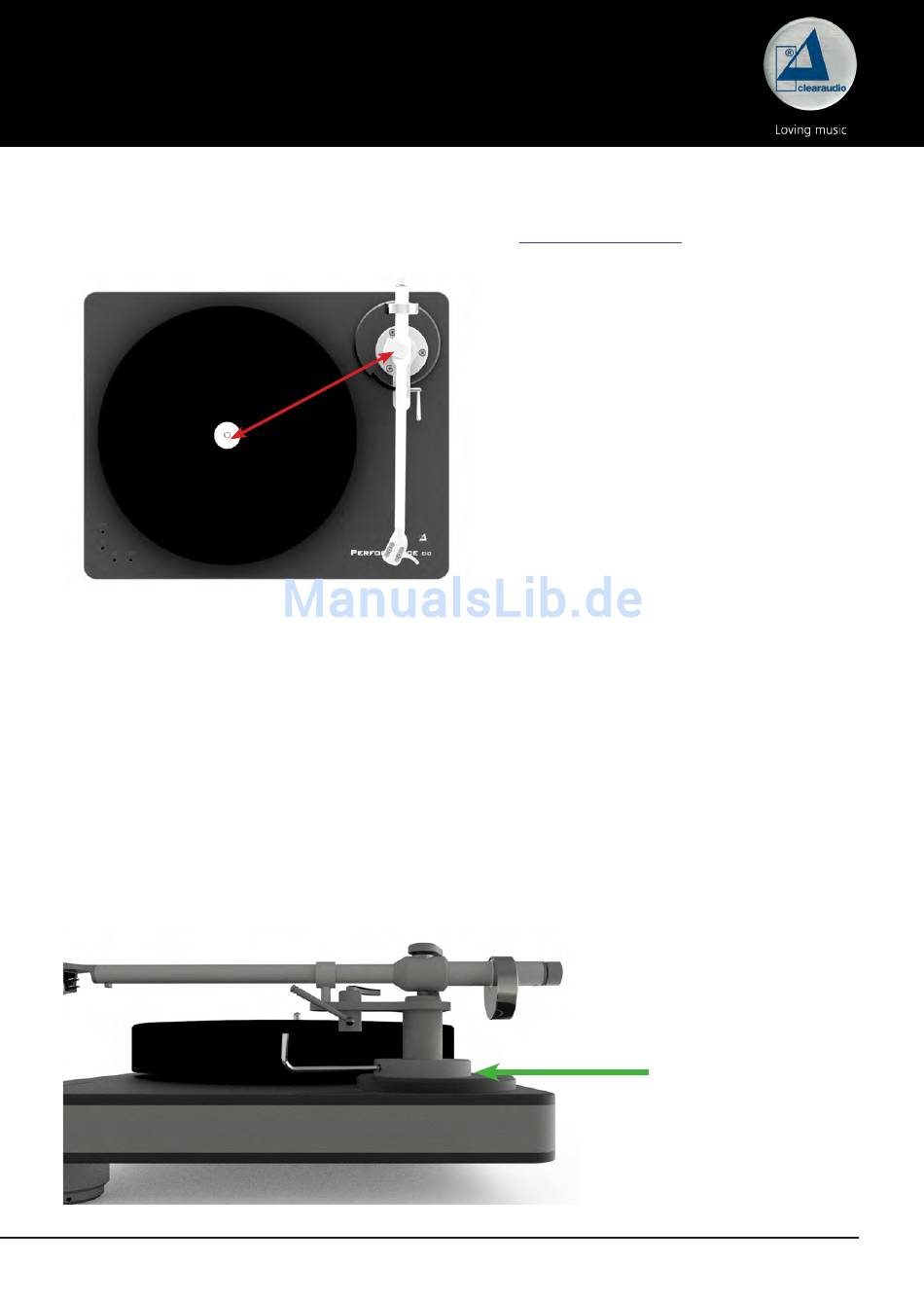

Pic. 7: Distance from pivot to stylus

2.6 Further adjustments

2.6.1 Tracking force setup
The small knob on the back end of the armwand is used to adjust tracking force.
Always check or adjust the tracking force
manufacturer`s specifications. Please ensure that the height of the measuring platform on your
tracking force gauge is the same height as a record to get an accurate measurement.
Smart Stylus Gauge
The Clearaudio
2.6.2 Adjustment of the tonearm height (Vertical-Tracking-Angle / VTA)
You can change the height of your tonearm by loosening the two locking screws on the side of
the arm base (Pic. 8). For the adjustment please put a record on your turntable. After loosing the
screws, move the arm up or down to adjust the tonearm tube so that it is parallel to the record!
Tighten both screws when finished. Please remember to re-check tracking force after adjusting VTA.
Pic. 8: Adjustment of the tonearm height
Made in Germany
www.analogshop.de
without a record on the platter
Weight Watcher
or Clearaudio
).
and according to the
are recommended.
7
