2.6.3 Adjustment of cartridge and tonearm

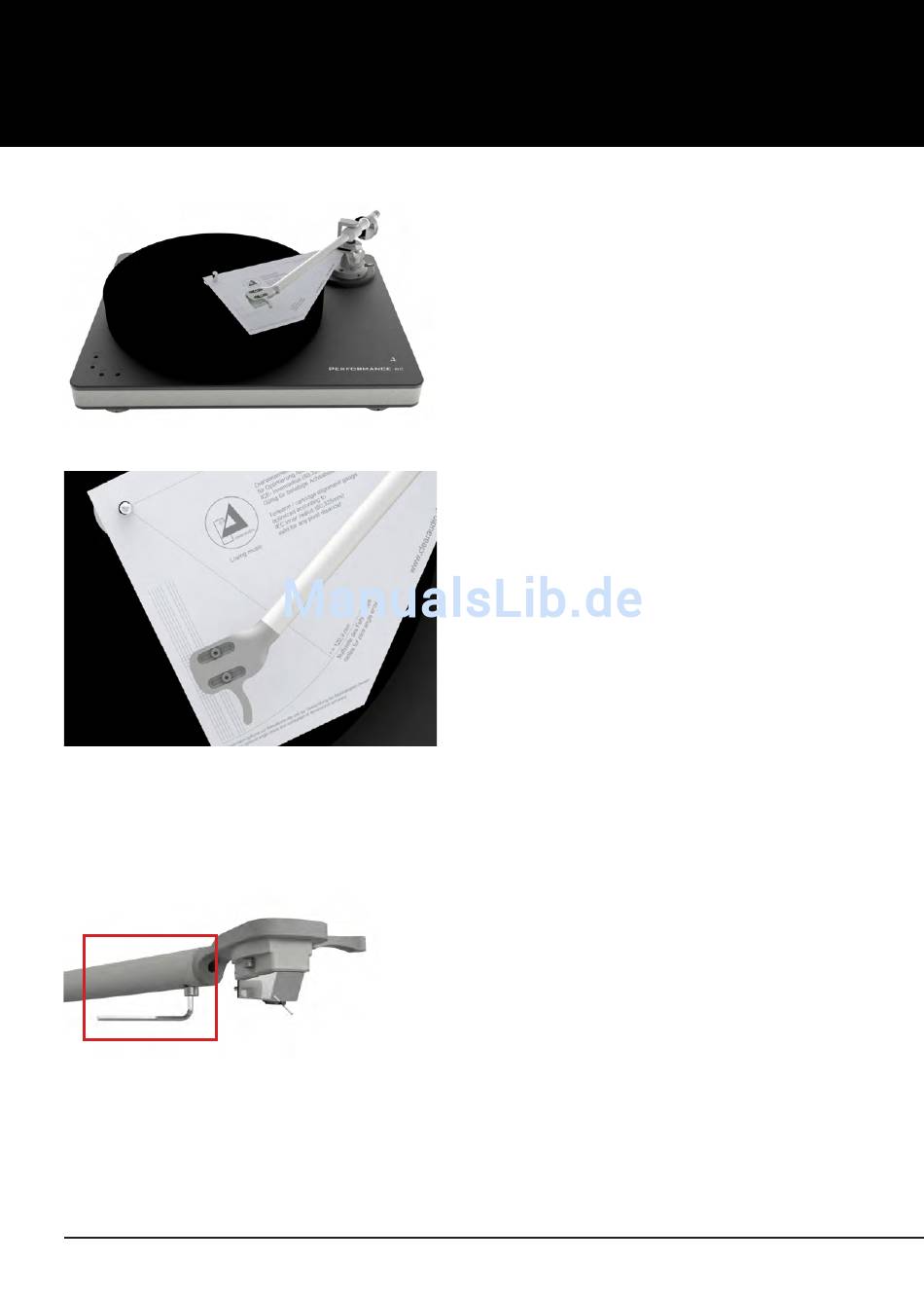

Pic. 9: Alignment of the tonearm
Pic. 10: The tonearm tube must be absolutely parallel
During final tonearm and cartridge installation, always be sure to view from directly above the
alignment gauge, to avoid any parallax errors.
2.6.4. Adjustment of the azimuth
Pic. 11: Azimuth adjustment
is finished, lock the screw on the under side of the arm tube near the headshell.
(Attention: Do not loose the screw completly!) So that the the headshell with the mounted cartrdige
can be turned around the longitudinal axis. During these settings, you should view the tonearm and
the cartridge always from above to avoid parallax errors. After finding the correct position with the
headshell, gently tighten the screw without changing the selected position.
8
For the further setup of the tonearm, you need the
supplied cartridge alignment gauge. Slide the gauge
over the spindle of the turntable platter and turn
the platter into the position as shown on the
beneath picture (Clearaudio emblem shows to the
spindle). Lower the cartridge and place the diamond
stylus of the cartridge on the reference point of the
alignment gauge, making sure that the edges of the
tonearm tube are absolutely parallel to the marked
lines printed on the cartridge alignment gauge.
For this adjustment it is necessary to take a look
directly from above the tonearm and the alignment
gauge.
If you have to change the position of the stylus you
can loosen the hex screws on the top of the
tonearm`s headshell and move the cartridge into
the corresponding position. Please make sure that
the front of the cartridge is parallel to the marked
lines of the cartridge alignment gauge.
Once correctly aligned lock the position with the
screws in the headshell.
The azimuth indicates the angle of the stylus relative to
the record, viewed from the front.
It should be exactly 90°.
The Azimuth is already preset at factory. If you need to
change the azimuth, please loosen the screw on the under
side of the tonearm near the headshell using the 1.5 mm
hex key (Pic 11).
Now you can change the azimuth. Once the adjustment
