User manual / Bedienungsanleitung
2.4
Ensure that the distance from the spindle to the pivot point of the tonearm is exactly 222 mm.
Moving the tonearm base in one direction or another will allow you to locate the correct position.
After you have reached the correct position, tighten the tonearm base again.
Please use the delivered alignment gauge or for more accurate adjustment the professional cart-
ridge alignment gauge from Clearaudio (Art. No.: AC005 www.analogshop.de ).

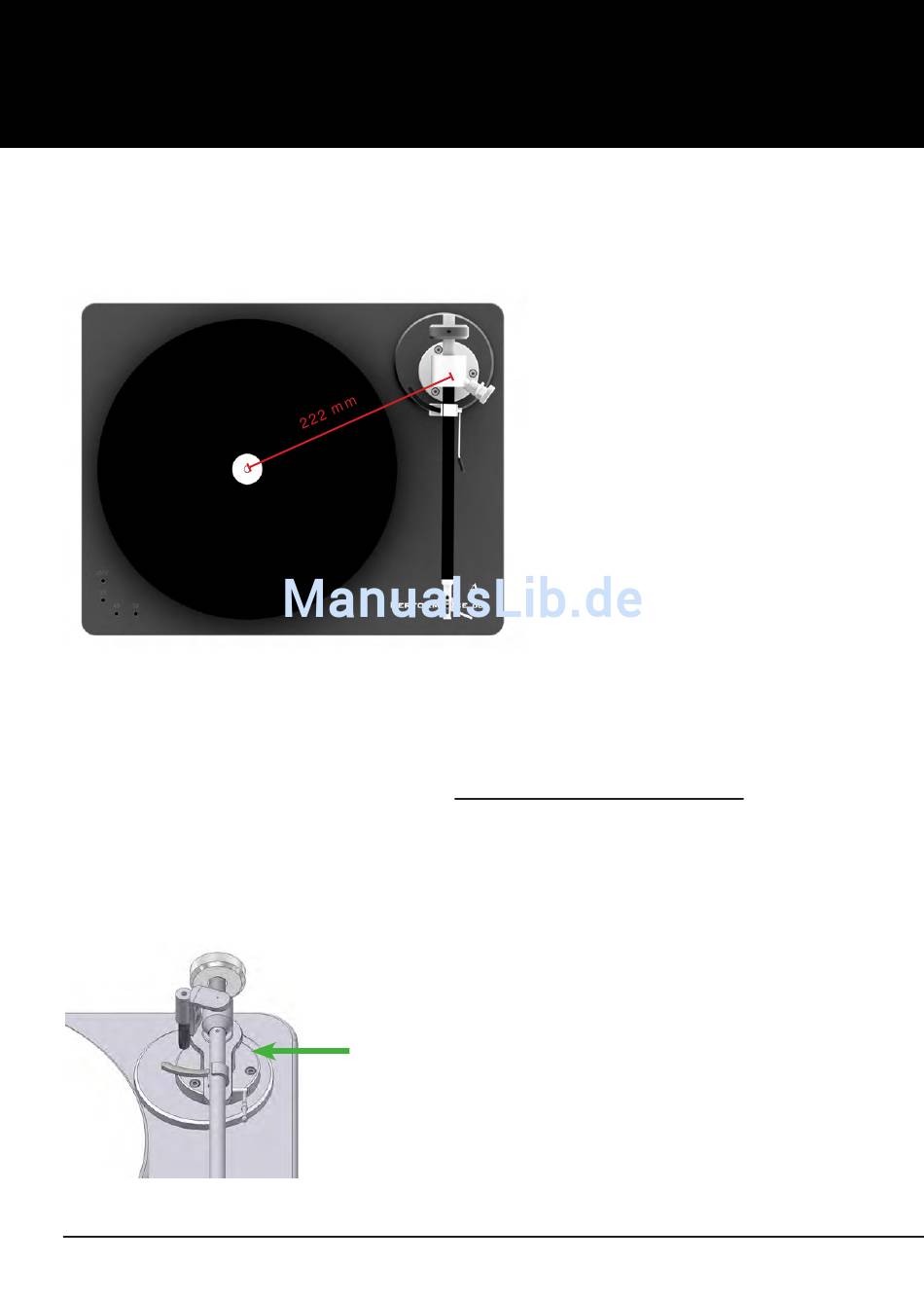

Pic. 6: Distance from pivot to stylus

2.5 Further adjustments

2.5.1 Tracking force pre-set up
Please check or adjust the tracking force always without a record on the platter! and according
to the cartridge manufacturer`s specification. Please ensure that the height of the measuring plat-
form on your tracking force gauge is the same height as a record to get an accurate measurement.
The Clearaudio Smart Stylus Gauge or Clearaudio Weight Watcher are recommended.
2.5.2 Adjustment of the tonearm height (Vertical-Tracking-Angle / VTA)
You can change the height of your tonearm by loosening the two locking screws on the side of the
the tonearm tube parallel to
Pic. 7: Adjustment of the tonearm height
6
tonearm mounting base (Pic. 7). After loosing the screws, you
can move the arm up or down to achieve the required height.
Tighten both screws when finished. Please pay attention to adjust
the turntable chassis! Re-check tracking force after adjusting VTA.
© clearaudio electronic GmbH, 2017/06
