Do not turn the headshell, when the cartridge is mounted.
Lift the cartridge from the record before adjusting the azimuth and check the parallelism
again afterwards.

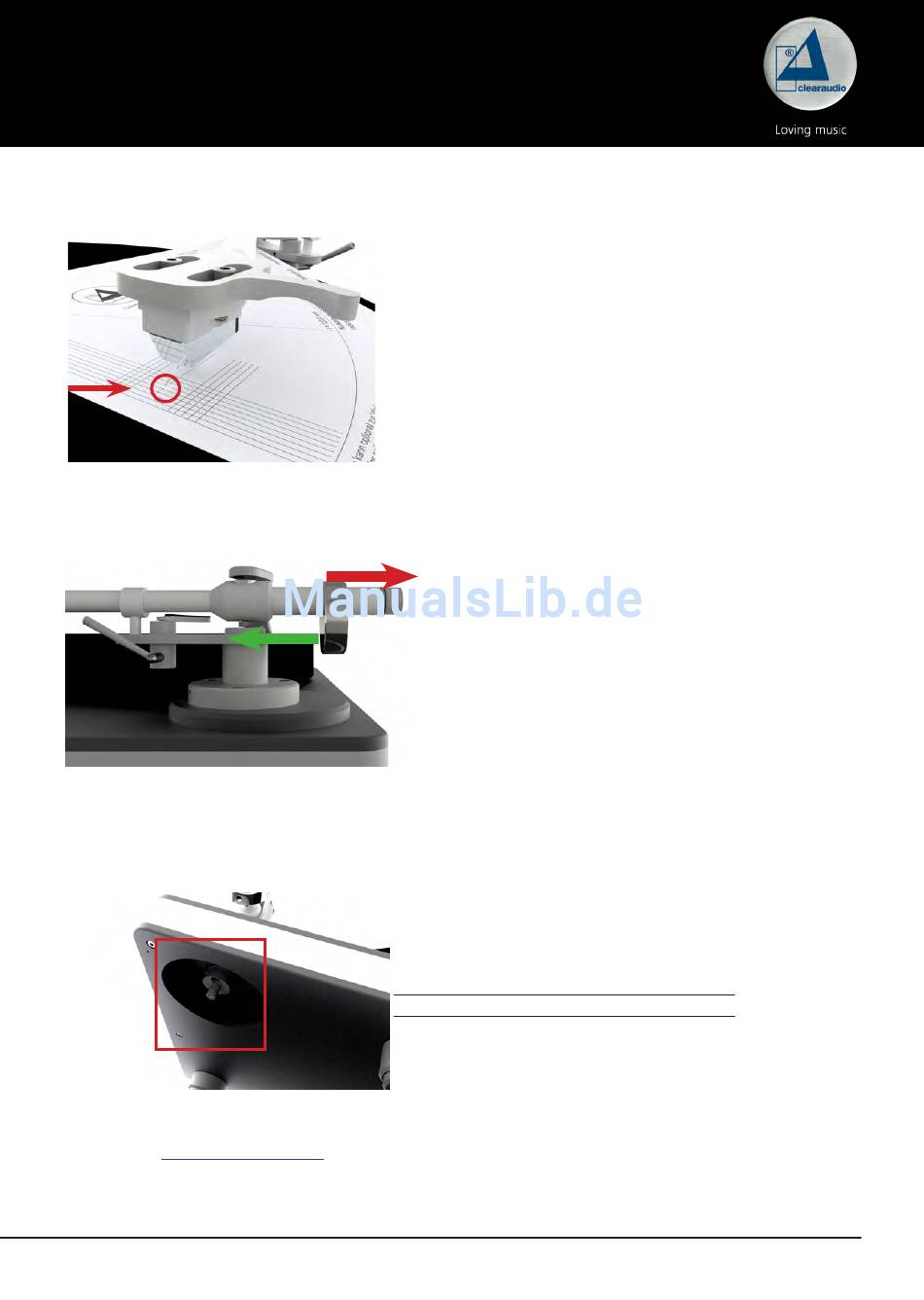

Pic. 12: Stylus tip on reference point
2.6.5. Adjustment of the Tracking force
The small knob on the back end of the armwand is used to adjust tracking force.
Pic. 13: Adjustment of the tracking force
2.6.6 Adjustment of the Anti-Skating
You will find the Anti-skating adjustment wheel on the bottom of the tonearm (Pic. 14).
The factory installation is preset at a tracking force of 2.4 g and marked with a black stripe on the
bolt (viewed from below). You can change your Anti-Skating:
Pic. 14: Adjustment of the Antiskating
For a perfect Anti-Skating adjustment we recommend the Clearaudio
available at www.analogshop.de
The general setup is now finished.
Now you can connect your
Made in Germany
The installation is correct when the armtube is parallel to
the marked lines on the gauge, the diamond tip is on the
reference point and the leading edge of the cartridge is
parallel to the lines on the gauge.
Finally lock all screws that had been involved during the
adjustments.
Now you can adjust the final tracking force according to
the manufacturer`s user manual.
red arrow (to the end of the tonearm)
= lesser tracking force ->
turn the knob clockwise
green arrow (to the beginning of the
tonearm)
= more tracking force ->
turn the knob anti-clockwise
Clockwise (max. 5 turns) = more Anti-Skating
Anticlockwise (max. 5 turns) = less Anti-Skating
With 4 turns = Tracking force is 2.2 grams
With 3 turns = Tracking force is 2.4 grams
or contact your nearest dealer or distributor.
Clarify
tonearm to the phono input of your phono-preamplifier.
Test Record
(LPT43039)
9
