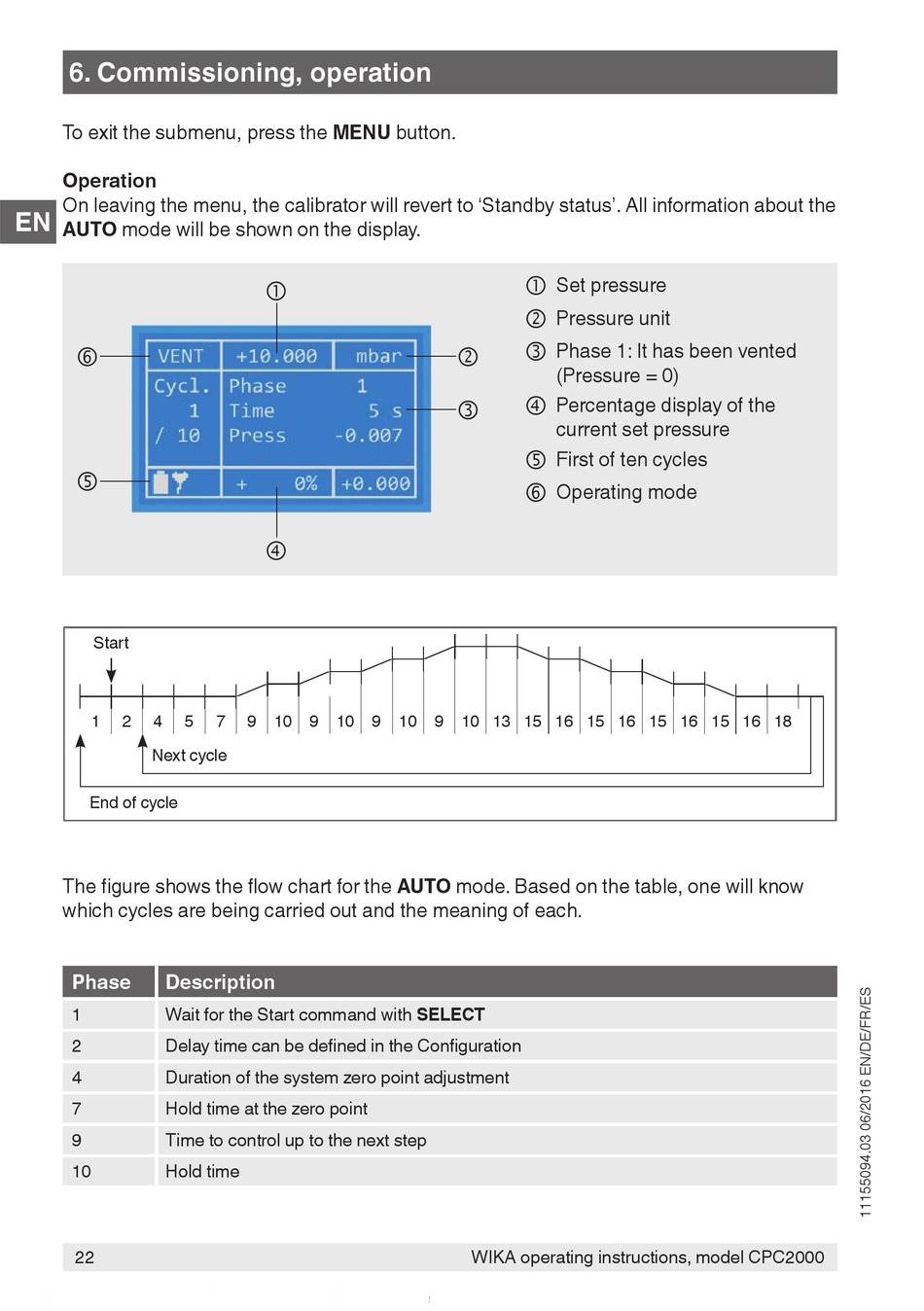

6. Commissioning, operation
To exit the submenu, press the MENU button.
Operation
On leaving the menu, the calibrator will revert to 'Standby status'. All information about the
EN
AUTO mode will be shown on the display.


Start
1 2 4 5
Next cycle
End of cycle
The figure shows the flow chart for the AUTO mode. Based on the table, one will know
which cycles are being carried out and the meaning of each.
Phase Description
1 Wait for the Start command with SELECT
2 Delay time can be defined in the Configuration
4 Duration of the system zero point adjustment
7 Hold time at the zero point
9 Time to control up to the next step
10 Hold time
22


7 9 10 9 10 9
Set pressure

Pressure unit

Phase 1: It has been vented


(Pressure = 0)
Percentage display of the


current set pressure
First of ten cycles

Operating mode

10 9 10 13 15 16 15 16 15 16 15 16 18
