User manual / Bedienungsanleitung
Verify

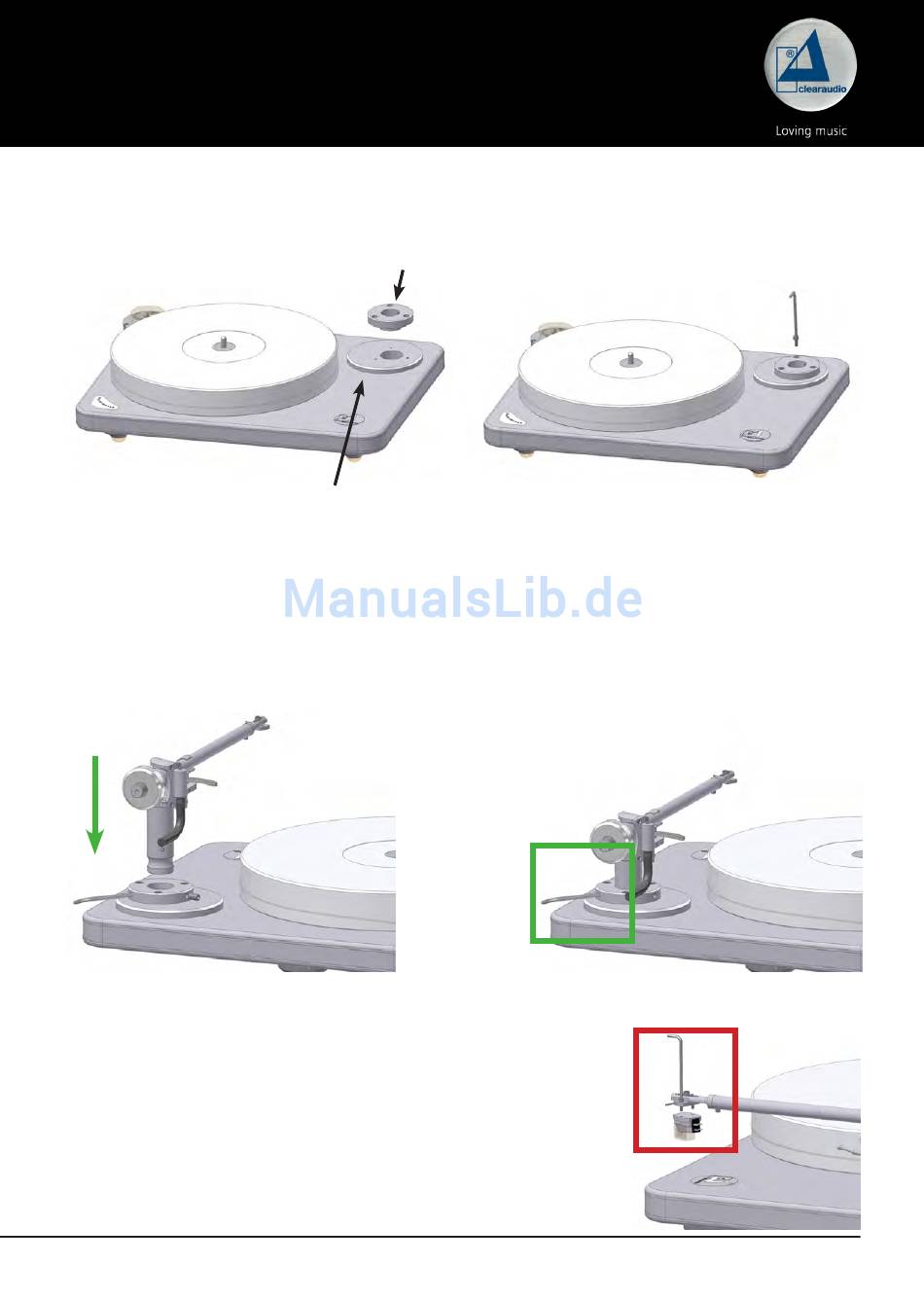

2. tonearm mounting
2.1
Please mount the delivered mounting base with the delivered screws onto your tonearm base
(Pic. 1 and 2).
Tonearm base
Pic. 2: Mounting the tonearm base
2.2
Please carefully put the tonearm through the tonearm base (Pic. 4).
Now fix the tonearm with the 2 screws and the hex wrench (Pic. 5), not to much, so that you can
fine adjust it in the next steps!
Pic. 4: Assembling the tonearm through the tonearm
2.3
Please mount the cartridge according to the manufacturer`s user
manual. Please pay attention that the protection stylus guard is
attached to the cartridge.
Made in Germany
Tonearm mounting base
Pic. 3: Mounting the tonearm base
Pic. 5: Locking the tonearm
5
