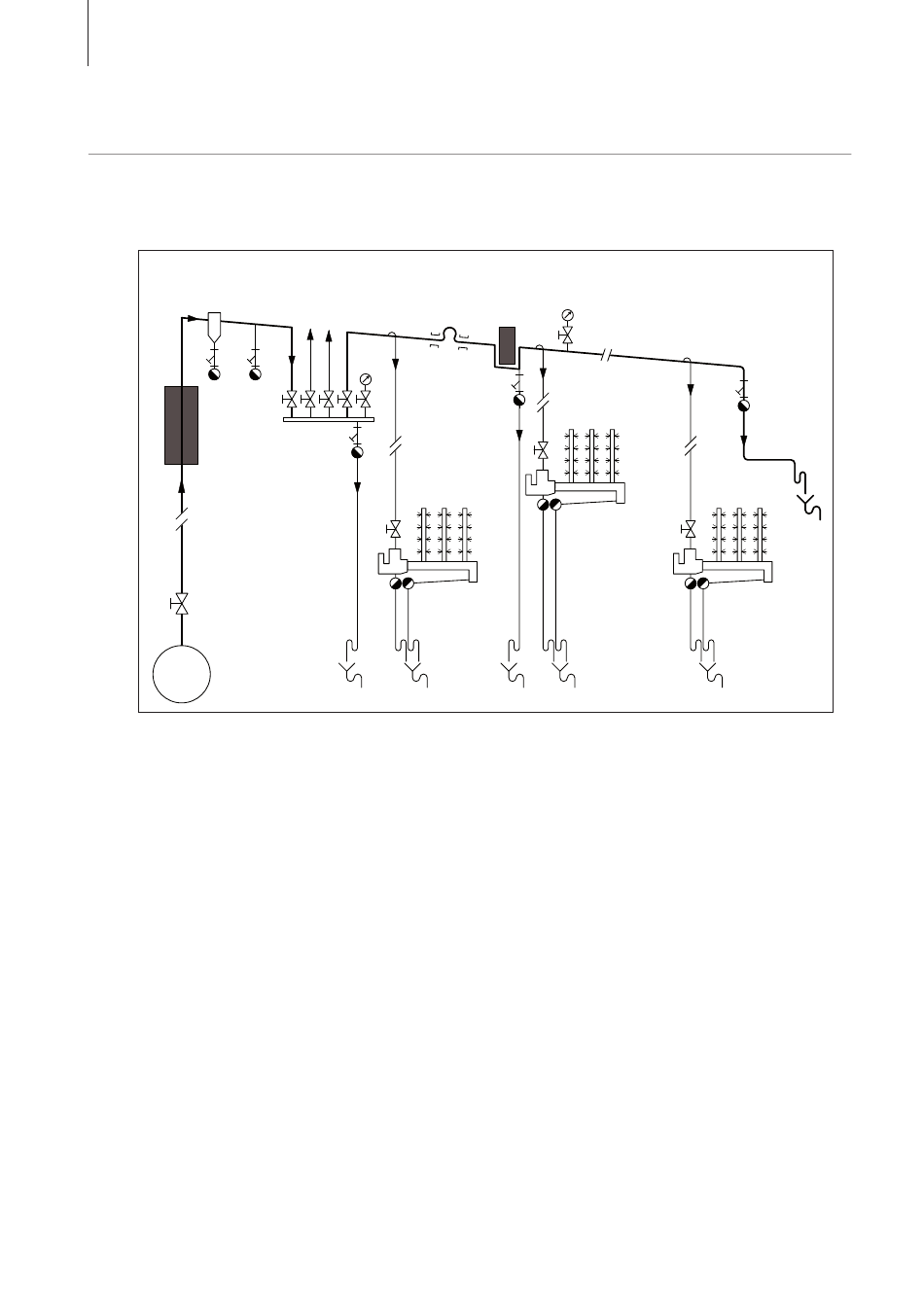

2. General example
8
13
7
12
V
9
11
10
Practitioner checklist
1
Slowly open stop valve in the steam collecting pipe
2
Steam pipe: Saturated steam with approx. 25 m/s
3
Insulation: 30...100 mm
4
Insulate mounts and fittings
5
Install steam dryer (wet steam causes erosion in the lines)
6
Install lines with a downward slope of 1:100 in the direction of flow
7
Drainage with tee
8
Establish a drainage point every 20 to 40 m
9
Size the largest possible steam distributor
10
Drain the steam distributor
11
Install splash guards to increase operational safety
12
Install pressure gages to monitor the steam pressure
13
Steam extraction always on top of the steam pipe
14
Provide expansion joints for the expansion of pipes
15
Arrange sliding and fixed points sensibly
16
Install drain valves at all the deepest points of the steam pipes
17
Drain pipe end
Before startup: Flush machine completely, open and clean fittings, and blow
out the dirt at the deepest points.
12
14
13
15
15
16
11
U
K Steam boiler
T Steam dryer
V Steam distributor
U Consumer
13
11
17
U
U
