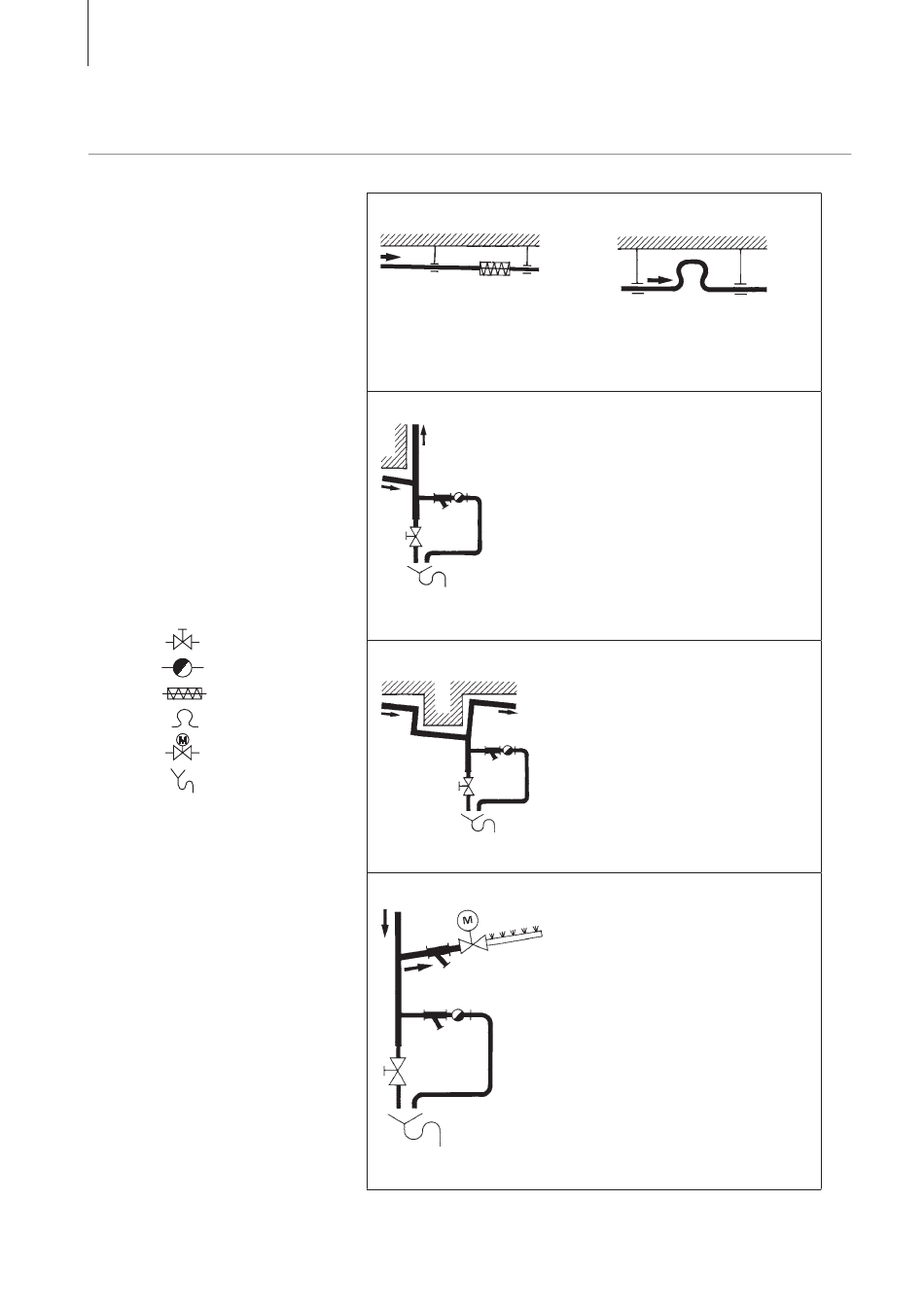

Legend:
= stop valve
= condensate off-take
= expansion joint
= control valve
= discharge
Suspension
Steam pipe supports should be attached at regular intervals. The
steam pipes must run freely and contain line expansions using
expansion joints or tabs.
Rising lines
Rising lines must always be drained at the deepest point.
Line bypasses
Line bypasses must always be drained.
Control valves
Always drain control valves on the primary side.
