27

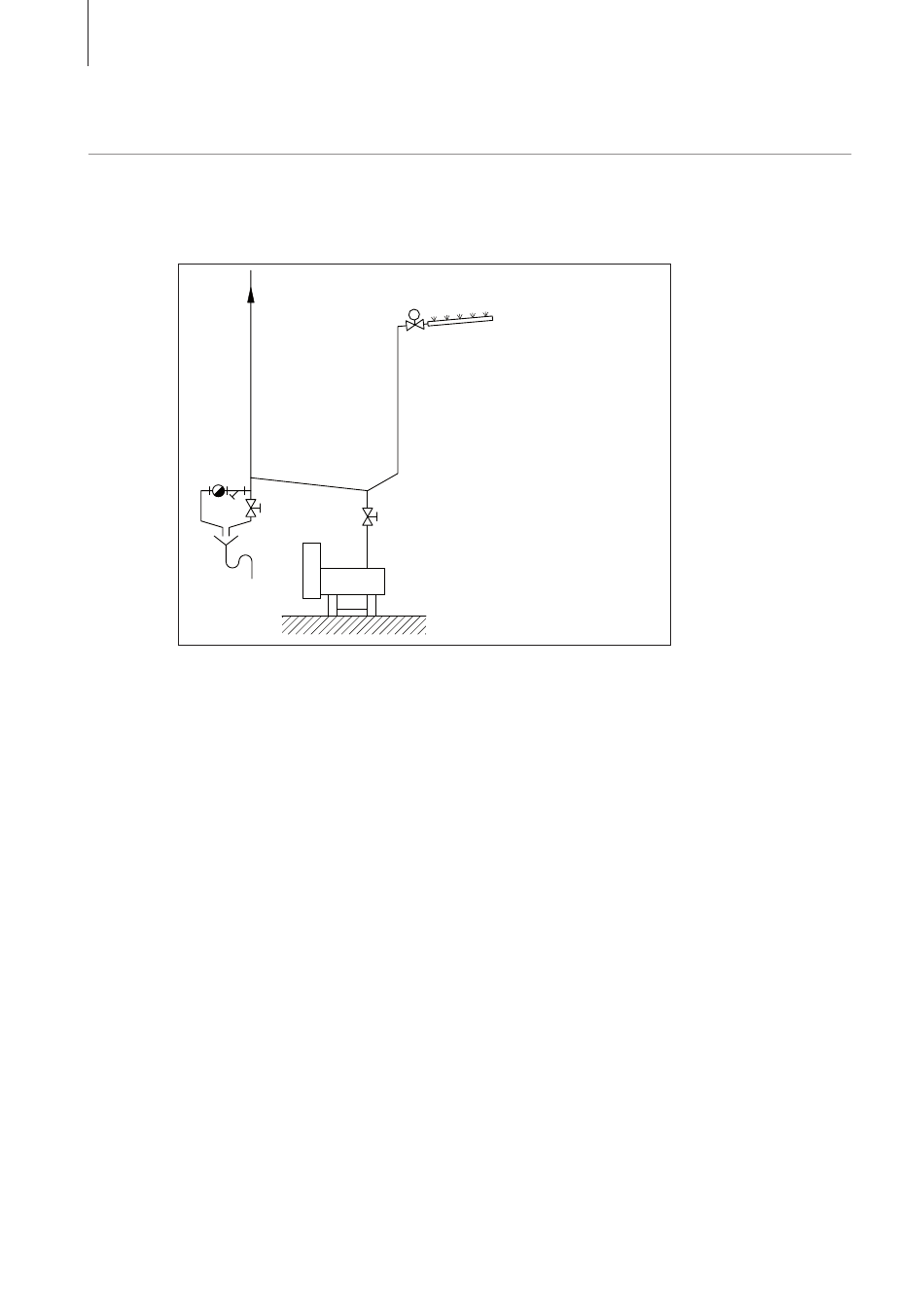

Installation examples
1. Short rising pipes
Select the collecting pipe (2) from or to the steam boiler by one rated width
larger!
Short rising pipes up to max. 6 m (3) without transverse pipes can be
drained backwards to the steam boiler (by way of exception against the
steam's flow direction).
Drain rising pipes above 6 m (4) at the deepest point.
Drain all on-site feed pipes to the humidifier sufficiently (at the respective
deepest points).
4
3
2
1
5
1 Steam boiler
2 Collecting pipe
3 Rising pipe (length <6 m)
4 Rising pipe (length >6 m)
5 Consumer
