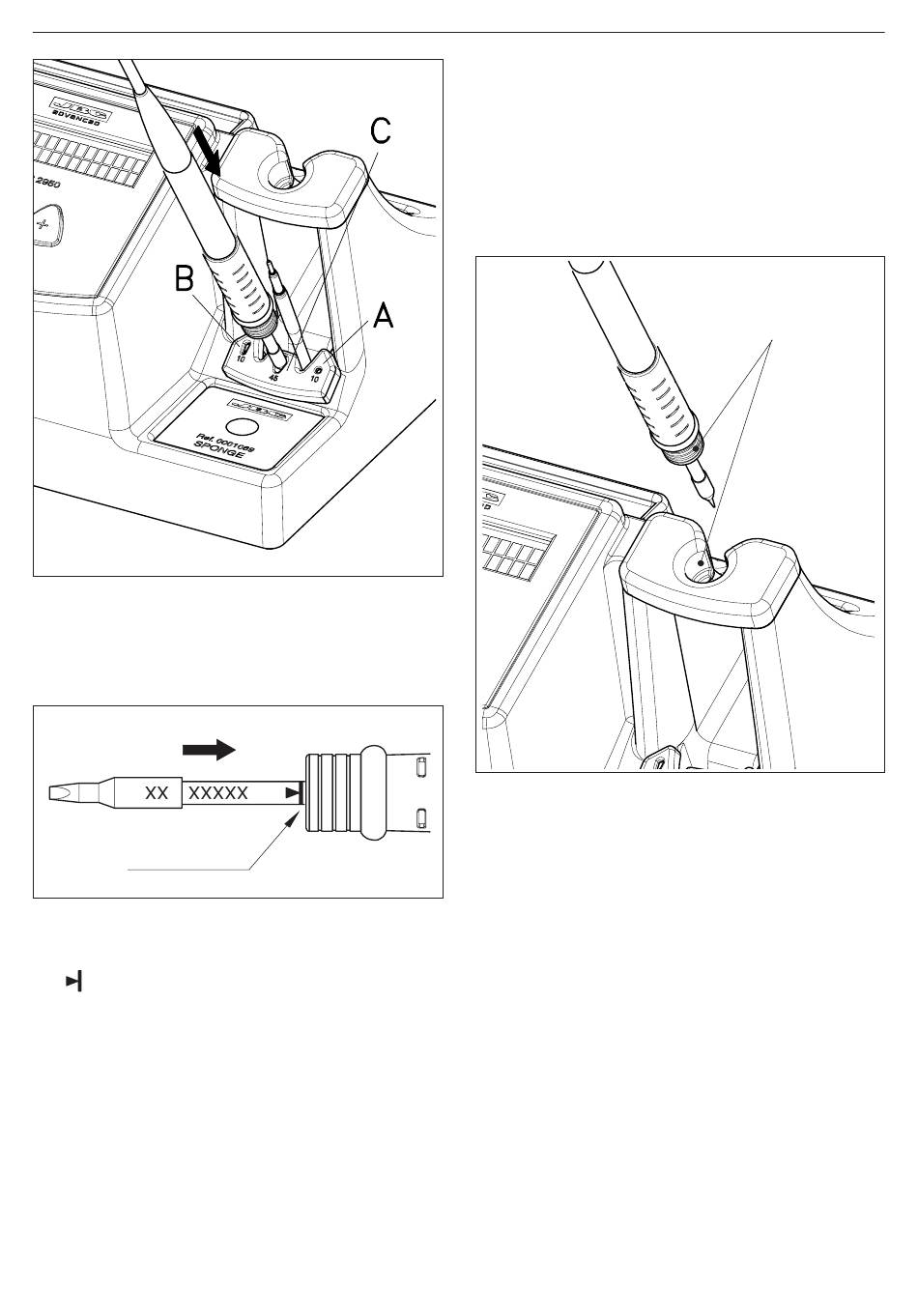

3 - Press the cartridge into the opening A, B or C:
A. For straight 2210 cartridges.
B. For curved 2210 cartridges.
C. For 2245 cartridges.
Alignment
Important.
- It is essential to insert the cartridge till the
end for a good connection. Take the mark
as reference.
Maintenance
When soldering, flux from the solder is condensed
on the metal ring on the handpiece. These residues
are insulating and create false contacts when the
handpiece is on the stand, therefore the sleep
and hibernation features may malfunction.
We recomend the periodic cleaning with a
solvent the metal ring and handpiece support.
The handpiece has a life period and it is normal
that due to wear it might be necessary to
replace it.
7
ENGLISH
Clean periodically
