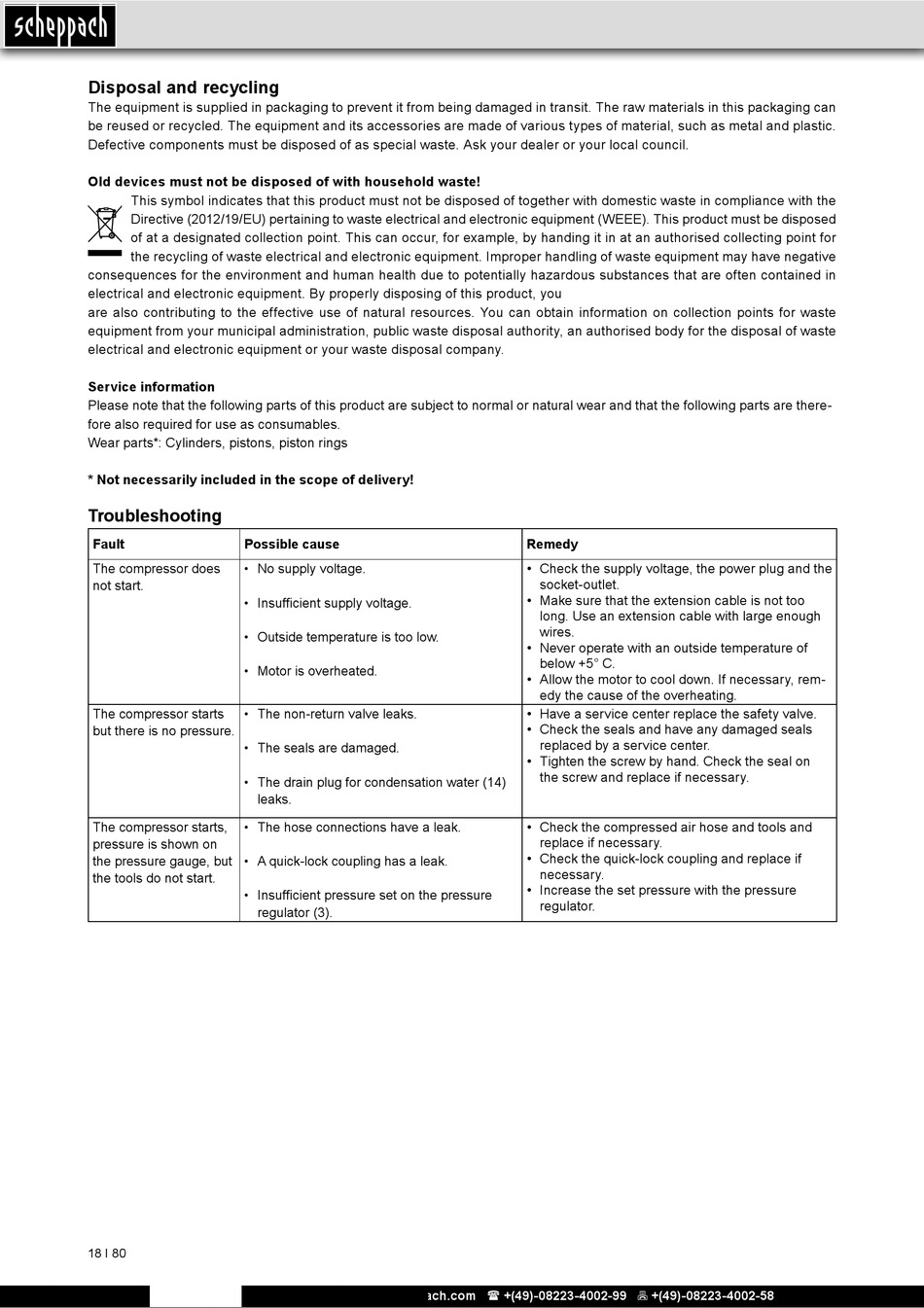

Disposal And Recycling; Troubleshooting - Scheppach HC60 Originalbetriebsanleitung

Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can
be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic.
Defective components must be disposed of as special waste. Ask your dealer or your local council.
Old devices must not be disposed of with household waste!
This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the
Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed
of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for
the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative
consequences for the environment and human health due to potentially hazardous substances that are often contained in
electrical and electronic equipment. By properly disposing of this product, you
are also contributing to the effective use of natural resources. You can obtain information on collection points for waste
equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste
electrical and electronic equipment or your waste disposal company.
Service information
Please note that the following parts of this product are subject to normal or natural wear and that the following parts are there-
fore also required for use as consumables.
Wear parts*: Cylinders, pistons, piston rings
* Not necessarily included in the scope of delivery!

Troubleshooting

Fault Possible cause
The compressor does • No supply voltage.
not start.
• Insufficient supply voltage.
• Outside temperature is too low.
• Motor is overheated.
The compressor starts • The non-return valve leaks.
but there is no pressure.
• The seals are damaged.
• The drain plug for condensation water (14)
leaks.
The compressor starts, • The hose connections have a leak.
pressure is shown on
the pressure gauge, but • A quick-lock coupling has a leak.
the tools do not start.
• Insufficient pressure set on the pressure
regulator (3).
18 І 80
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
Remedy
•
Check the supply voltage, the power plug and the
socket-outlet.
• Make sure that the extension cable is not too
long. Use an extension cable with large enough
wires.
• Never operate with an outside temperature of
below +5° C.
•
Allow the motor to cool down. If necessary, rem-
edy the cause of the overheating.
•
Have a service center replace the safety valve.
• Check the seals and have any damaged seals
replaced by a service center.
•
Tighten the screw by hand. Check the seal on
the screw and replace if necessary.
• Check the compressed air hose and tools and
replace if necessary.
•
Check the quick-lock coupling and replace if
necessary.
•
Increase the set pressure with the pressure
regulator.
