2

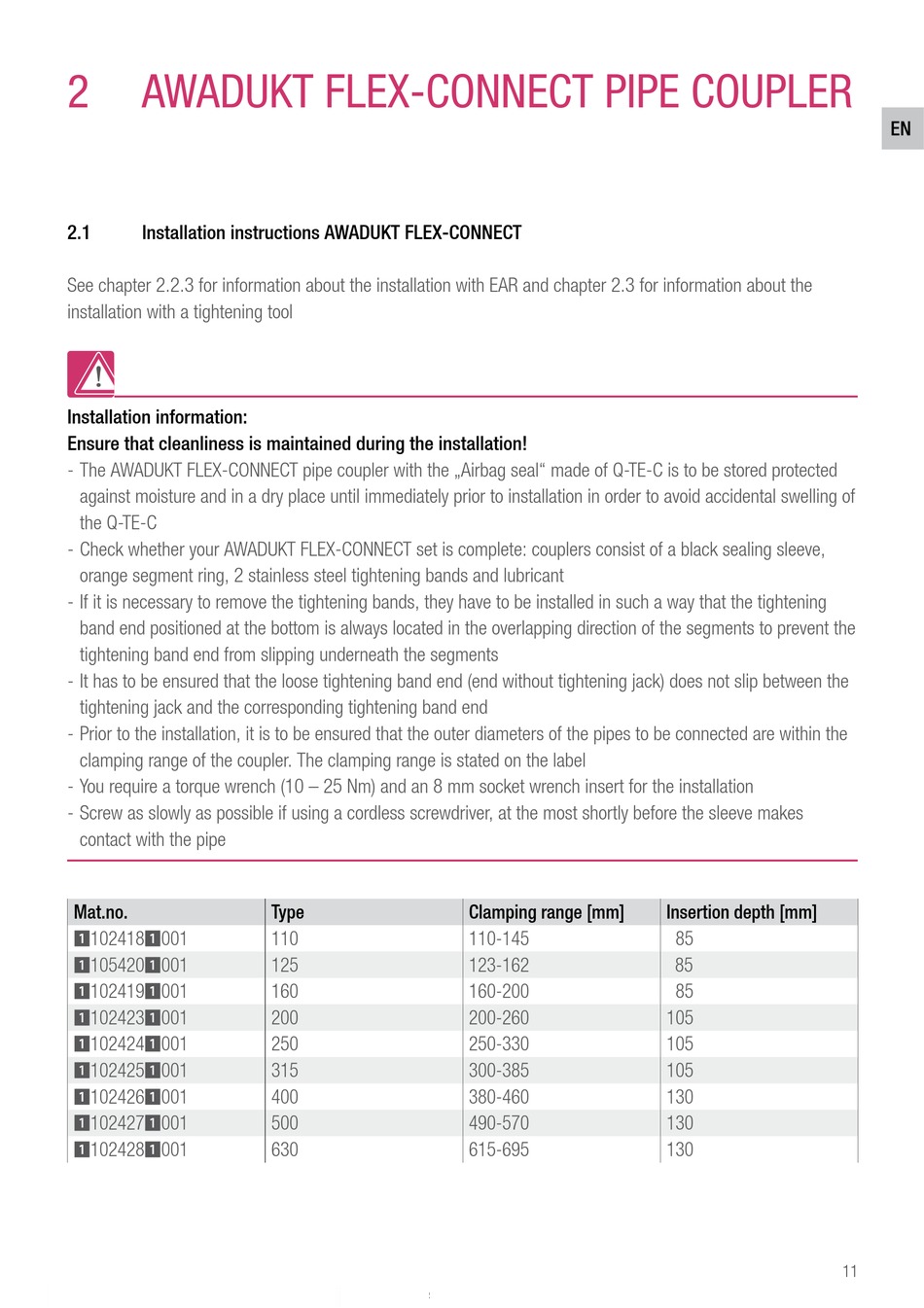

AWADUKT FLEX-CONNECT PIPE COUPLER
2�1
Installation instructions AWADUKT FLEX-CONNECT
See chapter 2.2.3 for information about the installation with EAR and chapter 2.3 for information about the
installation with a tightening tool
Installation information:
Ensure that cleanliness is maintained during the installation!
- The AWADUKT FLEX-CONNECT pipe coupler with the „Airbag seal" made of Q-TE-C is to be stored protected
against moisture and in a dry place until immediately prior to installation in order to avoid accidental swelling of
the Q-TE-C
- Check whether your AWADUKT FLEX-CONNECT set is complete: couplers consist of a black sealing sleeve,
orange segment ring, 2 stainless steel tightening bands and lubricant
- If it is necessary to remove the tightening bands, they have to be installed in such a way that the tightening
band end positioned at the bottom is always located in the overlapping direction of the segments to prevent the
tightening band end from slipping underneath the segments
- It has to be ensured that the loose tightening band end (end without tightening jack) does not slip between the
tightening jack and the corresponding tightening band end
- Prior to the installation, it is to be ensured that the outer diameters of the pipes to be connected are within the
clamping range of the coupler. The clamping range is stated on the label
- You require a torque wrench (10 – 25 Nm) and an 8 mm socket wrench insert for the installation
- Screw as slowly as possible if using a cordless screwdriver, at the most shortly before the sleeve makes
contact with the pipe
Mat�no�
1
1
102418
001
1
1
105420
001
1
1
102419
001
1
1
102423
001
1
1
102424
001
1
1
102425
001
1
1
102426
001
1
1
102427
001
1
1
102428
001
Type
110
125
160
200
250
315
400
500
630
Clamping range [mm]
110-145
123-162
160-200
200-260
250-330
300-385
380-460
490-570
615-695
Insertion depth [mm]
85
85
85
105
105
105
130
130
130
EN
11
