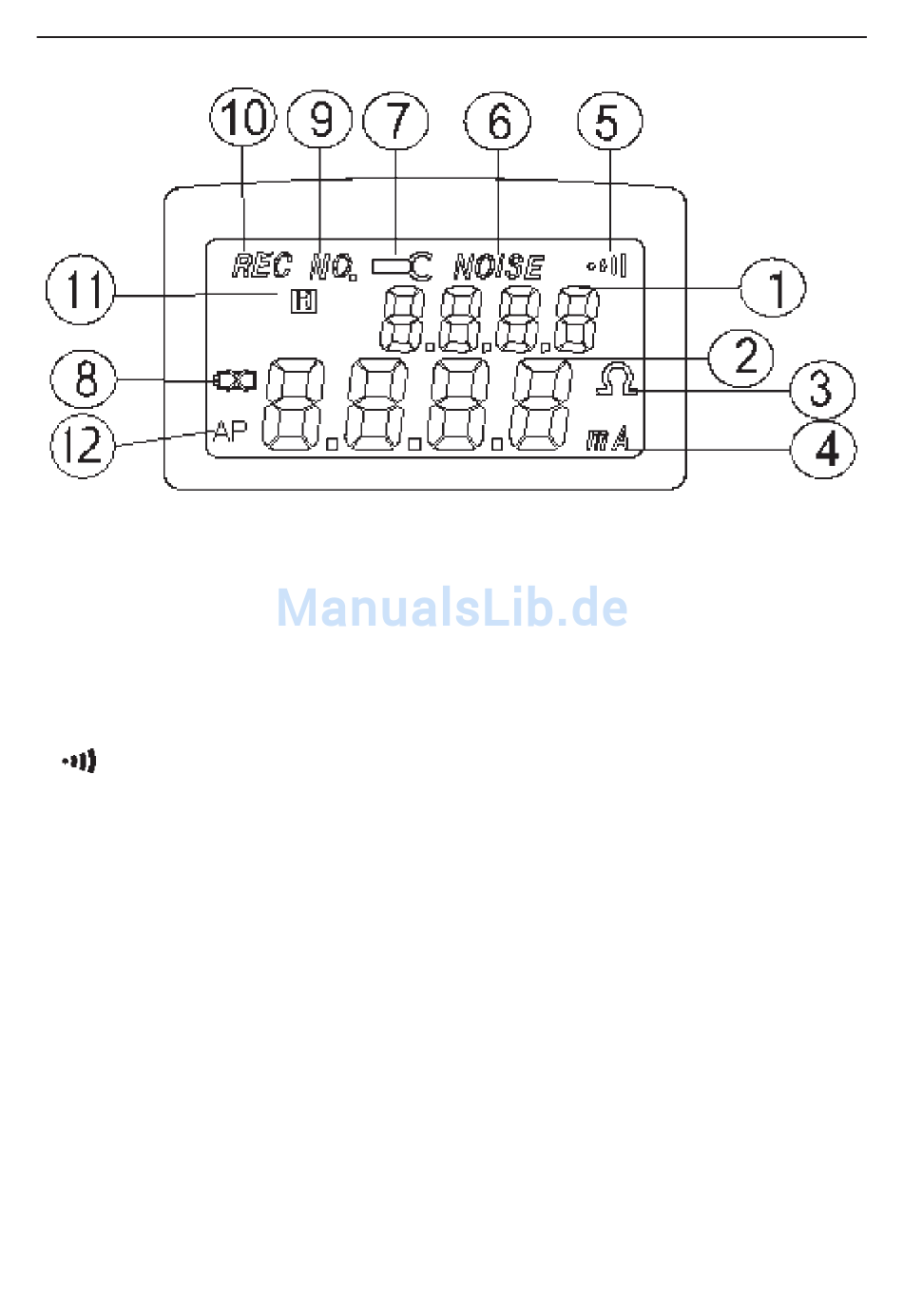

LIQUID CRYSTAL DISPLAY

1. Function
2. Digits
3. Ohm
4. mA
5.
6. NOISE:
7. Jaw Open
8. Low Battery
9. NO.
10. REC
11. H
12. AP
5
Display current selected function or current record number.
Display value from 0 to 9999 with decimal point.
Indicates resistance mode and alarm functions.
Indicates ground leakage current mode in mA or A
Indicates instrument is set at the alarm position.
Indicates ground resistance tester senses noise or excessive
current present in the ground electrode
Displayed if the jaws are opened during the measurement,
this symbol and word OPEN will be shown in LCD.
Indicates battery voltage is lower than required.
Indicates the data record number in memory.
Indicates data logging is in progress.
Indicates "HOLD" function activated
Indicates Auto Power Off activated. Deactivate by holding
down the REC button then turning on unit.
